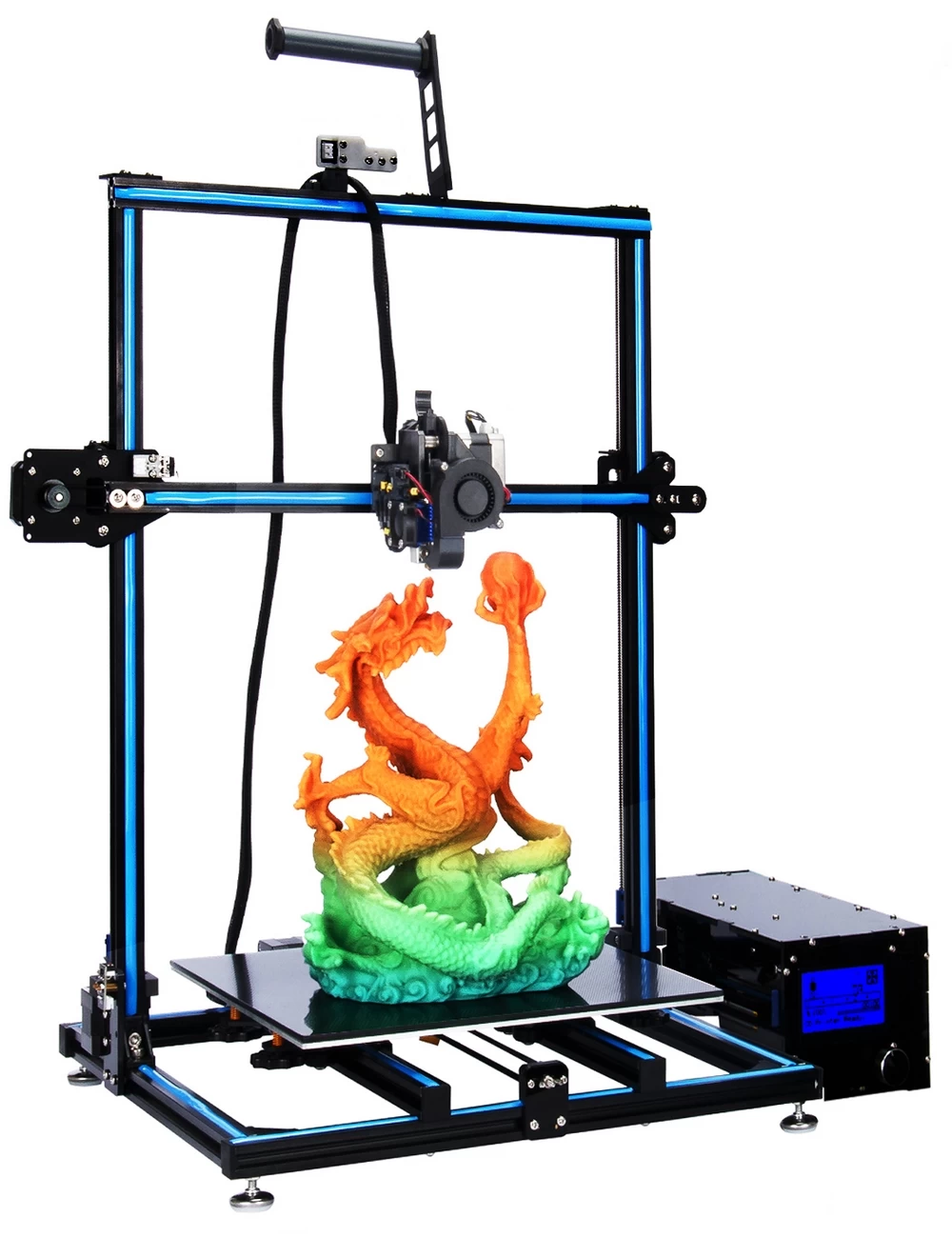

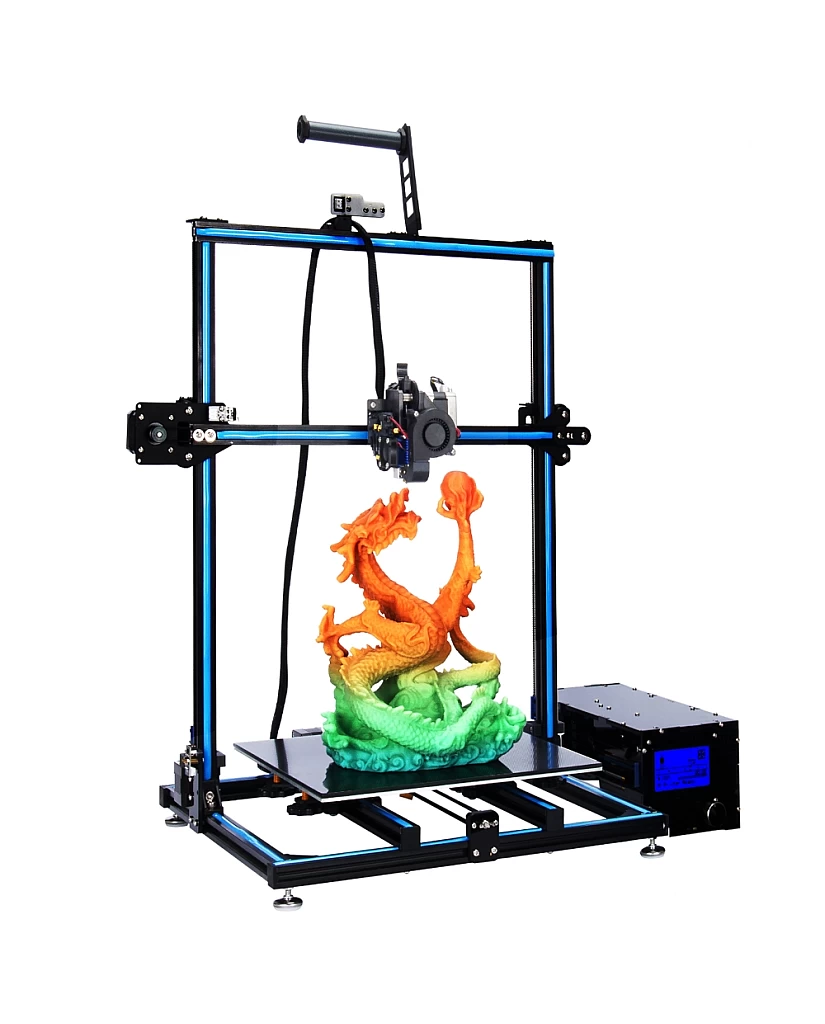

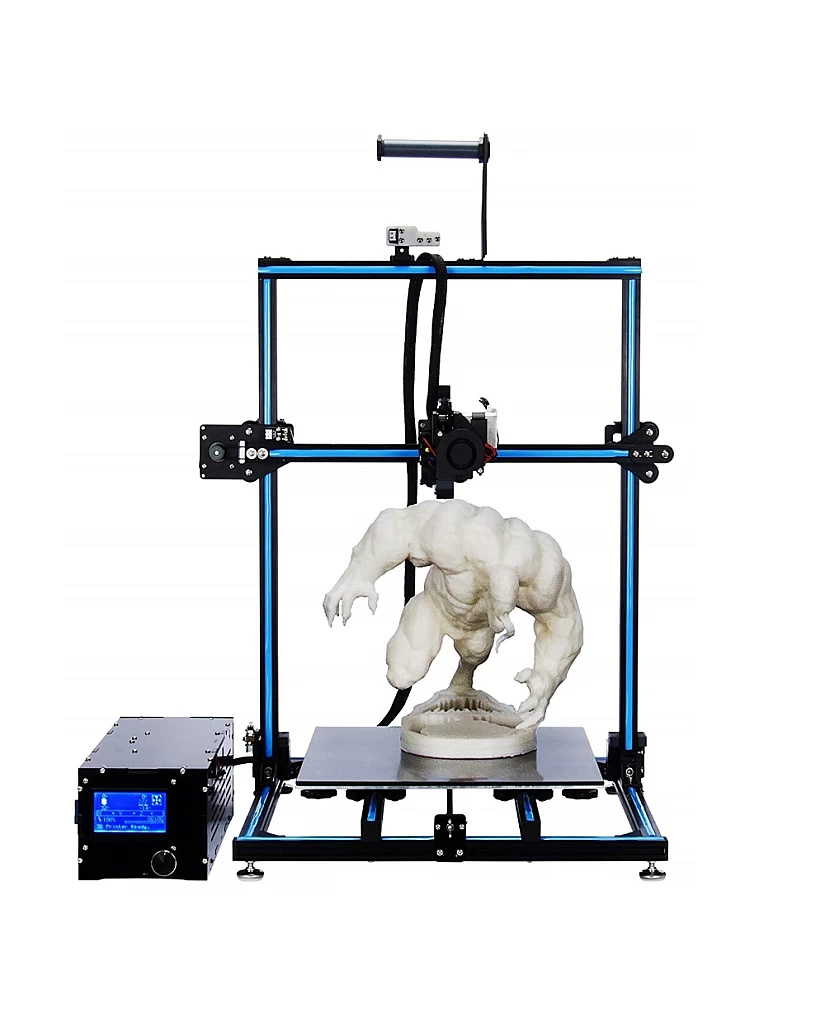

Adimlab Gantry Pro 3D Printer Kit
Product Code: 3DPO-512
Availability: In Stock
$399 USD
$499 USD
5
8
FREE Shipping on lower 48 US States and EU Union Orders above $100!
Main Features:
Technical Parameter:
Frame Type | Aluminum shape gentry double guide rail structure |
Printing technology | FDM |
Colour | Black |
Printing platform | Aluminum base heated bed |
Printing Color | Single color one time. |

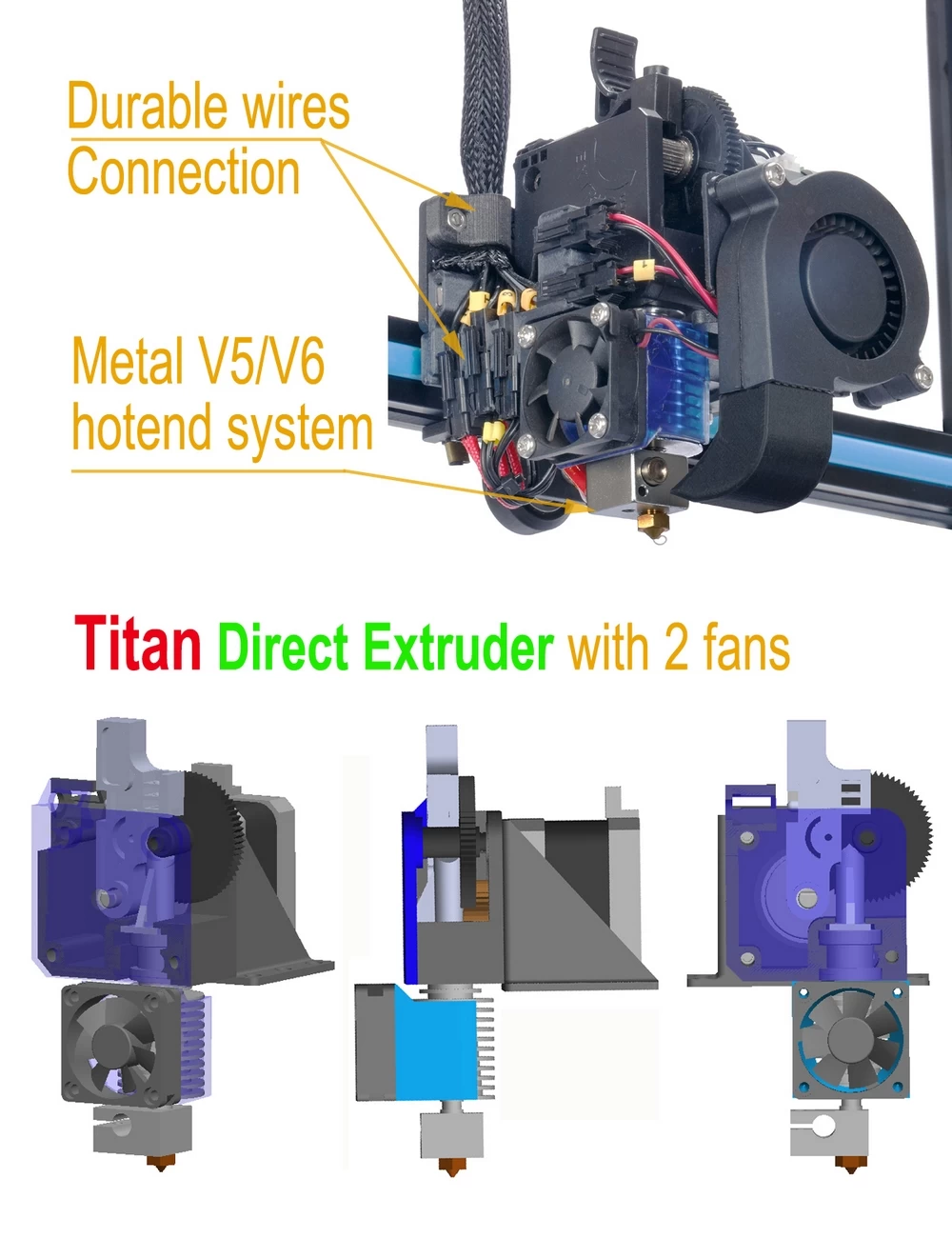

Extruder | Titan Direct extruder. |
Material | PLA, ABS, HIPS, PC, Wood, TPE soft rubber consumables, fluorescent consumables, metal consumables, transparent consumables, polyplus, soft rubber consumables, wax, PLA-CF carbon fiber, TPU consumables, PLUS carbon fiber, PVA water soluble, PETG , Flexible PLA, water soluble consumables, T-PLA, HCPLA and others |
Nozzle diameter | 0.4mm. |
Filament diameter | 1.75mm |
Layer resolution | 0.05-0.3mm |
Max printing Speed | 150 mm/s. |
Max build Volume | 310*310*410mm. |
Positioning accuracy | Z 0.04mm, XY 0.01mm. |
heat bed max.temp | 100°C. |
Extruder max.temp | 260°C |
Power input | 110/220V |
Power Output | 24V |
Connection | SD card or USB. |
Support format | STL,G-Code,AMF,OBJ |
Operating software | repetier-host,CURA |
Operating system | Windows7,10/MAC OS/Linux |
Machine Dimension | 520X 550X 620mm |
Package Dimension | 640X 585X 220mm |
Machine weight | 13KG |
Package weight | 12.5kg. |
Warehouse | Estimated Shipping Time |
---|---|
China Warehouse: | 15 to 25 days |
Product Condition | |
Item Condition | New |
Manufacturer Warranty | One Year |
Technical Specifications | |
Technology | FDM |
Printing Specifications | |
X Y Axis Position Accuracy | XY 0.01mm. |
Z Axis Position Accuracy | Z 0.04mm |
Print size ( X Y Z ) | 310*310*410mm. |
Print Speed | 120 mm/s. |
Layer Resolution | 0.05-0.3mm |
Filament Diameter | 1.75mm |
Nozzle Diameter | 0.4 mm |
Filament Compatibility | PLA, ABS, HIPS, PC, Wood, TPE soft rubber consumables, fluorescent consumables, metal consumables, transparent consumables, polyplus, soft rubber consumables, wax, PLA-CF carbon fiber, TPU consumables, PLUS carbon fiber, PVA water soluble, PETG , Flexible PLA, water soluble consumables, T-PLA, HCPLA and others |
Print in multi color | No |
Mechanical Specifications | |
Chassis | Aluminum shape gantry double guide rail structure |

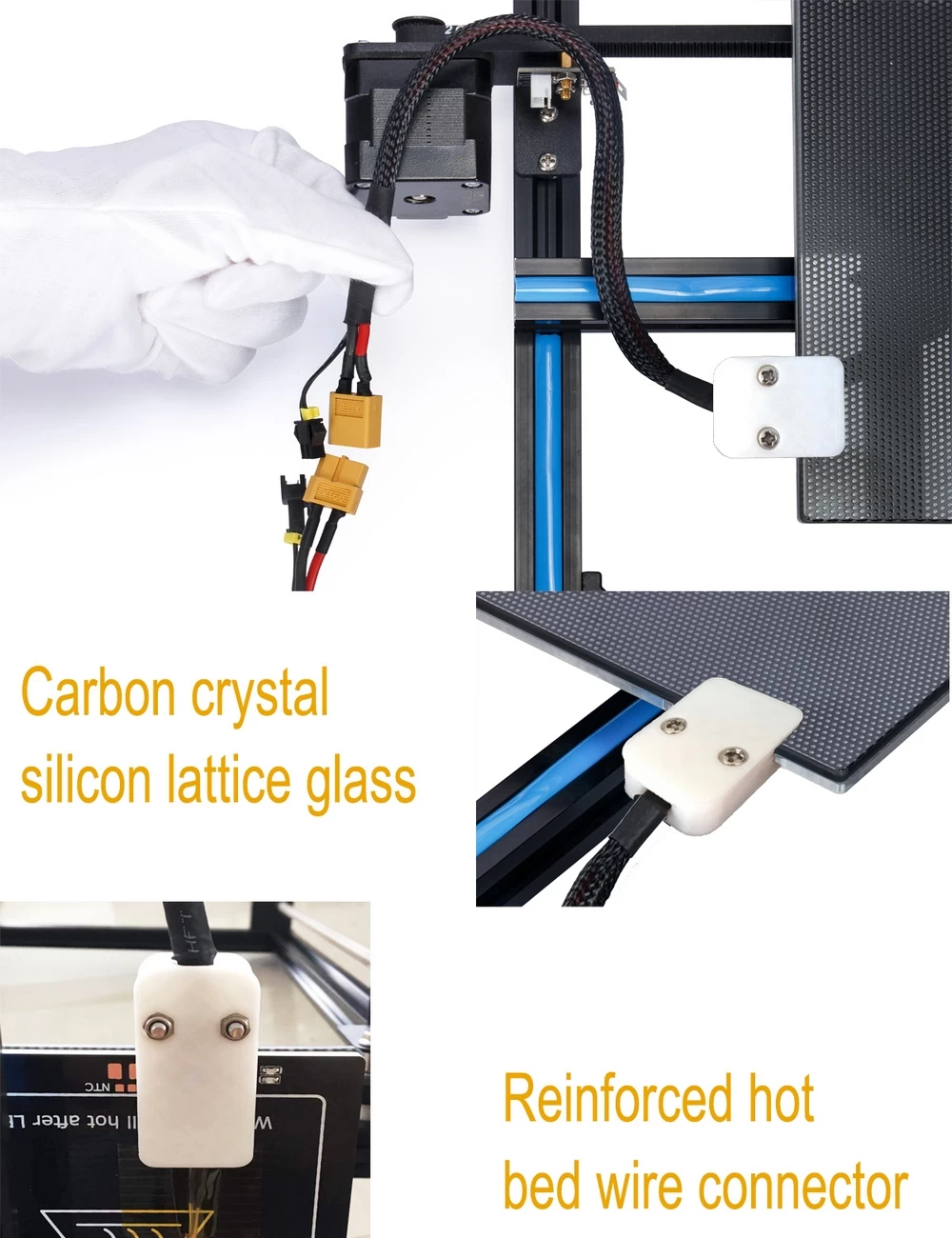

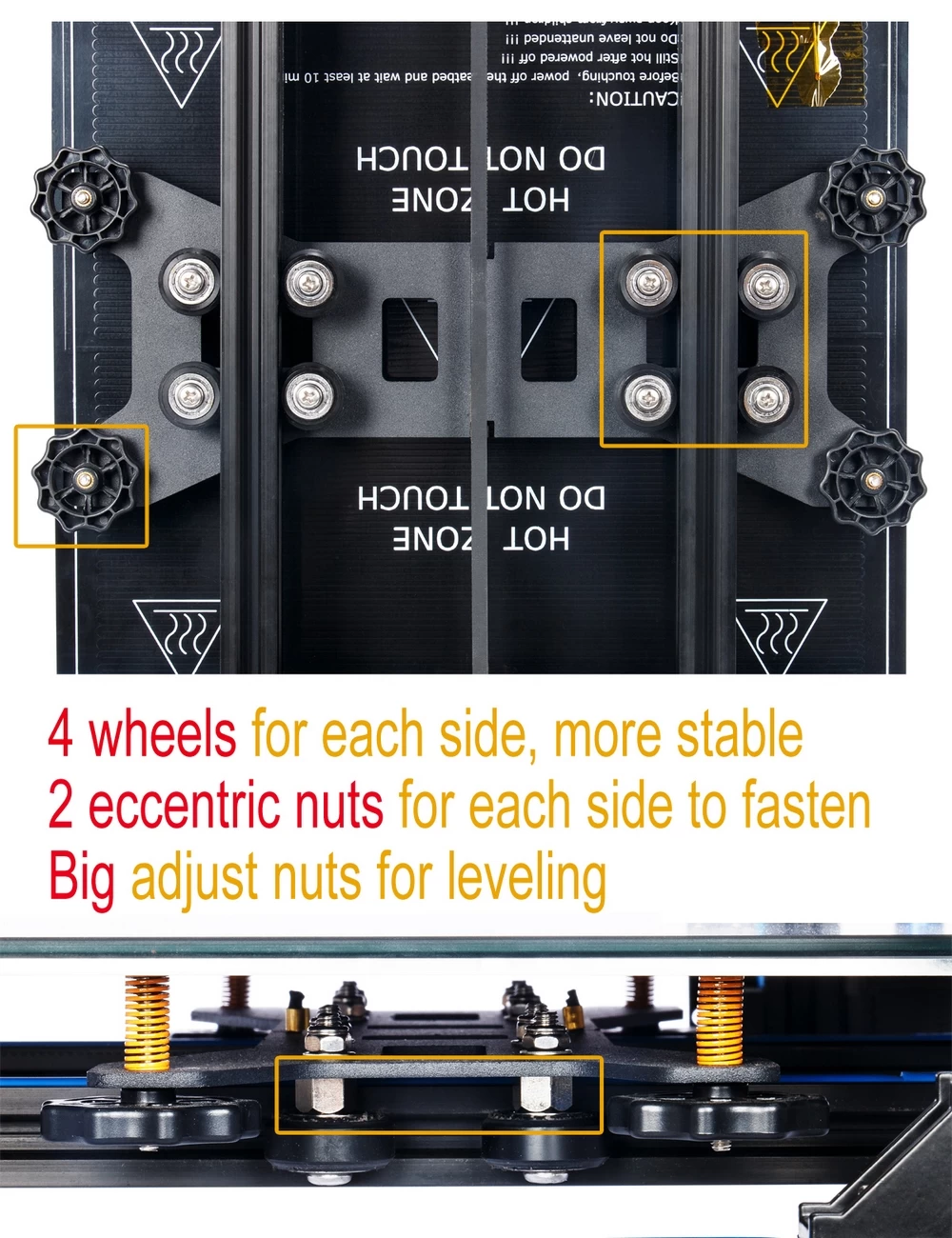

Print Plate (Build Platform) | Aluminum base heated bed |
Software Specifications | |
3D Printing Software | repetier-host,CURA |
Supported File Formats | STL,G-Code,AMF,OBJ |
Operating System | Win/mac/linux |
Temperature Specifications | |
Extruder Temperature | 260 deg C |
Heating Bed Temperature | 100 deg C |
Electrical Specifications | |

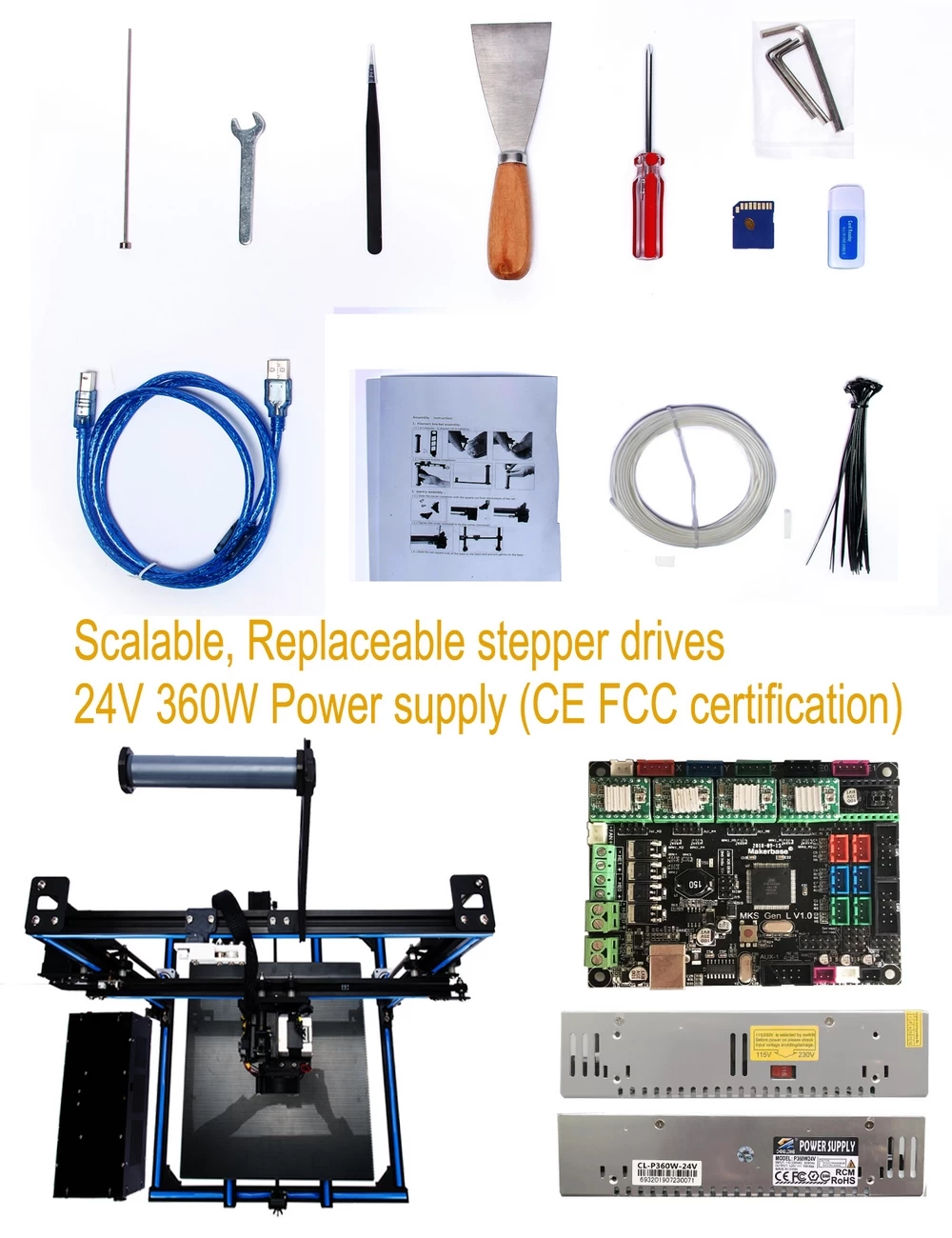

Power Requirements | 110/220V, 360W 24V 15A power supply. |
Connectivity (Interface) | USB or SD Card |
Shipping specifications | |
Machine weight | 13 Kg |
Shipping box weight | 12.5 Kg |
Machine Dimensions | 520X 550X 620mm |
Shipping box dimensions | 640X 585X 220mm |
Shipping Location | China |
Lead Time (Processing/Handling Time) | 5 Business Days |
