In the ever-evolving world of manufacturing, two prominent production methods stand out: injection moulding and 3D printing. Understanding the key differences, advantages, and limitations of both can help manufacturers make informed decisions about which process best aligns with their needs.
In this guide, 3E Rapid Prototyping Limited will provide a comprehensive comparison between injection moulding and 3D printing, covering aspects such as cost, production speed, design flexibility, material options, and sustainability.

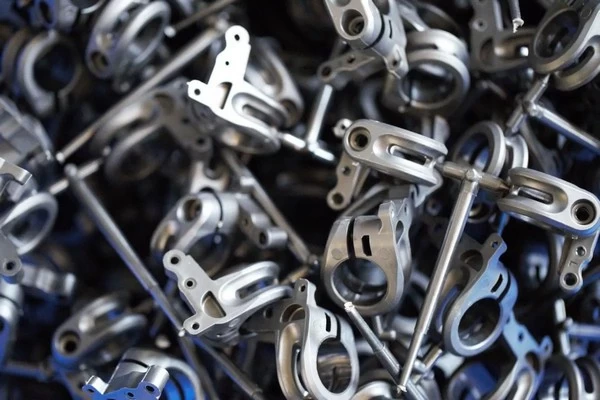

What is Injection Moulding?
Injection moulding is a manufacturing process that involves injecting molten material, typically plastic, into a mould cavity under high pressure. Once cooled, the material solidifies into the desired shape, which is then ejected from the mould.
How Does Injection Moulding Work?
The injection moulding process consists of several key steps:
- Clamping – The mould is securely closed using a clamping unit to withstand the pressure of the injected material.
- Injection – Molten plastic is injected into the mould cavity under high pressure.
- Cooling – The material cools and solidifies into the desired shape within the mould.
- Ejection – The solidified part is ejected from the mould.
- Post-processing (if applicable) – Trimming and additional finishing steps may be required.
What Are the Most Common Materials Used in Injection Moulding?
- Thermoplastics – ABS, Polypropylene, Polyethylene
- Thermosets – Materials that harden permanently after moulding
- Elastomers – Rubber-like materials offering flexibility and durability

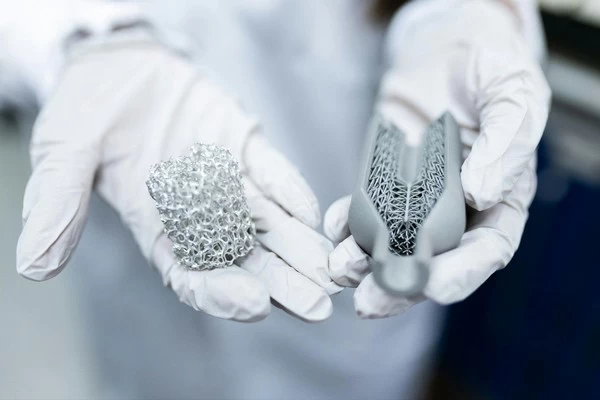

What is 3D Printing?
3D printing, also known as additive manufacturing, is a process that builds objects layer by layer using digital 3D models. Unlike traditional subtractive manufacturing methods, 3D printing allows for greater design flexibility and the production of complex geometries without the need for expensive moulds.
How Does 3D Printing Work?
The 3D printing process follows these steps:
- 3D Model Preparation (CAD design) – A digital model is created.
- Slicing Software and G-code Generation – The model is sliced into layers and converted into machine-readable instructions.
- Printing Process – The printer deposits material layer by layer to form the object.
- Post-processing – Support removal, surface finishing, and additional refinements.
What Are the Most Common Materials Used in 3D Printing?
- Thermoplastics – PLA, ABS, PETG, Nylon
- Resins – Standard, Tough, Flexible
- Metals – Stainless Steel, Titanium, Aluminum
- Ceramics and Composites
How to Decide Which Manufacturing Process is Best for Your Needs?
Consider the following:
- Budget – Initial investment vs. per-unit cost
- Production Volume – Small batches vs. mass production
- Material Requirements – Industrial-grade materials vs. specialized options
- Complexity of Design – Simple shapes vs. intricate geometries
- Lead Time Constraints – Quick iterations vs. tooling lead times
What Are the Industries That Use Injection Moulding and 3D Printing?
Industries Using Injection Moulding
- Automotive – Interior components, housings
- Medical – Syringes, surgical instruments
- Consumer Electronics – Phone cases, appliance parts
- Packaging – Bottle caps, food containers
Industries Using 3D Printing
- Aerospace – Lightweight parts, functional prototypes
- Healthcare – Prosthetics, dental implants
- Jewellery and Fashion – Intricate designs, custom accessories
- Engineering – Rapid prototypes, tooling
Conclusion
Both injection moulding and 3D printing have their strengths and ideal applications. The choice depends on factors like production volume, budget, material needs, and design complexity. Manufacturers can even combine both technologies to optimize efficiency and flexibility in their production processes.
Aleena (Author)
