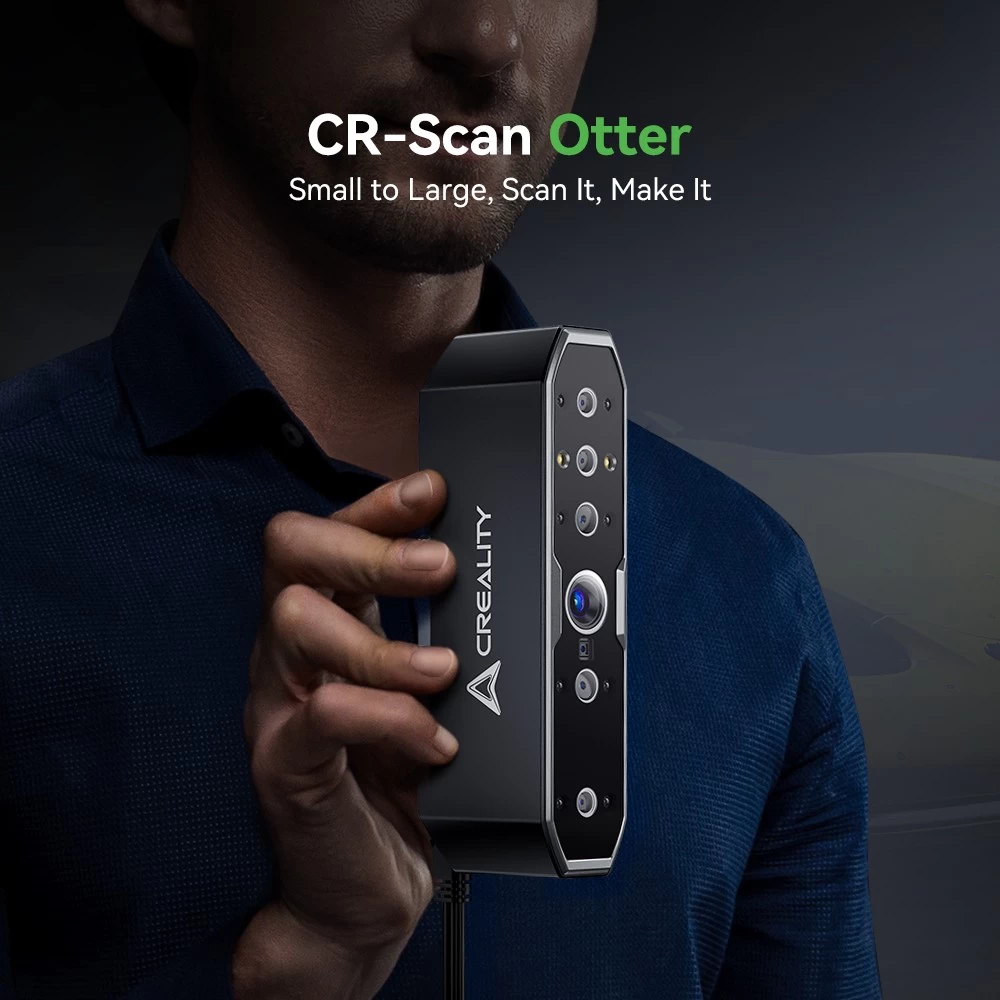

Creality CR-Scan Otter 3D Scanner

Creality CR-Scan Otter 3D Scanner

Features:

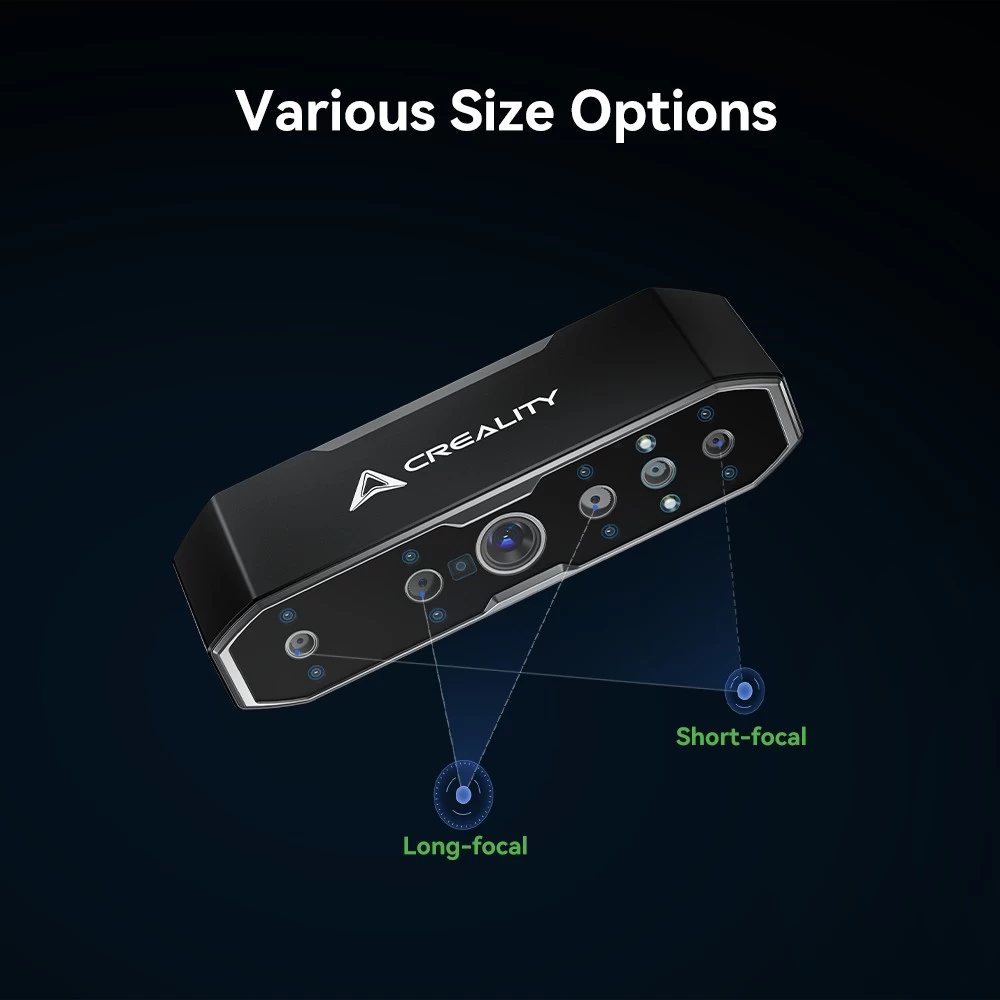

• Capture SMALL & BIG Objects: With both long-focal and short-focal dual lenses, our scanner can capture objects ranging from 10 x 10 x 10mm to 2000 x 2000 x 2000mm in size, from coins to cars. With a scanning distance of 110mm to 1200mm, it offers a wide field of vision and exceptional detail, effectively capturing objects of various sizes
• Ultra-High Precision: The Otter utilizes a state-of-the-art structure-light stereo-matching algorithm and optical design to faithfully reproduce the authentic texture and contours of objects. With scanning precision up to 0.02mm, every detail is captured with sharp clarity
• Smooth Scanning: With 8 Infrared LEDs, 2 white LEDs, 4 Stereo Depth Cameras, and 1 RGB Camera, Otter features an efficient scanning speed of up to 20 fps. Utilizing One-Shot 3D imaging technology, it offers stabilization and reduces tracking loss. With higher environmental adaptability and excellent performance even in sunlight (<30000 lux), it offers reliable scanning in various outdoor conditions

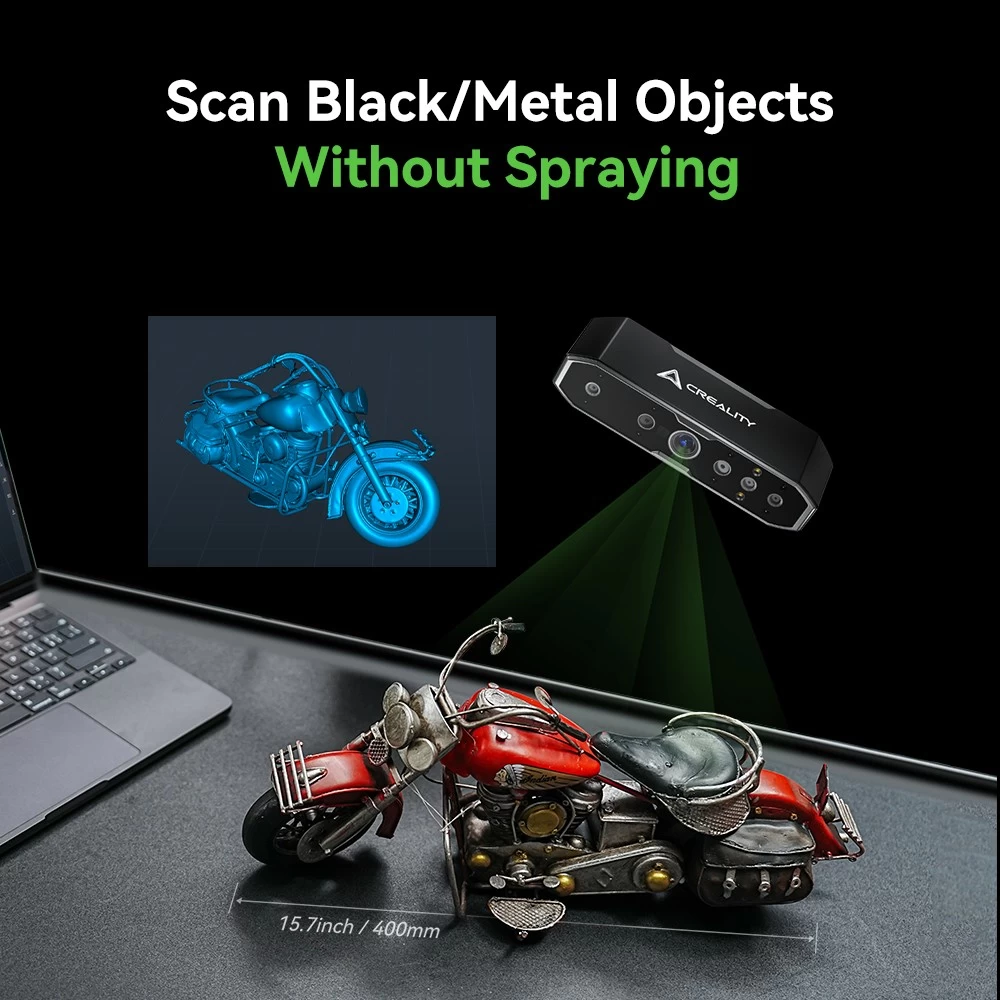

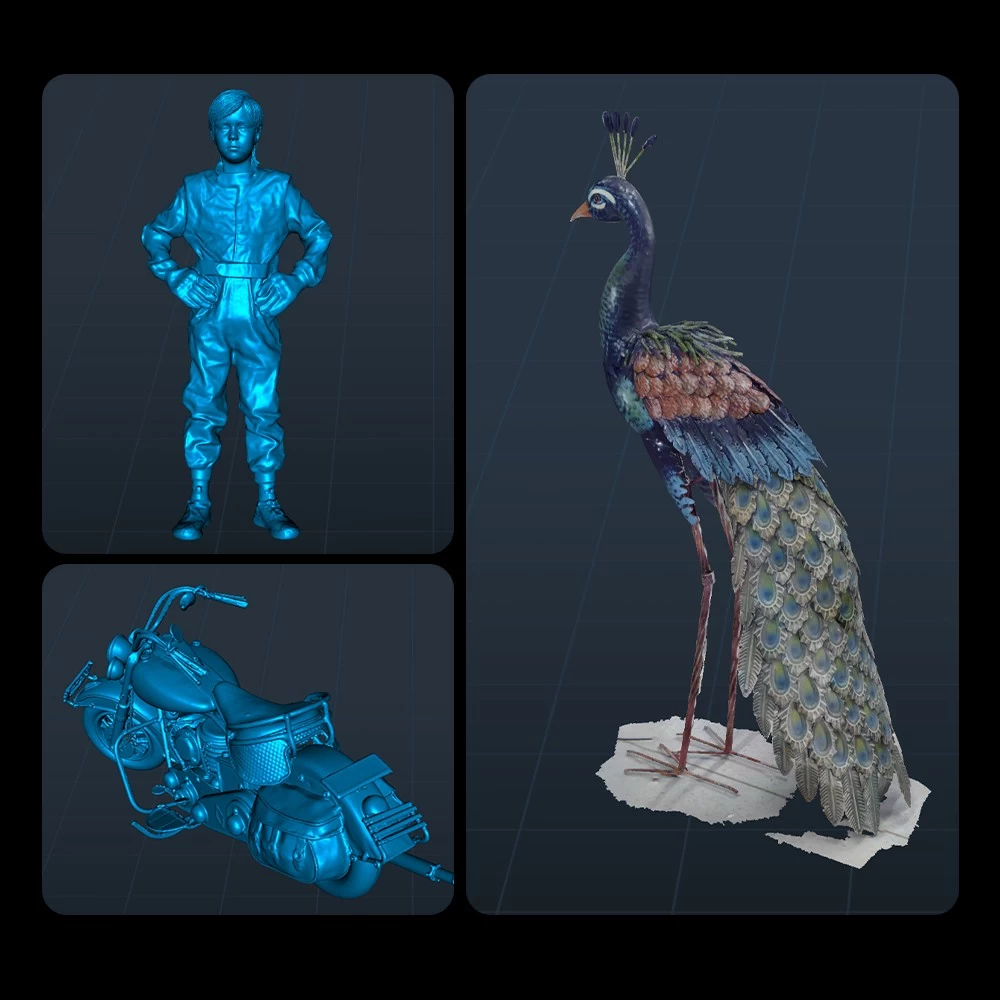

• True to Life: This scanner enables easy scanning of black/metal objects like cars, car parts, and tires without the need for scanning spray. Equipped with a million-pixel full-color RGB camera and exclusive color mapping algorithm, it ensures exceptional capture of model details and colors, even in low-light environments, faithfully reproducing the color and texture of objects

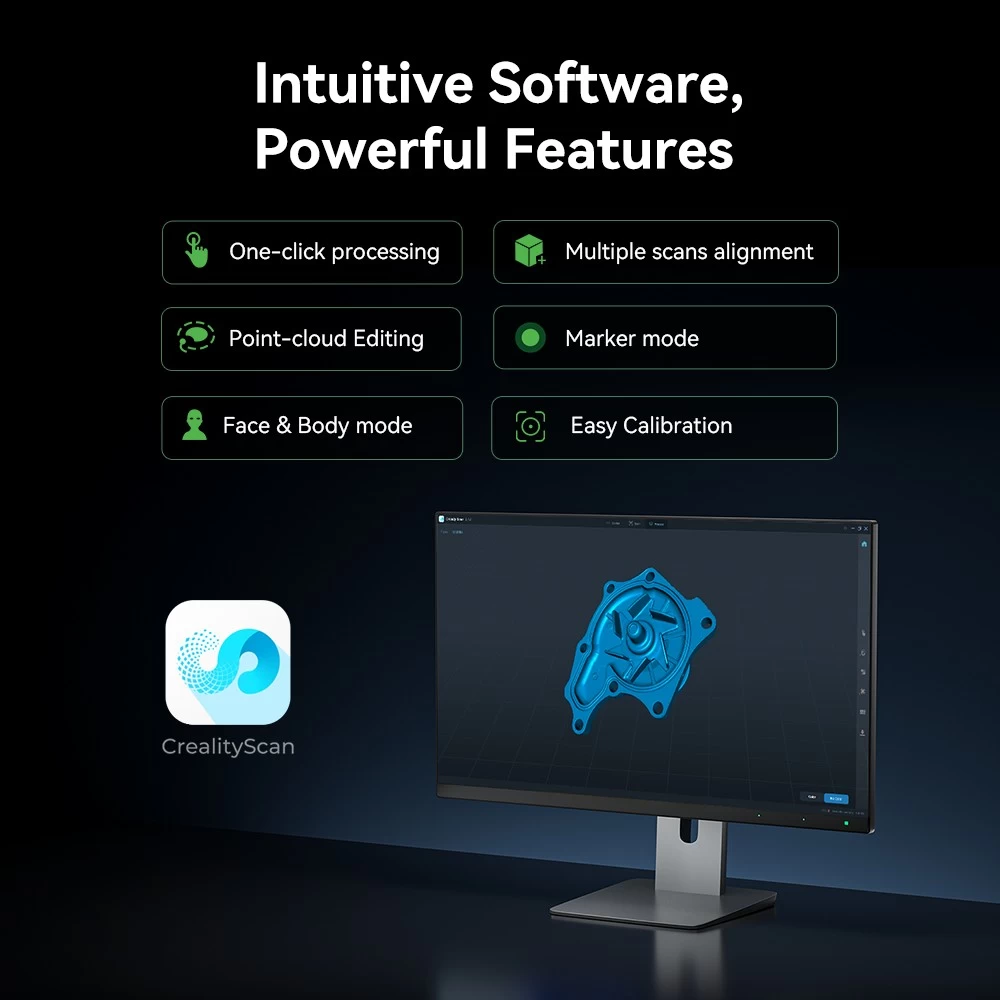

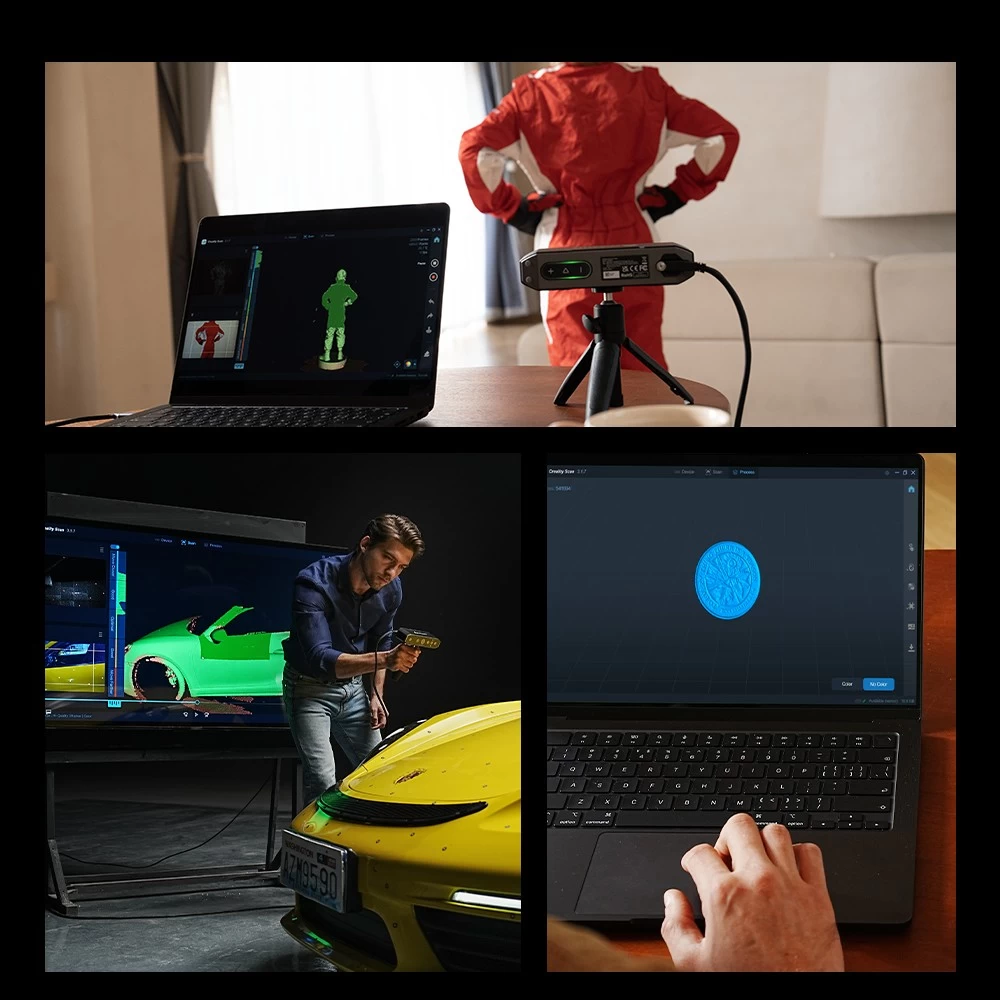

• User-Friendly: Compatible with Windows and macOS, Otter offers easy wireless scanning for iOS and Android (Use with accessories). Three touch-sensitive buttons allow for easy scan control, including starting/pausing scans and adjusting the depth camera's exposure on the go, ensuring precise scanning

Technical Specs:

• Accuracy: Up to 0.02mm @ 60mm
• 3D Resolution: 0.05-2mm
• Scanning Speed: Up to 20fps
• Min. Scan Volume:10mm x 10mm x 10mm
• Single Capture Range: Max. 1350x840mm@1000mm
• Technology: Infrared structured light
• Working Distance: 110mm-1000mm
• Color Mapping: YES
• Alignment Modes: Geometry/Marker/Texture
• Output Format: OBJ/STL/PLY
• IMU: YES
• Color Supplemental Light: 2 white LEDS
• Marker Recognition Enhancement: 8 infrared LEDs
• Laser Safety: Class I (eye safe)
• System Support: Windows/macOS(*Wireless scanning accessories are required for iPhone iOS/Android)
• Buttons: Touch
• Audible prompt: Yes
• Calibration board: Yes
• Operating Temperature: -10°C to 40°C
• Operating Humidity: 0-90% RH
• Input Power: 5V 3A
• Data Interface: Type C/USB3.0/USB2.0
• Device Dimensions: 165mm×37mmx59mm
• Device Weight: 390g
