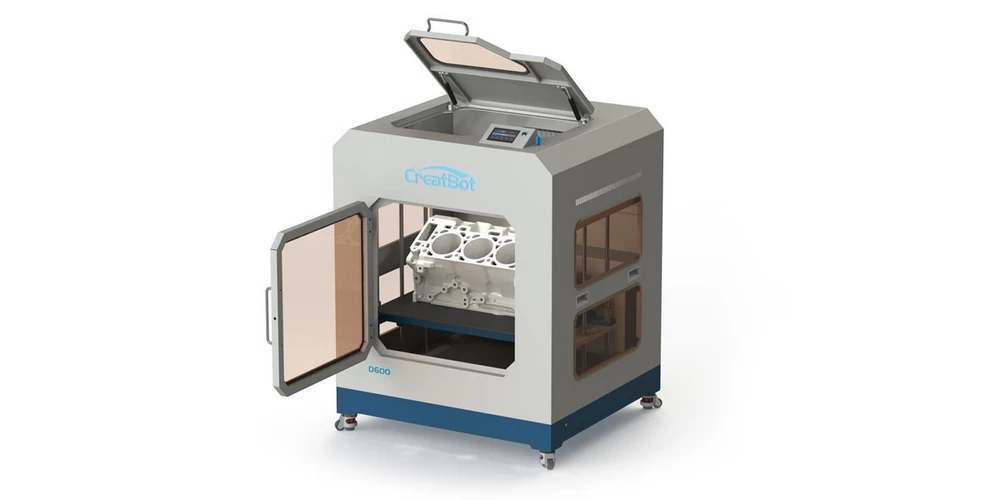

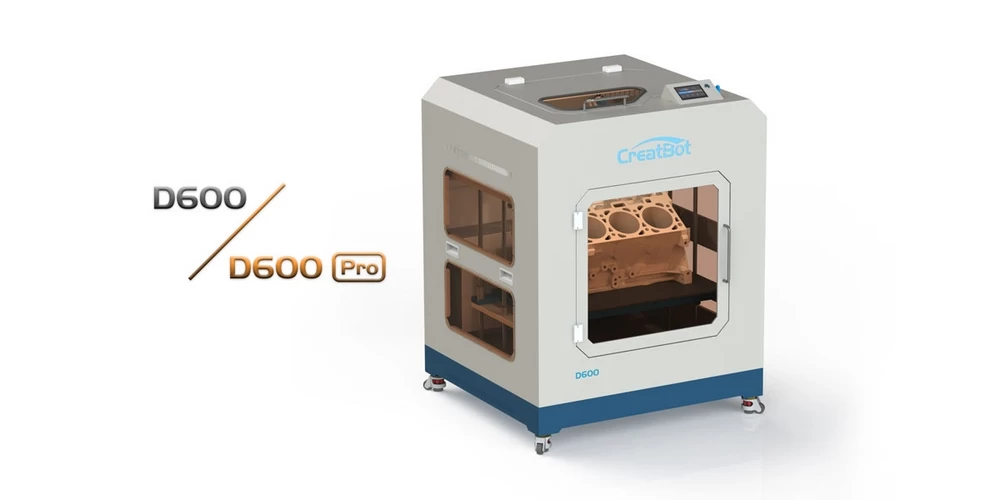

Creatbot D600 / D600 Pro Industrial Dual Extruder 3D Printer
The CreatBot D600 is truly an impressive manufacturing machine. Its super large and completely closed build space of 600 x 600 x 600 mm is perfect if you like to process advanced filaments like PEEK, Ultem, Nylon, PC or other thermoplasts that need high-temperatures (for example ABS). Realize industrial FFF / FDM 3D prints of complex parts. This is possible due to its dual extruder. Simply 3D print with one filament for the object and a support material for overhangs.
- Latest version uprades : Emergency switch, HEP Air Filter, Full Close loop servo motors. New!
- Super large building volume of 600*600*600mm
- High precision up to 0,01 mm
- Dual and Triple-extruders
- Fully enclosed building chamber
- Nozzle temperature up to 400° C
- High precision manufacturing
- Complete steel-body for high stability and sustainability
- Industrial linear guide rail which is key to high manufacturing quality
- Power failure-safe
- Easy to navigate touch screen

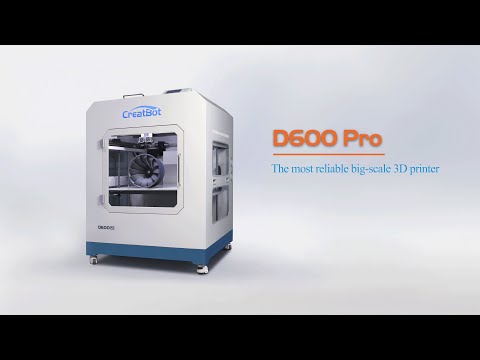

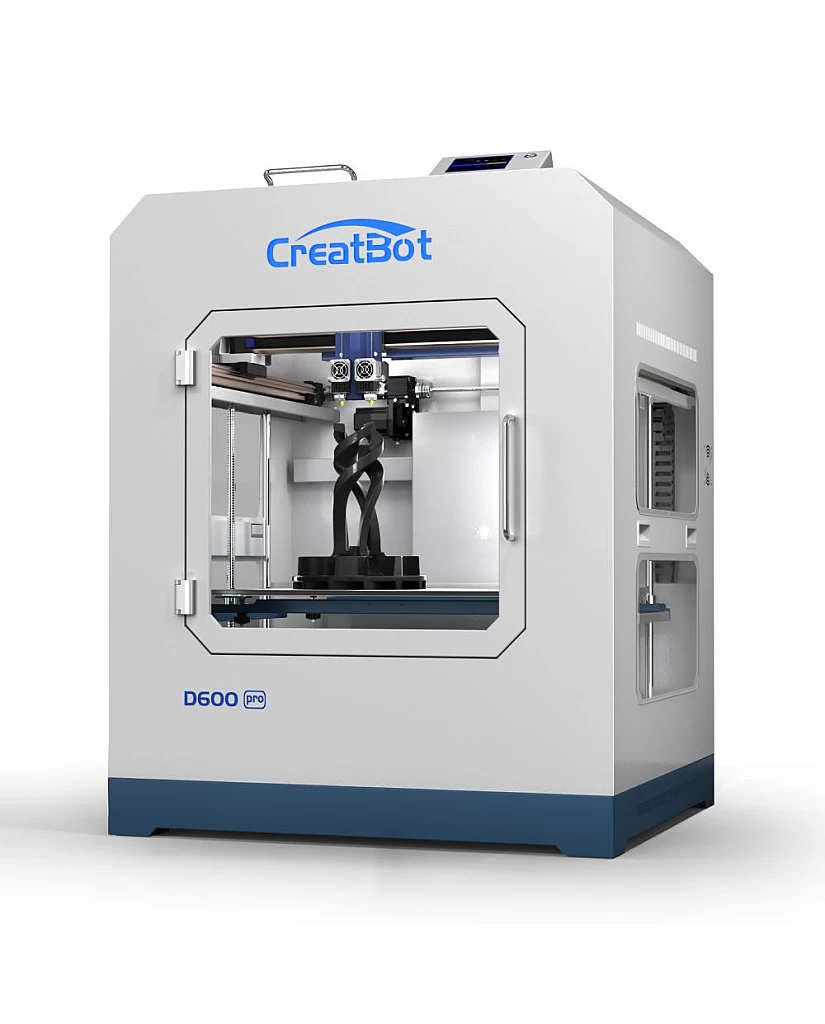

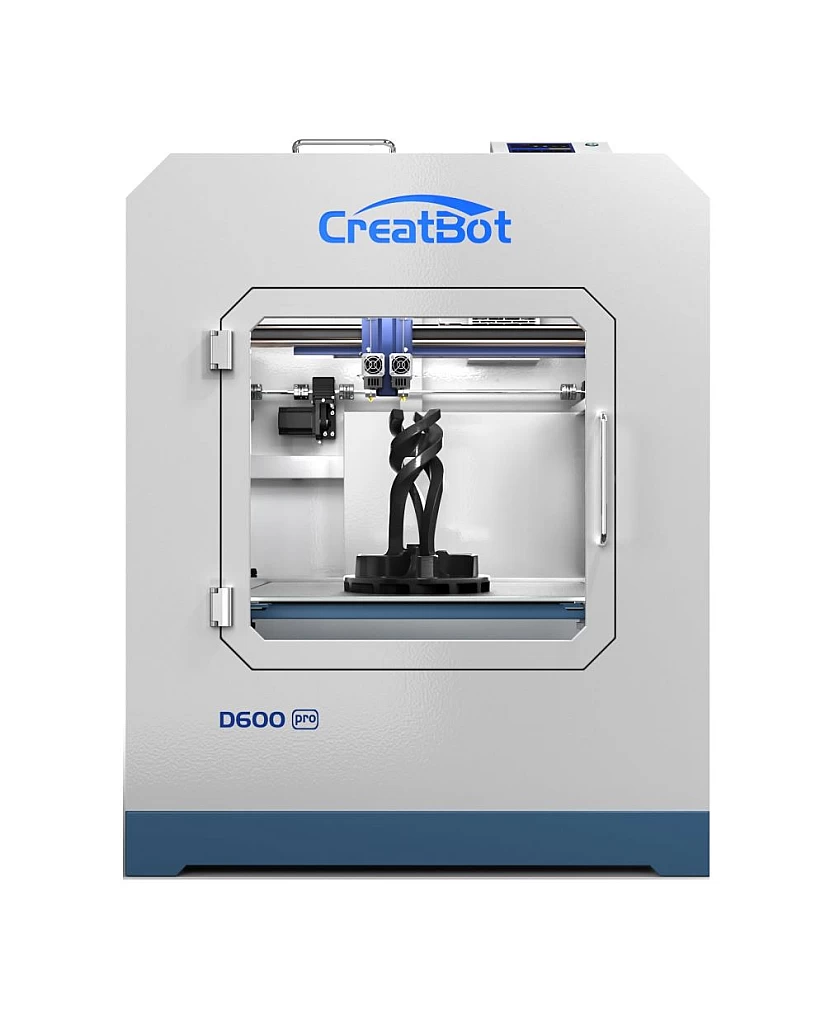

Industrial 3D printer CreatBot D600 Pro – 3D print very large and complex parts and objects
3D print with the CreatBot D600 Pro very large and complex parts and objects. The D600 Pro is an industrial high temperature 3D printer with a very high manufacturing quality and enormously large heated installation space (60x60x60 cm). The all-metal frame always offers you smooth running, precise linear guidance of the extruder and enormous noise reduction. Control the 3D printer comfortably and intuitively via the touch display and rely on reliably good production results thanks to BuildTak adhesives, heated building platform and heated filament drying chamber.
CreatBot D600 Pro improvements over D600:
- 25 control points check the setting of the building platform and level it automatically
- Precise linear guide rail for stable and smooth running
- Power failure protection automatically remembers the last position and continues 3D printing
- Heated building platform made of glass and BuildTak adhesives
- Easy control via the 4.3-inch touch screen
- Construction chamber heated to 70 degrees minimizes warping
- Filament drying chamber for nylon and other hydrophilic filaments
- More features of the CreatBot D600 Pro:
- Manufacturing temperature up to 260°C hotend(left) and 420°C hotend(right)
- High precision 3D printing – up to 0.05 mm
- Stable installation space made of steel guarantees reliable results
- Very large installation space of 600 x 600 x 600 mm
- Completely enclosed construction chamber for stable temperatures and noise reduction
- Perfect for additive production with high-performance thermoplastics
TEMPERATURE UP TO 420°C

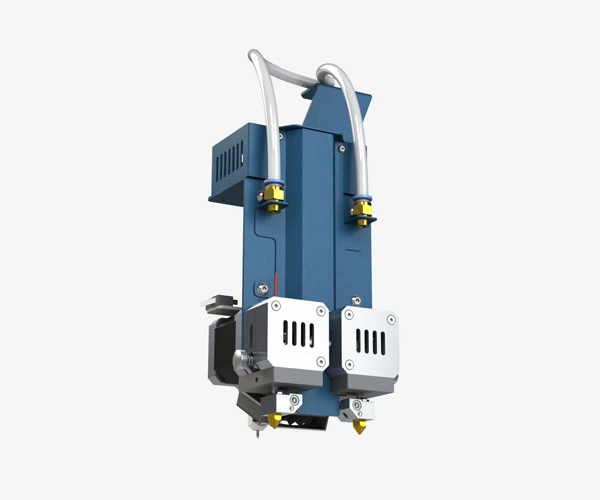

D600 and D600 Pro equiped with the 4th generation dual extruders and hotends. The left extruder equiped with 260°C hotend, it is able to print with PLA, ABS, PC, Nylon, Carbon fiber, Flexible, etc. The right extruder 420°C hotend is made of martensite steel, which is able to print high performance materials. The dual hotend is replaceable, which provide more possibility on your application.
We exclusively research and develop the extruder feeding system support high-speed printing, and accuracy can reach high to 0.05mm, it allows to extrude filament steady without block. Precision up to:0.05mm Speed up to: 200mm/s

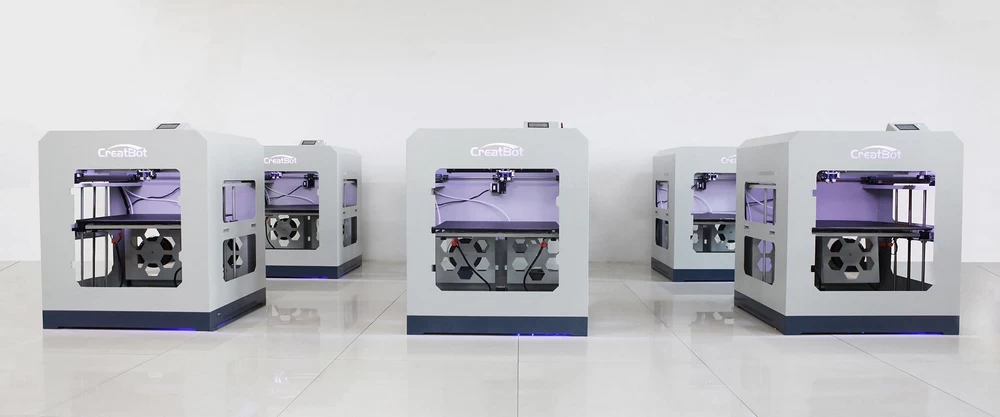

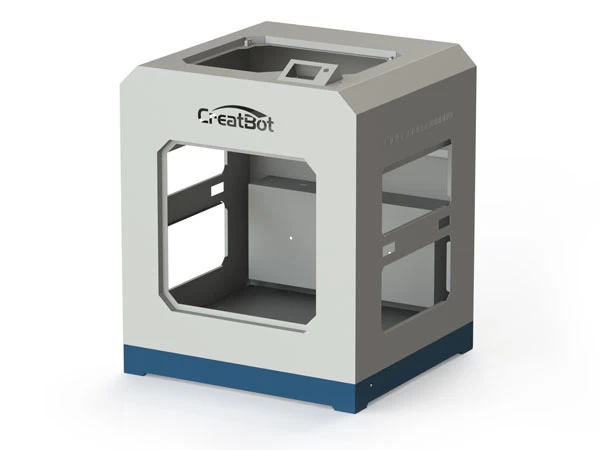

The whole-steel body not only ensure the stability when printing but also greatly extend the usage period. the optimization and cooperation of overall structure ensure the sustainable and efficient operation. The first batch of CreatBot 3D printers have been working for 5 years and more than 8000 hours.
HUGE BUILD VOLUME
D600 is a real industrial level 3D printer, it can print largest build volume of 600*600*600mm, 30 times bigger than it of other ordinary 3D printer in nowadays mass market. CreatBot D600 build volume: 600*600*600mm
FULLY ENCLOSED CHAMBER
The fully enclosed chamber can block all external interference. Also this frame can reduce noises, at the same time to provide constant temperature, so that the model won't deform.
AUTO LEVELING PLATFORMD600 Pro

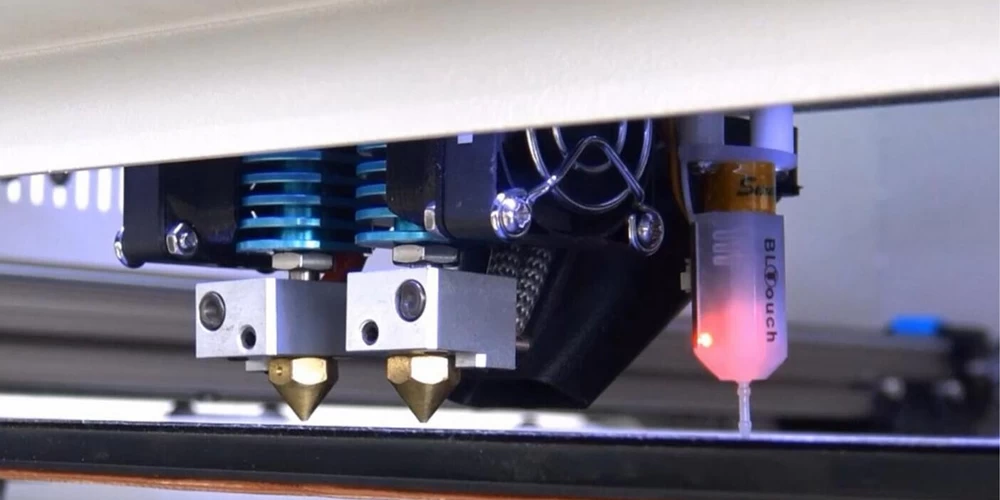

Use of 25 points through the BL-Touch probe to save the level of platform flatness data at the initial, through the Z axis intelligent compensation table height in the printing process to achieve fully automatic leveling.

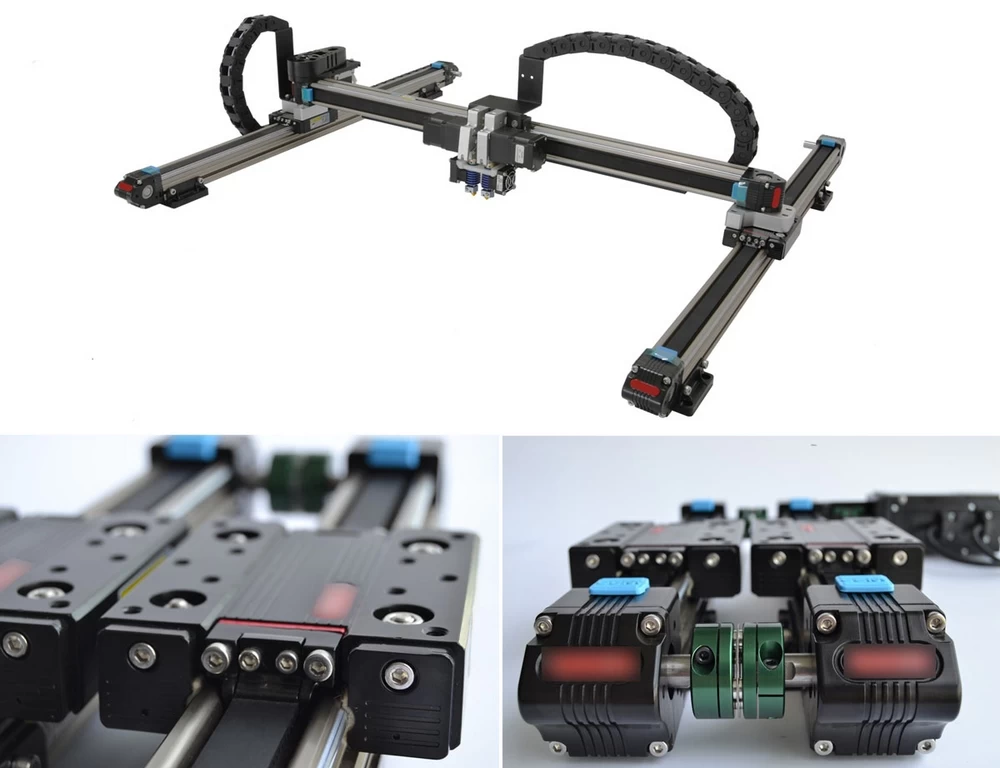

ACCURATE LINEAR GUIDE RAIL
The accurate linear rail structure can print models in accuracy high reach to 4~5 times higher than the other ordinary optical axis printers in mass market. This structure offers accurate filament feeding, so that can print large model fast and perfectly.

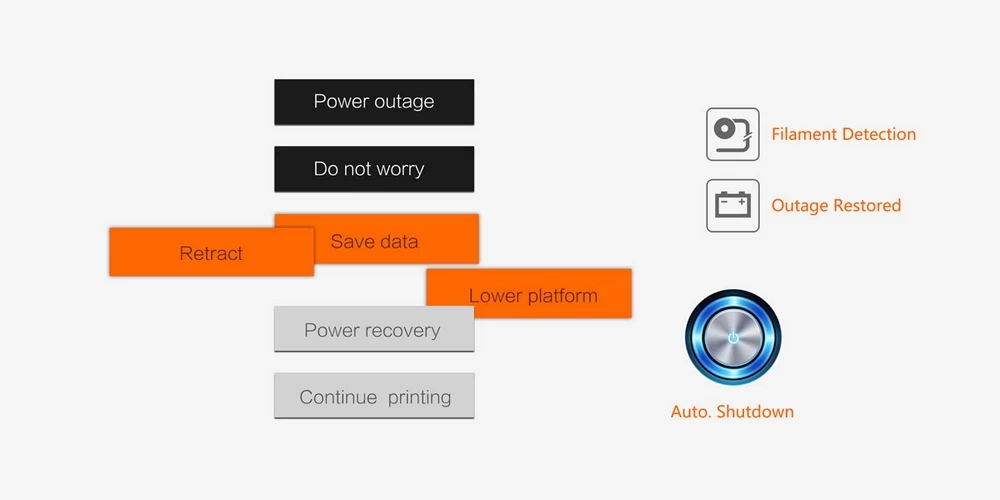

OUTAGE RESTORED & FILAMENT DETECTION
The printer will automatically memorize the current position and save the print data, lower the working platform and withdraw filament when the power off suddenly.

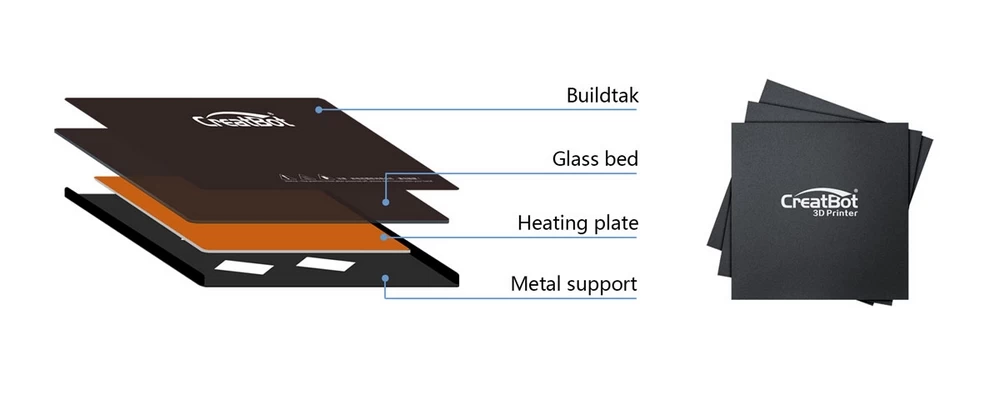

The platform surface is attached with the 3D printing special stickers, and the printer has vertical thermal conductivity so that can support high thermal efficiency. You can set the parameters to turn off the hot bed automatically after the specified number of layers.

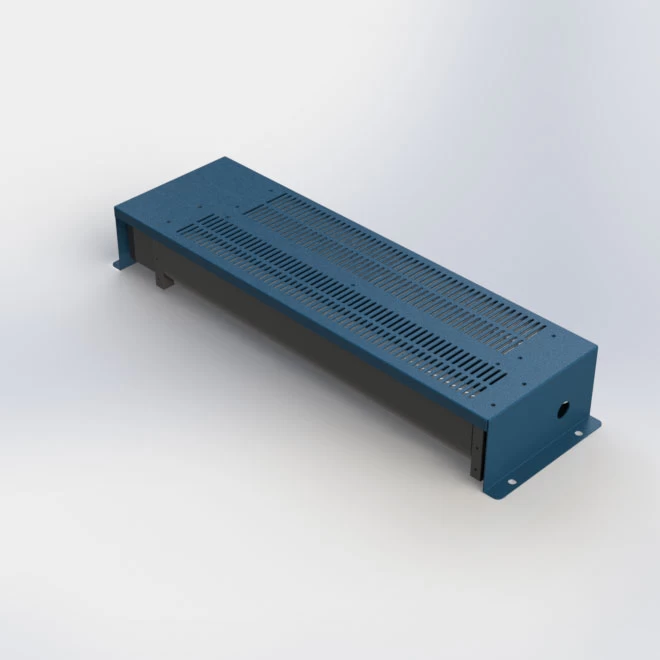

HOT AIR CHAMBER 70°CD600 Pro
Hot air chamber can provide constant room temperature so that model won’t deform when printing.

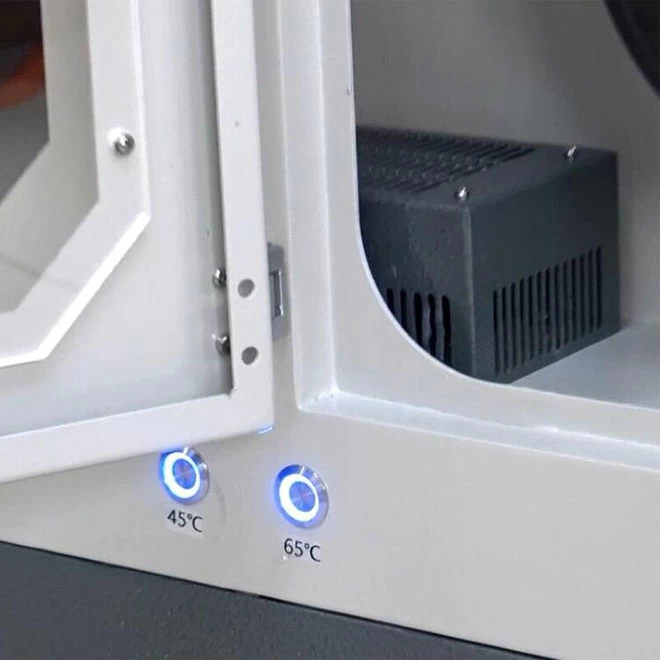

FILAMENTS DRYING ROOMD600 Pro
The function is able to dry filaments like Nylon,PC,ABS, which with high water absorption, 45°C and 65°C chamber temperature available.

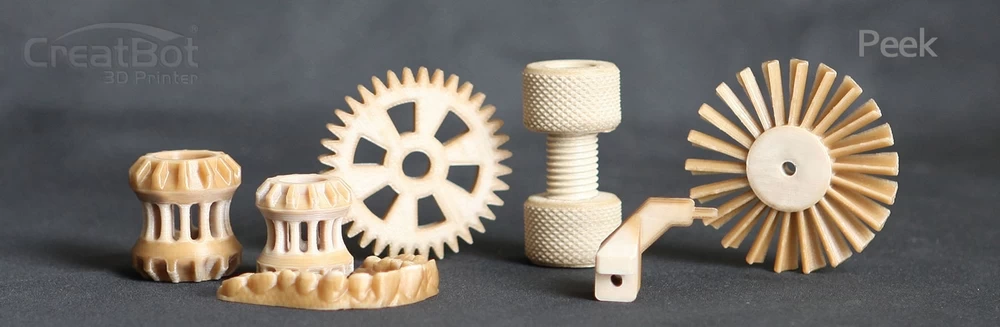

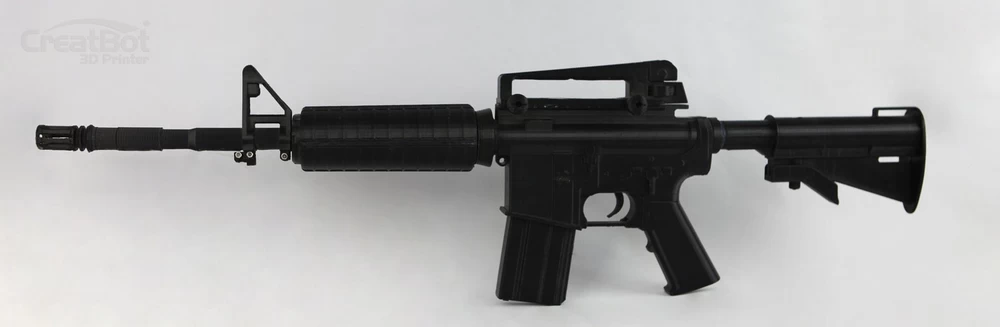

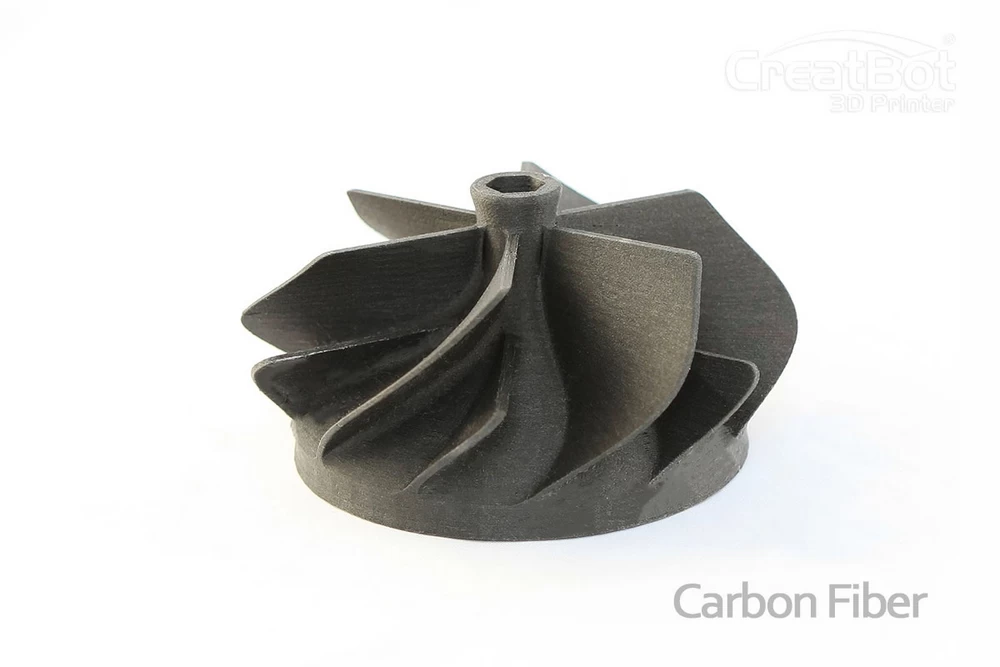

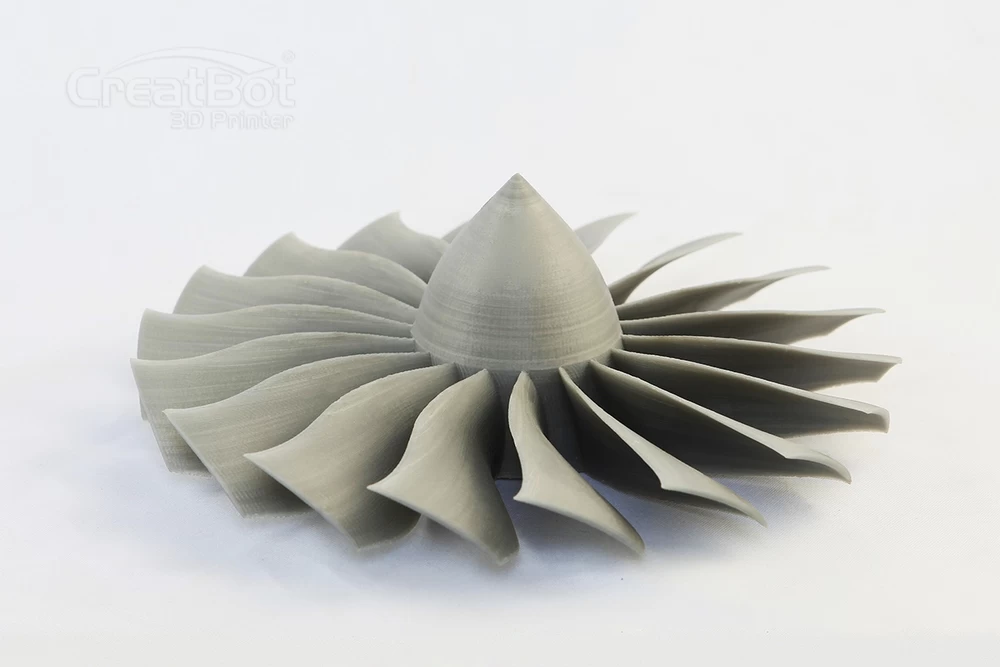

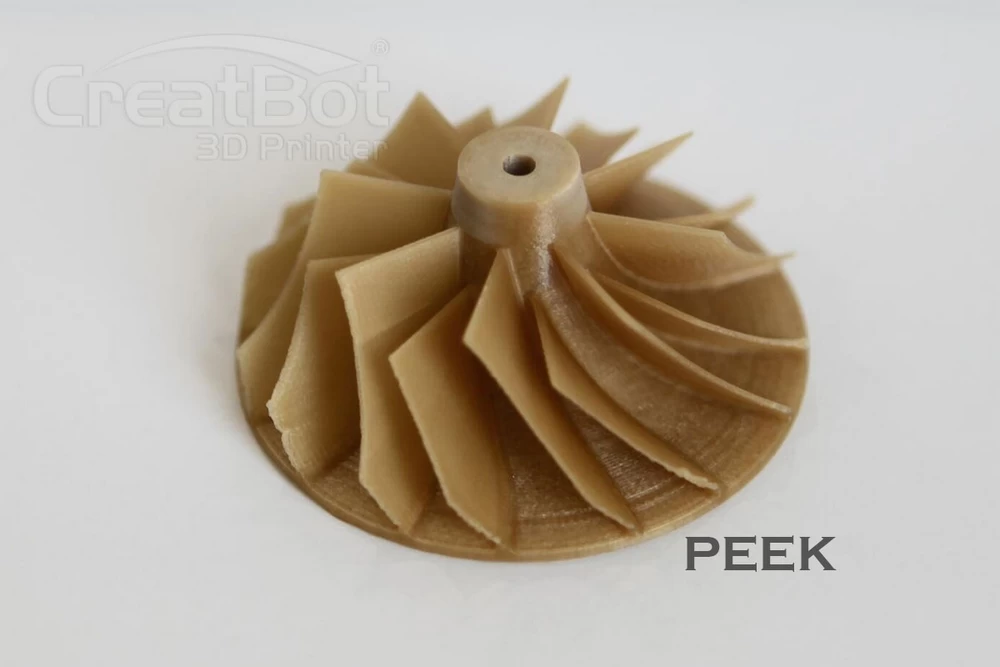

FILAMENT & APPLICATION

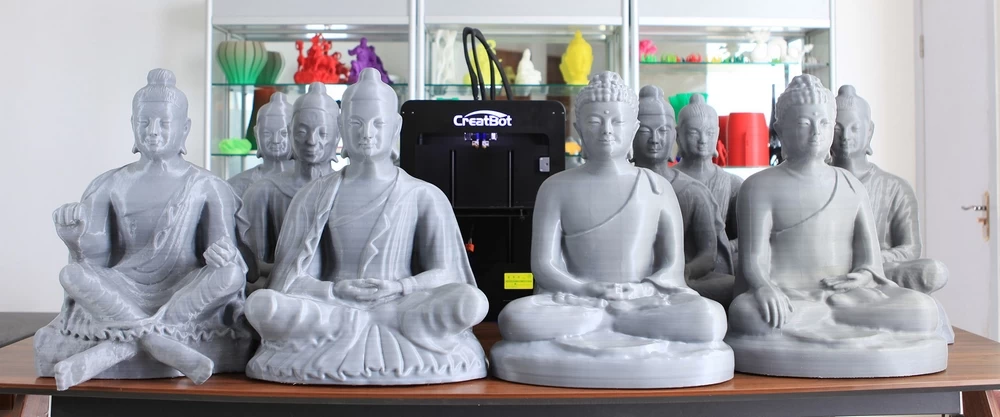

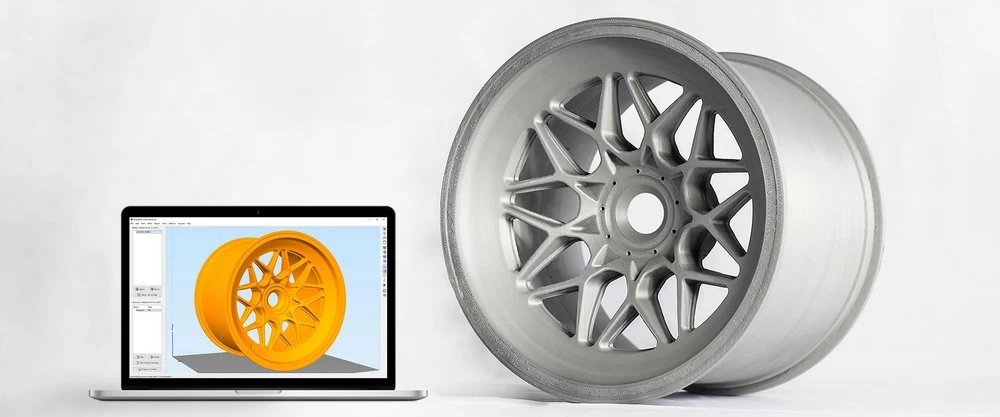

We supply high quality CreatBot filament. The models below are commissioned by the cultural relics protection organization and printed by D600 with 5kg big roll of PLA within 80 hours. No extra cares or change filament.
Fused Deposition Modeling
Number of Nozzles:
PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PTEG, HIPS, PP, Flexible, TPU, PVA, etc.
0.4mm (0.3, 0.5, 0.6, 0.8, 1.0mm)
Print File Type:
Ambient Operating Temperature:
Max. Nozzle Temperature:
Max. Chamber Temperature:
Max. Bed Temperature:
Filaments Drying Temperature:
Best Printing speed:
Max. Printing speed:
Max. traveling speed:
Power-Coated Steel, Aluminum Casting for Motion Components, POM
Tempered glass Panel
Build Plate Leveling:
Factory Leveled, Adjust Manually
Geared motor (1:10 rate)
1.8° Step Angle with 1/16 Micro-stepping
X Y Positioning Precision:
Z Positioning Precision:
220-240V, 50-60Hz D600 Pro
4.3" Touch Screen with Multi-language
Supported File Types:
STL, OBJ, AMF
Mac OS X
Save data when power is off
Pause printing when filament run out
Turn off the power automatically when printing is complete
SIZE & WEIGHT
Product Dimensions & Weight:
Packing Size & Weight:
1000*1030*1360mm 190Kg (Pallet)
