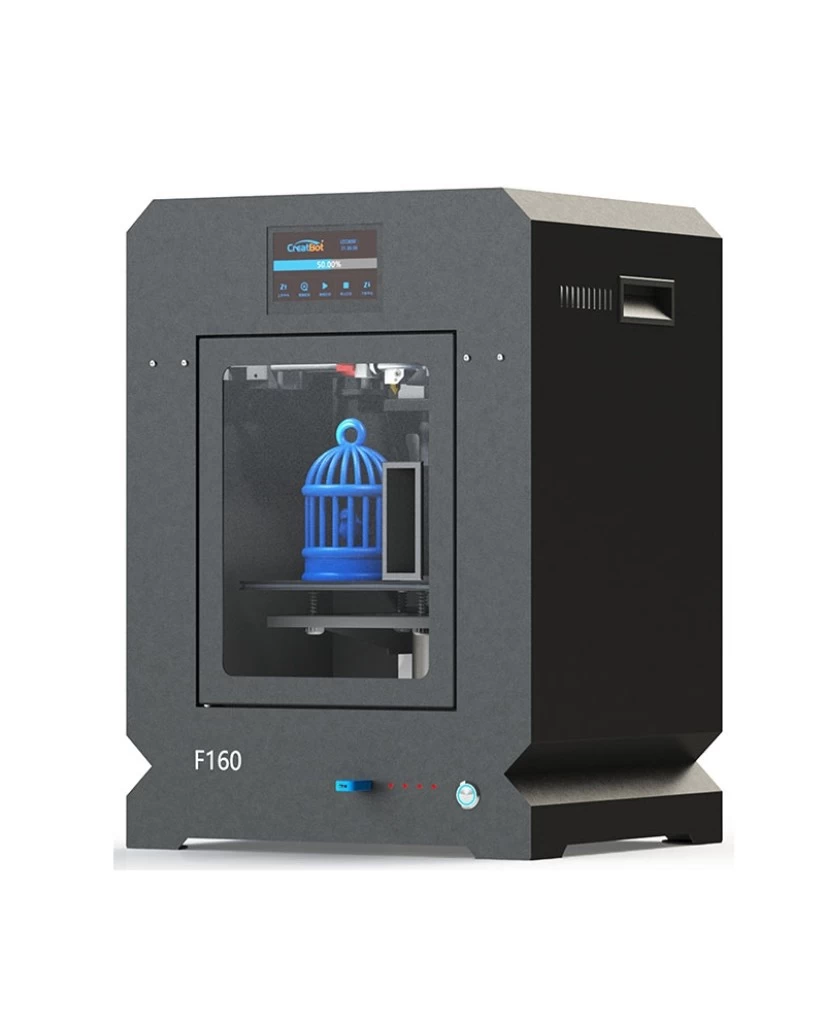

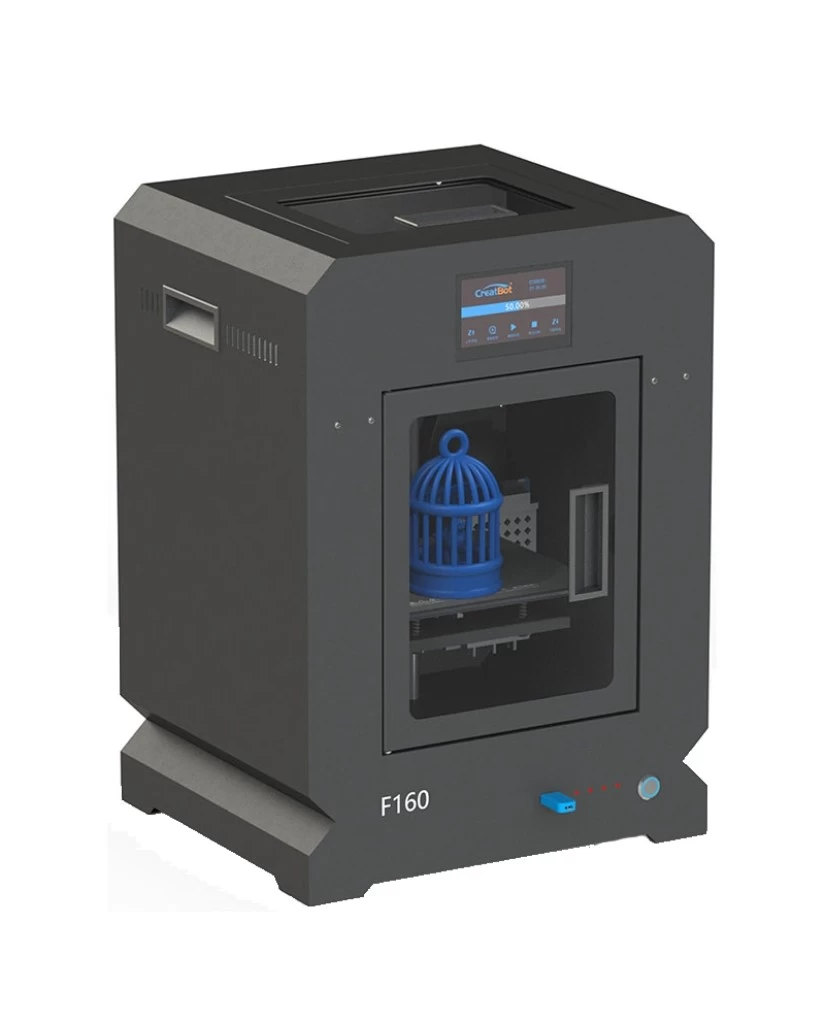

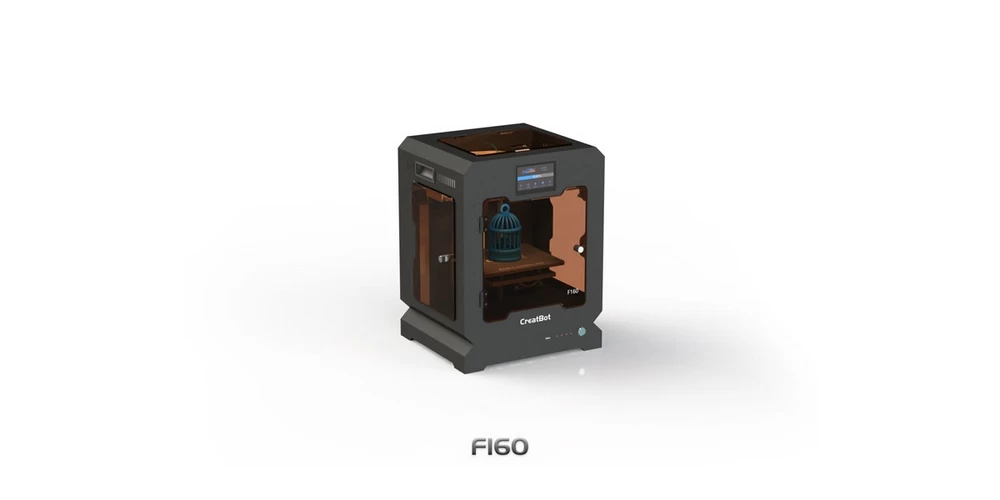

Creatbot F160 Desktop 3D Printer
The CreatBot F160 Desktop 3D printer can be used to additive manufacture objects out of high temperature filaments such as Nylon, PEEK or Ultem. Furthermore, you can process other materials which need temperatures up to 420°C.
Main Features:
- Build volume of 160 x 160 x 200 mm
- Max. Nozzle temperature: 420°C, Bed temperature: Up to 130°C
- Filament Compatibility: PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PTEG, HIPS, PP, Flexible, etc.
- High precision up to 0.04mm
- Stable durable metal chassis structure
- Fully enclosed high-temperature chamber
- Filament detection and outage restored
- Touch screen interface
- Buildtak Platform support

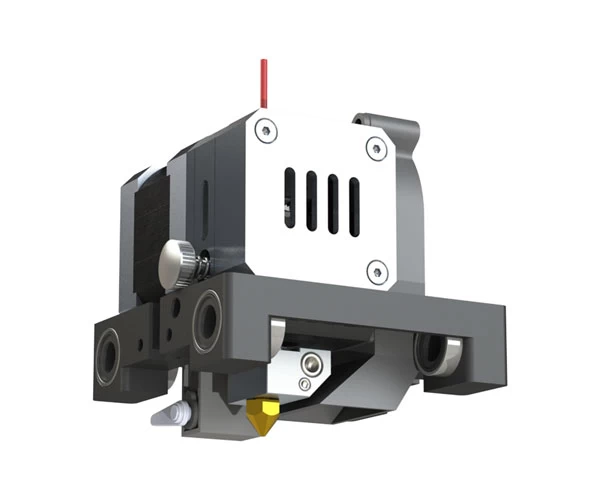

Support 420°C Hotend
We are the first one to publish 420°C high temperature nozzle to 3d printer market. This kind of nozzle allow to print with a variety of filaments. The nozzle height can also be micro adjusted. Normal nozzle support up to 260°C. High temperature 420°C Nozzle available as an option.

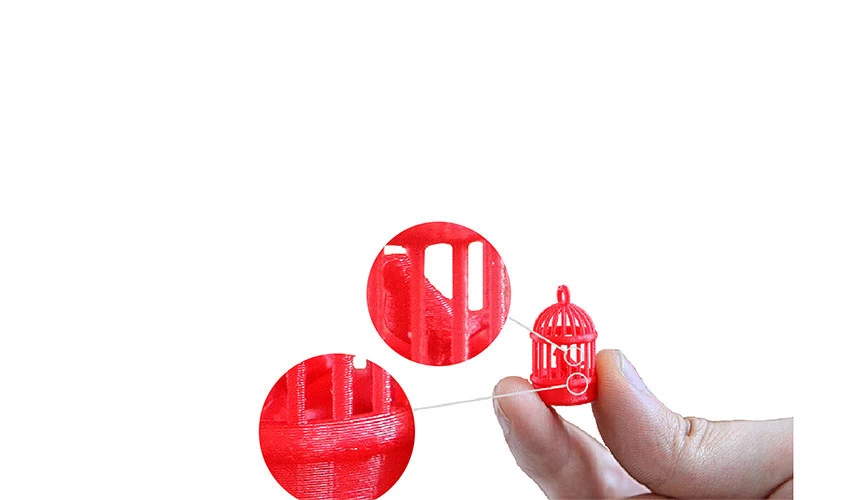

High Precision & High Speed
We exclusively research and develop the extruder feeding system and guide rail, which support high-speed printing. Its printing accuracy can reach high to 0.04mm,and it allows to extrude filament steady without block.

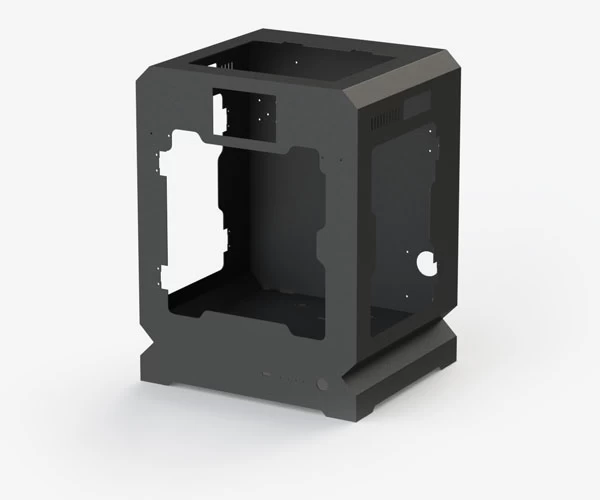

Stability
The whole-steel body not only ensure the stability when printing, but also extend the usage period greatly. Its optimization and cooperation of overall structure ensure the sustainable and efficient operation. The first batch of CreatBot 3D printers have been working for 5 years and more than 8000 hours.

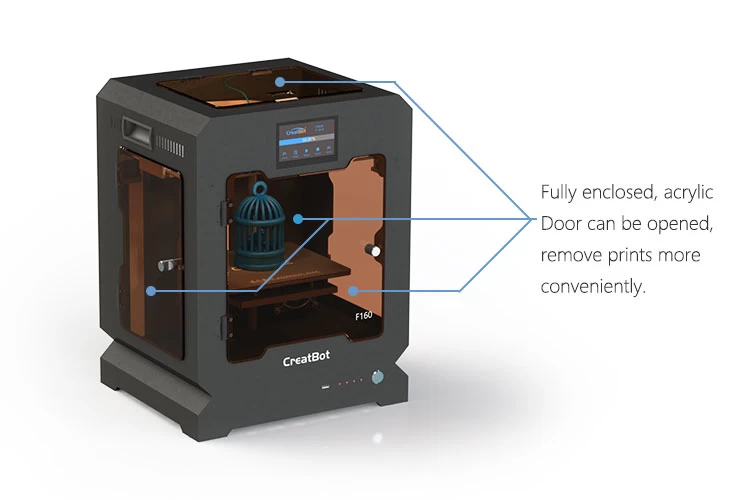

Fully Enclosed High-Temperature Chamber
Fully enclosed chamber can block all external interference and reduce noise. Hot chamber can provide constant room temperature so that model won’t deform when printing.

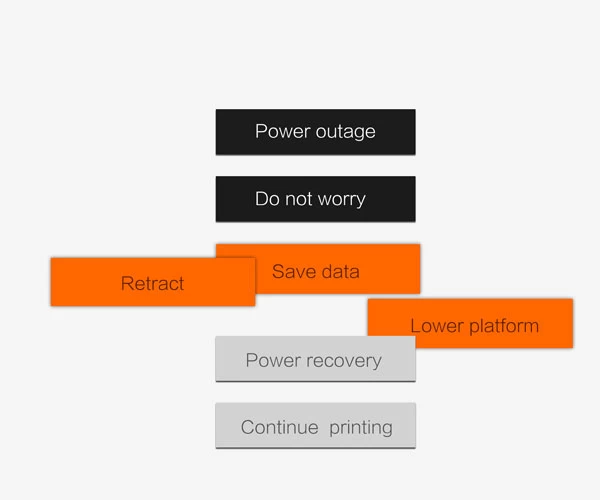

Outage Restored & Filament Detection
The printer will automatically memorize the current position and save print data. Lower the platform and withdraw filament when power off suddenly. It will continue to print from the last stopped point after power’s on.The printer will avoid invalid printing by stoping print and warning when filament runs out.

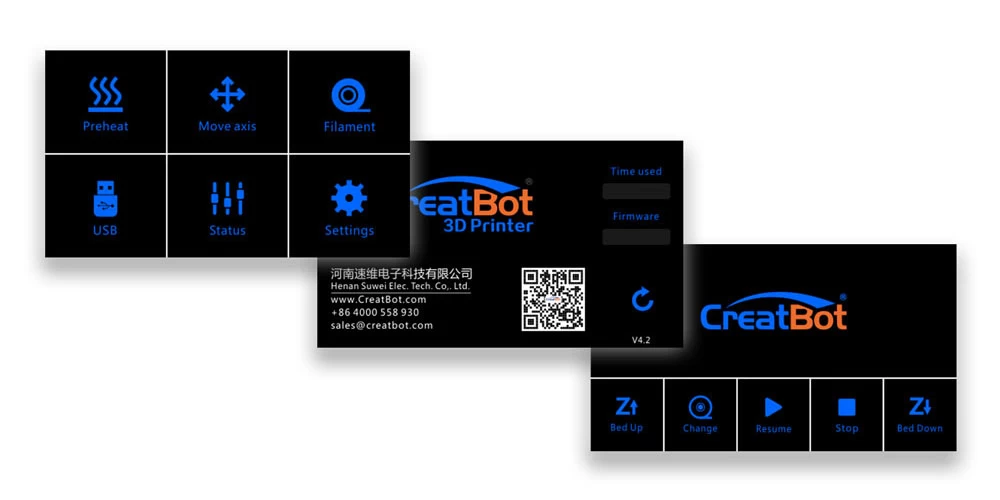

Touch Screen
The printer have all-English-menu touch screen which is easy operate and friendly use. One key to warm,one key to print as well as many other shortcut keys.

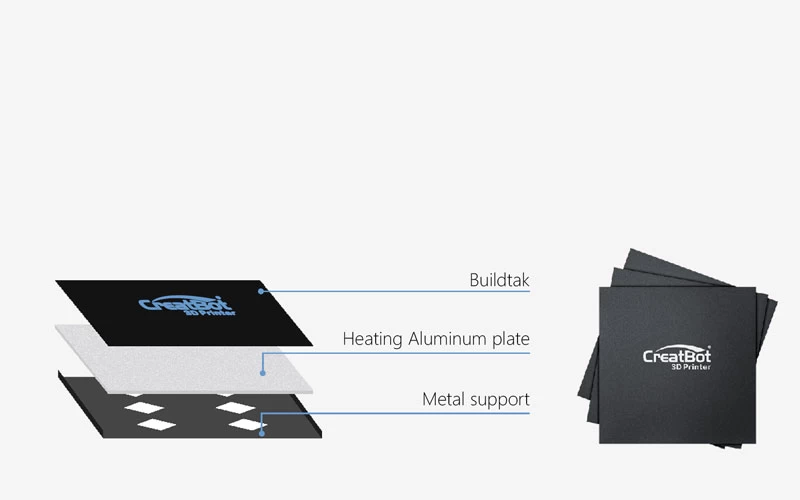

Efficiently Platform & 150°C Hotbed
The hotbed is made of heatable aluminium PCB, which can be heat up to 130°C fast. The platform is attached with 3d printing stickers buildtak. Printed object can be stick on the buildtak tightly and won’t get deformed.

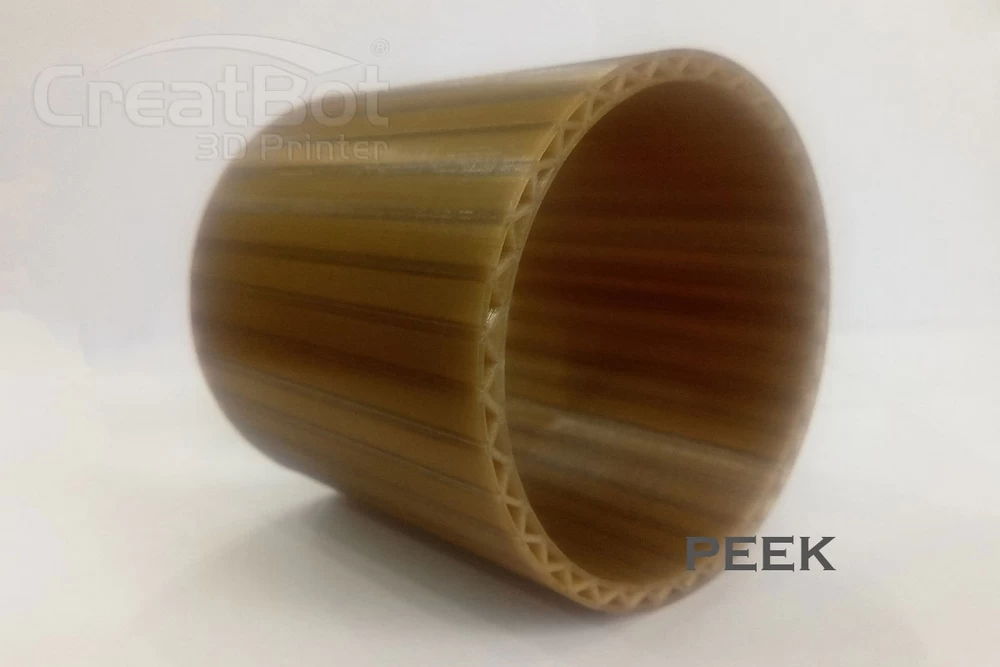

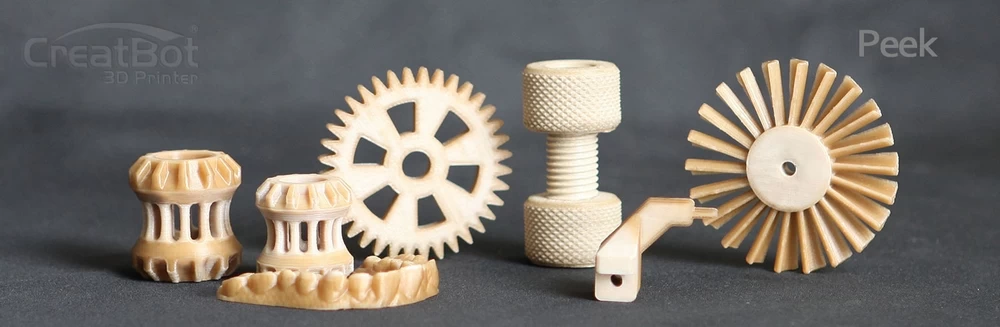

FILAMENT & APPLICATION

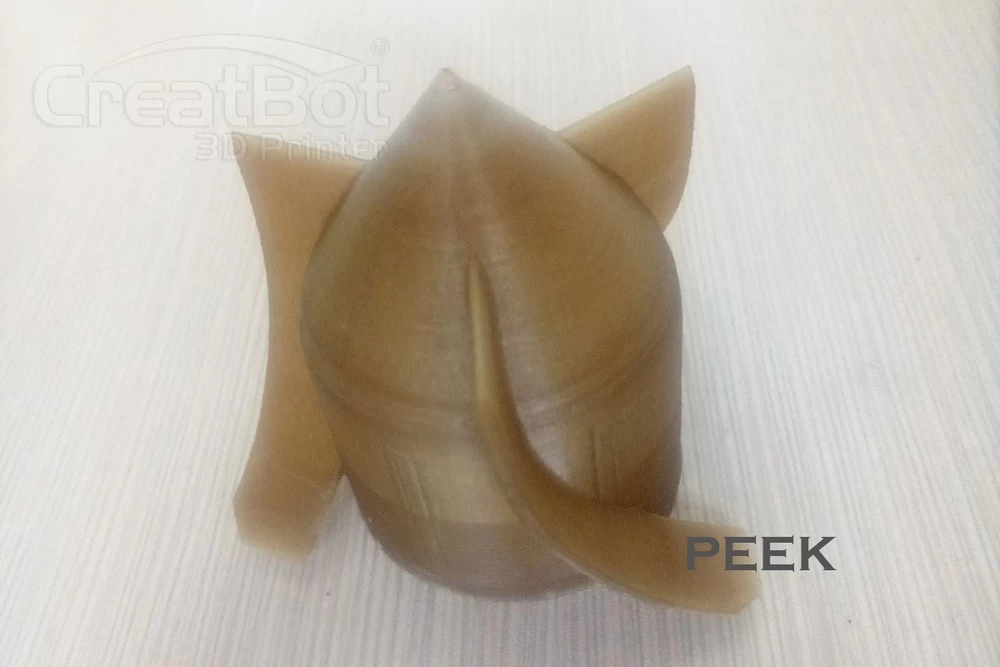

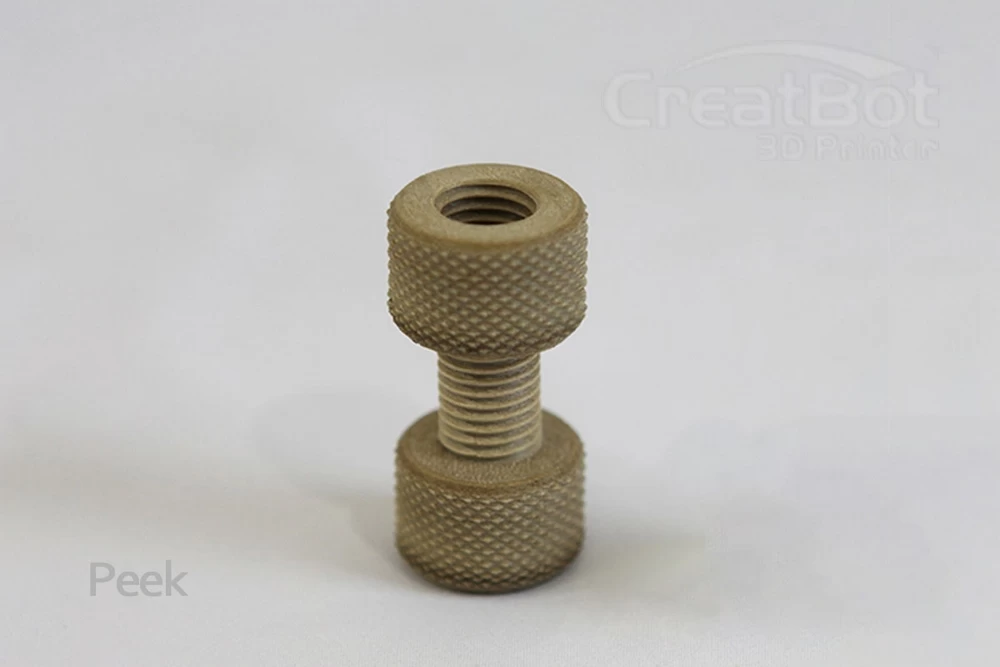

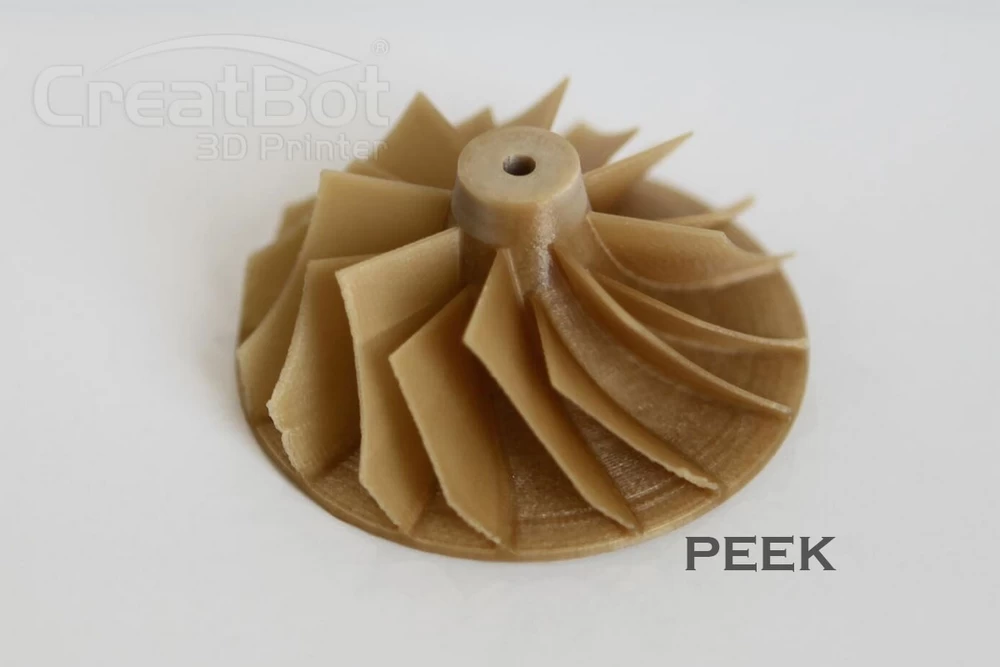

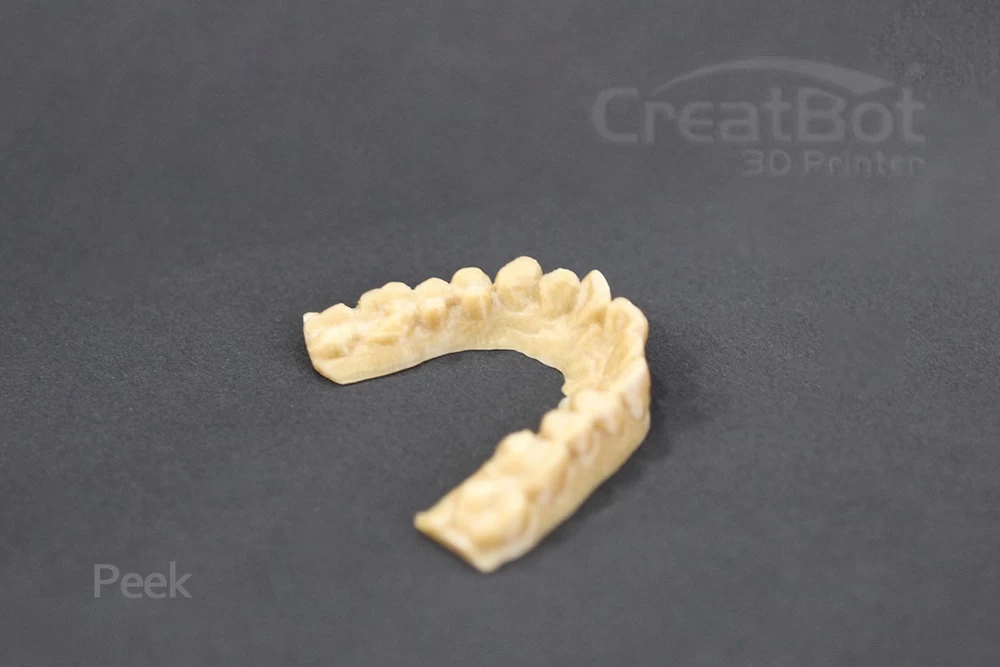

standard F160 are able to print PLA,ABS,Nylon,etc perfectly. The F160-PEEK version applied to 3D printing of PEEK. We supply high quality PEEK filament as well , which requires 420°C extrusion temperature. The material have features of high strength, high toughness, corrosion resistance and wear resistance. It can be used in aerospace, electronics, medical, machinery, automotive and other industries.
Tech Specs:
PRINTING
Print Technology:
Fused Deposition Modeling
Build Volume:
160*160*200mm (F160)
Number of Nozzles:
Single
Resolution:
0.04mm
Layer Resolution:
0.01mm
Filament Diameter:
1.75mm
Filament Compatibility:
PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PTEG, HIPS, PP, Flexible, TPU, PVA, PEEK, etc.
Nozzle Diameter:
0.4mm (0.3, 0.5, 0.6, 0.8, 1.0mm)
Print File Type:
GCO, GCODE
TEMPERATURE
Ambient Operating Temperature:
15-32°C
Max. Nozzle Temperature:
420°C
Max. Bed Temperature:
150°C
SPEED
Best Printing speed:
60mm/s
Max. Printing speed:
200mm/s
Max. traveling speed:
200mm/s
MECHANICAL
Construction:
Power-Coated Steel, Aluminum Casting for Motion Components, POM
Build Plate:
Heatable Aluminium PCB with BuildTak
Build Plate Leveling:
Manually
Extruder:
Directly Drive
Stepper Motors:
1.8° Step Angle with 1/16 Micro-stepping
X Y Positioning Precision:
12.7 Microns
Z Positioning Precision:
1.25 Microns
ELECTRICAL
Power Requirements:
100-240V, 50-60Hz
Max. Power:
300W
Screen:
4.3" Touch Screen
Control Chip:
ATmega 2560
Storage Media:
USB Disk
Connectivity:
USB
SOFTWARE
Software Bundle:
CreatWare Multi-language
Supported File Types:
STL, OBJ, AMF
Operating Systems:
Windows (7,8,10)
Mac OS X
SPECIAL FUNCTION
Outage Restored:
Save data when power is off
Filament Detection:
Pause printing when filament run out
Automatic Shut-down:
Turn off the power automatically when printing is complete
SIZE & WEIGHT
Product Dimensions & Weight:
370*320*490mm 20Kg
Packing Size & Weight:
470*420*600mm 25Kg
