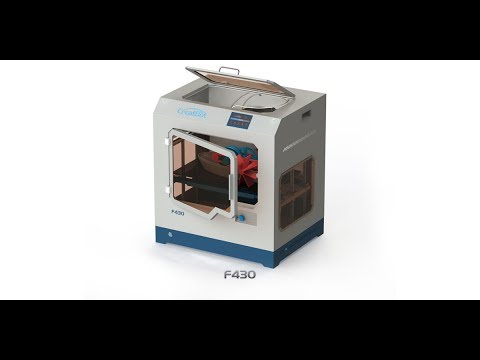

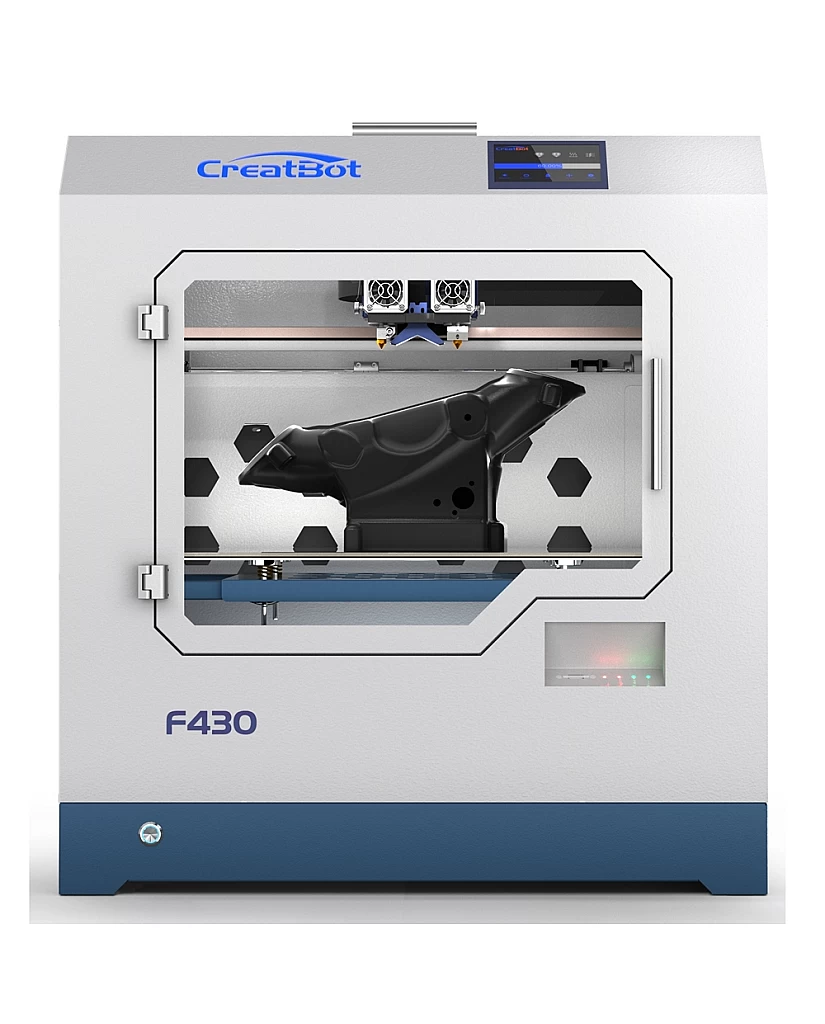

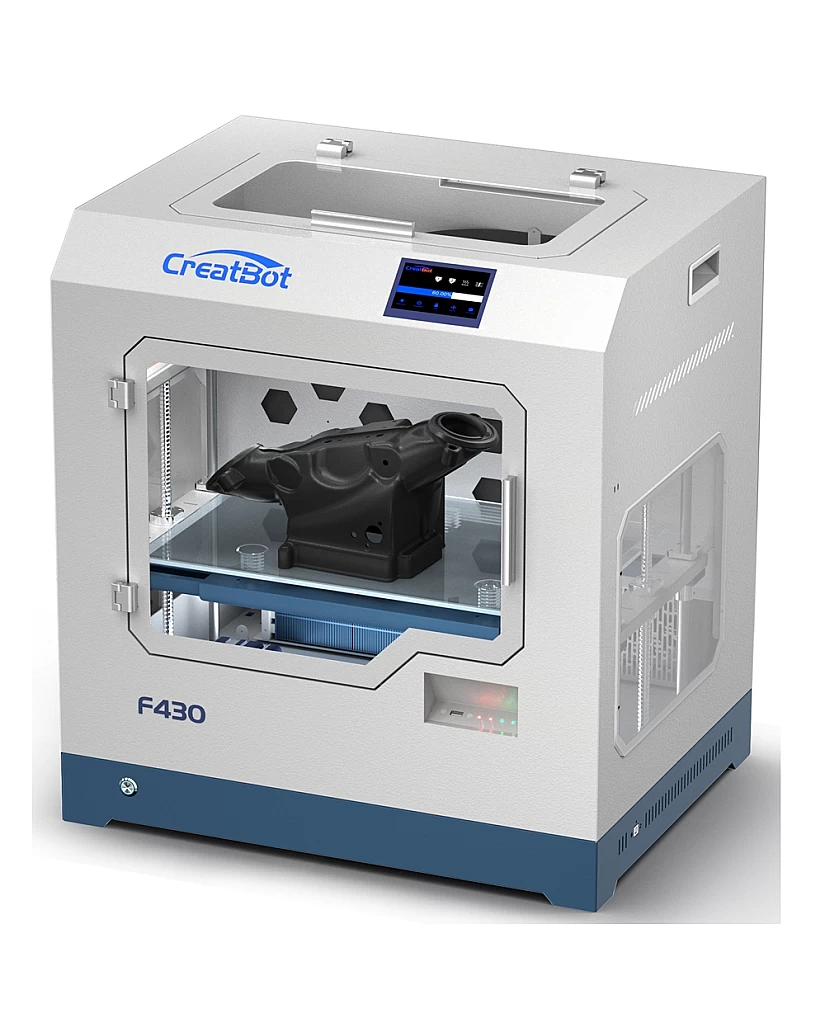

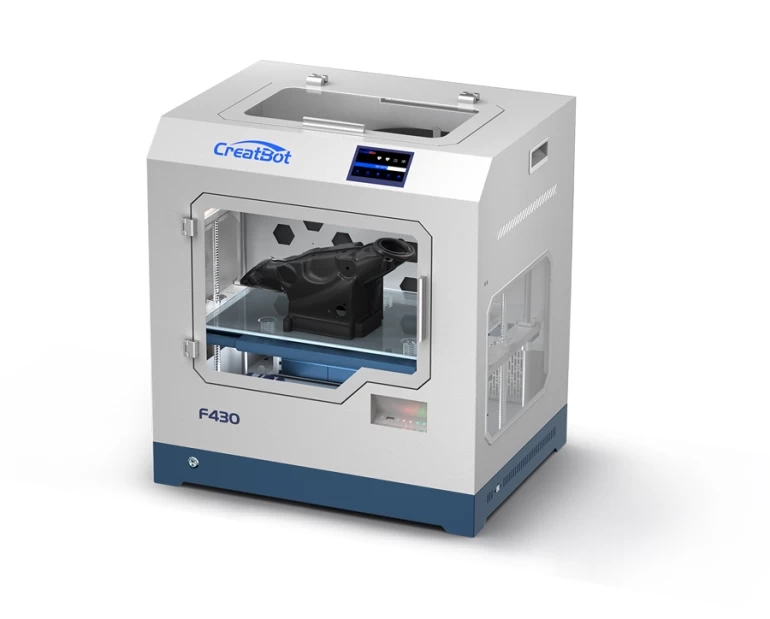

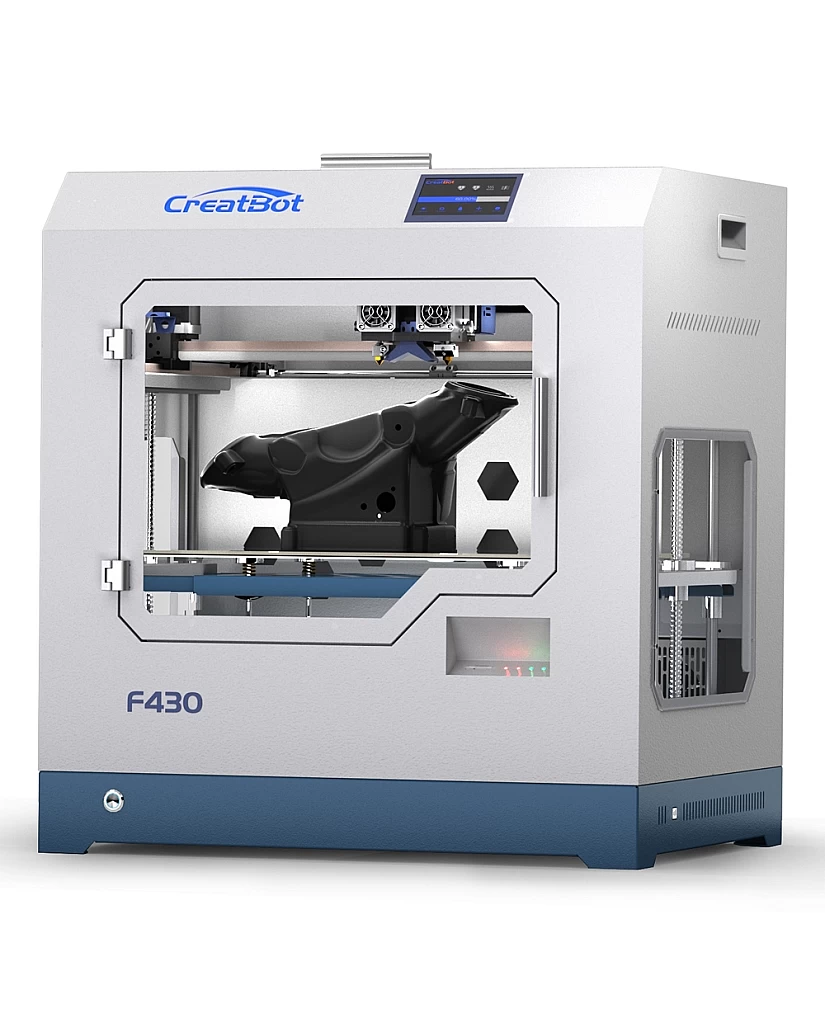

Creatbot F430 PEEK Printing 3D Printer
The CreatBot F430 is a low cost high temperature 3D printer for additive manufacturing with PEEK filament and other high performance materials that require high extrusion temperatures.
Main Features:
- Up to 70°C heated installation space minimizes warping
- 3D print PEEK, nylon, PC and other high temperature filaments – 420°C heatable hot end
- Power failure backup to easily resume your 3D prints continuously
- Automatic levelling and adjustment of the construction platform
- Heated installation space reduces warping
- Full metal hot end
- Hot end can be heated up to 420°C
- High manufacturing precision
- Complete metal housing
- Large installation space: 40 x 30 x 30 cm
- Filament sensor for status detection
- Glass ceramic printing bed with carbon fiber sheet for wonderfully smooth undersides
- Simple and intuitive operation via touch screen
- Direct drive of the extruder
- Completely enclosed installation space
- Air filter system for clean ambient air

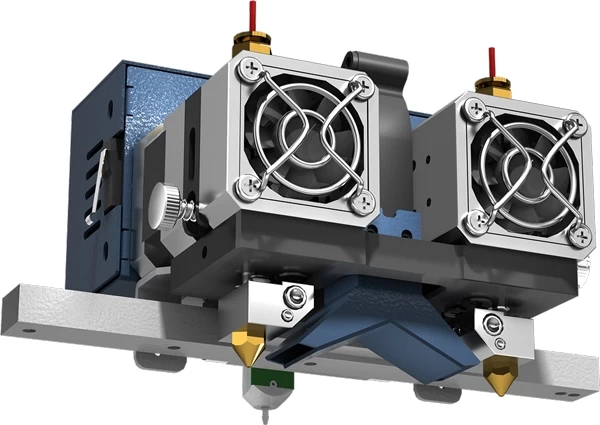

Support 420°C Hotend
We are the first one to publish 420°C high temperature nozzle to 3d printer market since year of 2016, now it is the 4th new tech version. F430 equiped with dual extruders, The left 260°C hotend is able to print with PLA, ABS, PC, Nylon, Carbon fiber, Flexible, etc. The right 420°C hotend is made of martensite steel, which is able to print High performance material like PEEK, ULTEM, etc. The dual hotend is replaceable, which provide more possibility on your application.

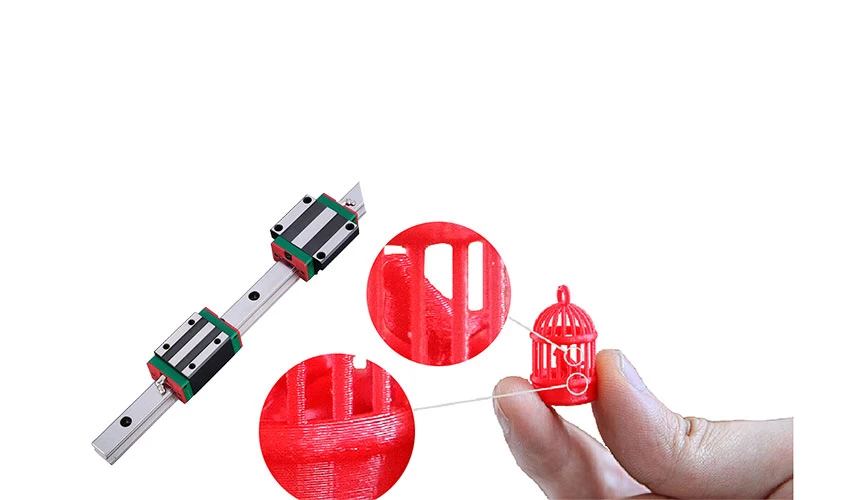

High Precision & High Speed
We exclusively research and develop the extruder feeding system and guide rail, which support high-speed printing. Its printing accuracy can reach high to 0.04mm,and it allows to extrude filament steady without block.

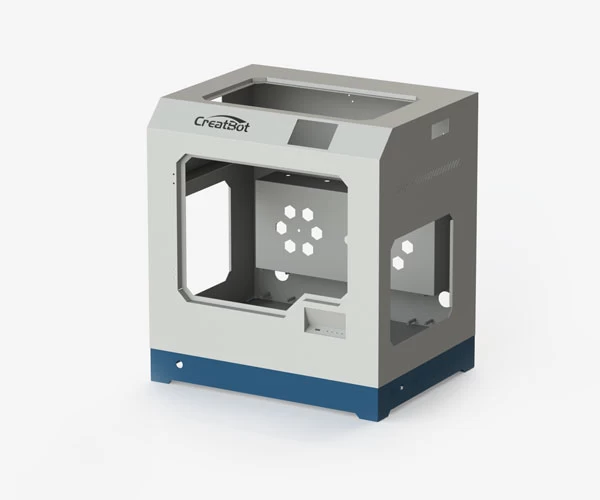

Stability
The whole-steel body not only ensure the stability when printing, but also extend the usage period greatly. Its optimization and cooperation of overall structure ensure the sustainable and efficient operation. The first batch of CreatBot 3D printers have been working for 5 years and more than 8000 hours.

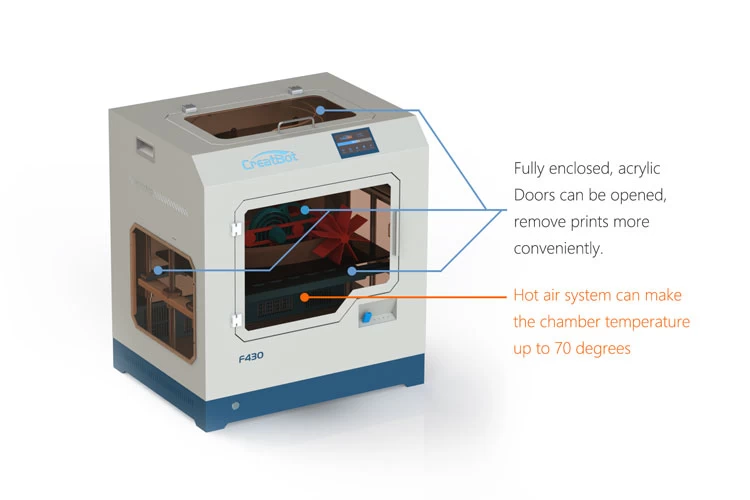

Fully Enclosed High-Temperature Chamber
Fully enclosed chamber can block all external interference and reduce noise. Hot chamber can provide constant room temperature so that model won’t deform when printing.

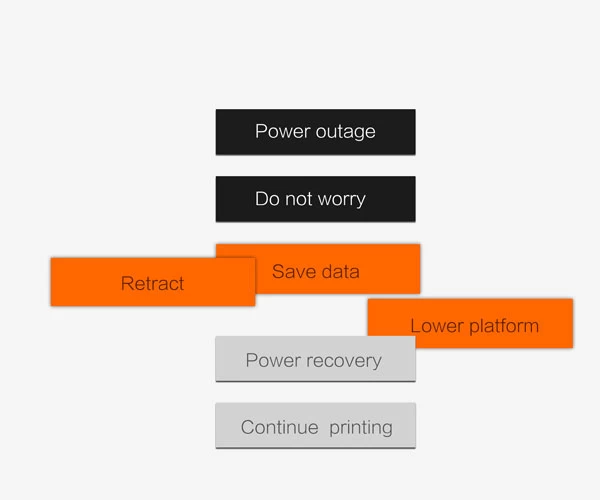

Outage Restored & Filament Detection
The printer will automatically memorize the current position and save print data. Lower the platform and withdraw filament when power off suddenly. It will continue to print from the last stopped point after power’s on.The printer will avoid invalid printing by stoping print and warning when filament runs out.

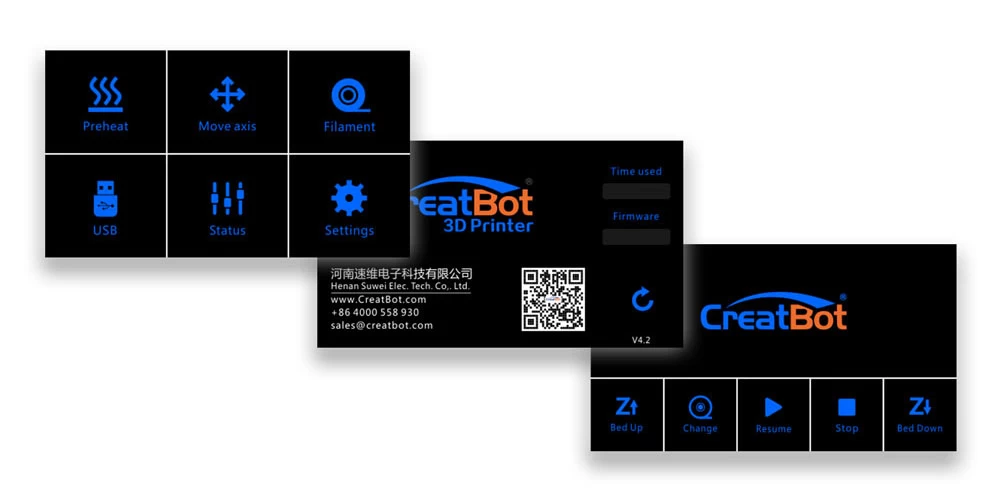

Touch Screen
The printer have all-English-menu touch screen which is easy operate and friendly use. One key to warm,one key to print as well as many other shortcut keys.
Glass-Ceramic Platform + Carbon Fiber Sheet
The printer has a heatable glass-ceramic platform and a carbon fiber sheet coverd. Glass-ceramic have hight thermal efficiency and best low-expansion coefficient, so it don't deform when heating&cooling.
Carbon fiber sheet is tough and removable. Heat can be deliver efficiently. Most materials can be extruded and sticked to bed very well.
Air Filter System
The air filter system can adsorb impurities and gases that generated by printing special filament, more safe and environmental protection which is more suitable for house, school, office space.

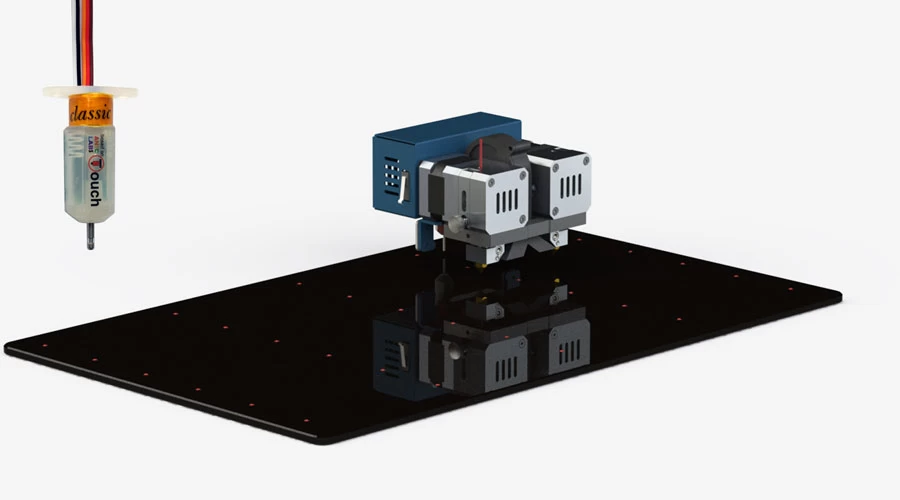

Automatic Leveling Platform
Use of 25 points through the probe to save the level of platform flatness data at the initial, through the Z axis intelligent compensation table height in the printing process to achieve fully automatic leveling.
FILAMENT & APPLICATION
standard f430 are able to print PLA,ABS,Nylon,etc perfectly. The f430-PEEK version applied to 3D printing of PEEK. We supply high quality PEEK filament as well , which requires 420°C extrusion temperature. The material have features of high strength, high toughness, corrosion resistance and wear resistance. It can be used in aerospace, electronics, medical, machinery, automotive and other industries.
Technical Specs:
PRINTING
Print Technology:
Fused Deposition Modeling
Build Volume:
400*300*300mm (F430)
Number of Nozzles:
Double
Resolution:
0.04mm
Layer Resolution:
0.02mm
Filament Diameter:
1.75mm
Filament Compatibility:
PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PTEG, HIPS, PP, Flexible, TPU, PVA, PEEK, etc.
Nozzle Diameter:
0.4mm (0.3, 0.5, 0.6, 0.8, 1.0mm)
Print File Type:
GCO, GCODE
TEMPERATURE
Ambient Operating Temperature:
15-32°C
Max. Nozzle Temperature:
420°C
Max. Bed Temperature:
110°C
Max. Chamber Temperature:
70°C
SPEED
Best Printing speed:
55mm/s
Max. Printing speed:
180mm/s
Max. traveling speed:
200mm/s
MECHANICAL
Construction:
Power-Coated Steel, Aluminum Casting for Motion Components, POM
Build Plate:
Glass Ceramic Panel
Build Plate Leveling:
Automatic
Extruder:
Directly Drive
Stepper Motors:
1.8° Step Angle with 1/16 Micro-stepping
X Y Positioning Precision:
12.7 Microns
Z Positioning Precision:
1.25 Microns
ELECTRICAL
Power Requirements:
100-240V, 50-60Hz
Max. Power:
1500W
Screen:
4.3" Touch Screen
Control Chip:
ATmega 2560
Storage Media:
USB Disk
Connectivity:
USB
SOFTWARE
Software Bundle:
CreatWare Multi-language
Supported File Types:
STL, OBJ, AMF
Operating Systems:
Windows (7,8,10)
Mac OS X
SPECIAL FUNCTION
Outage Restored:
Save data when power is off
Filament Detection:
Pause printing when filament run out
Automatic Shut-down:
Turn off the power automatically when printing is complete
SIZE & WEIGHT
Product Dimensions & Weight:
620*485*680mm 48Kg
Packing Size & Weight:
750*580*720mm 62Kg
