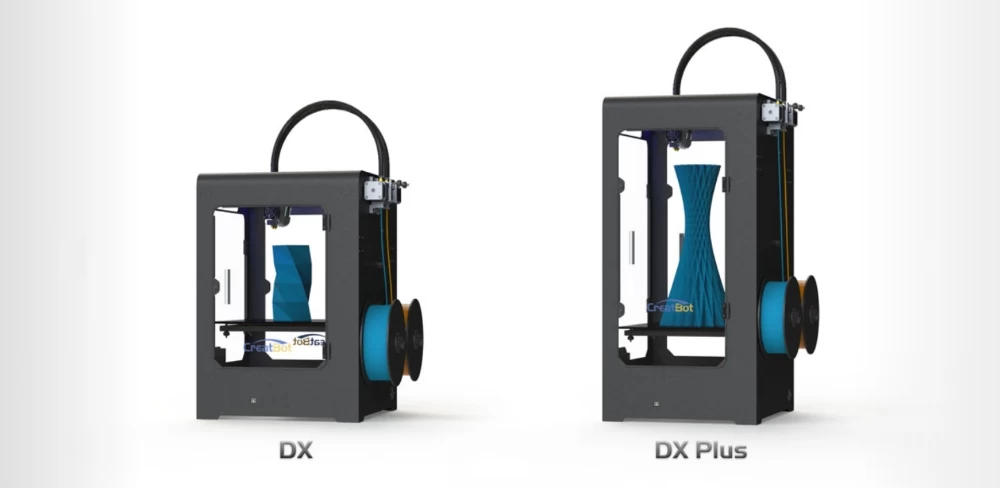

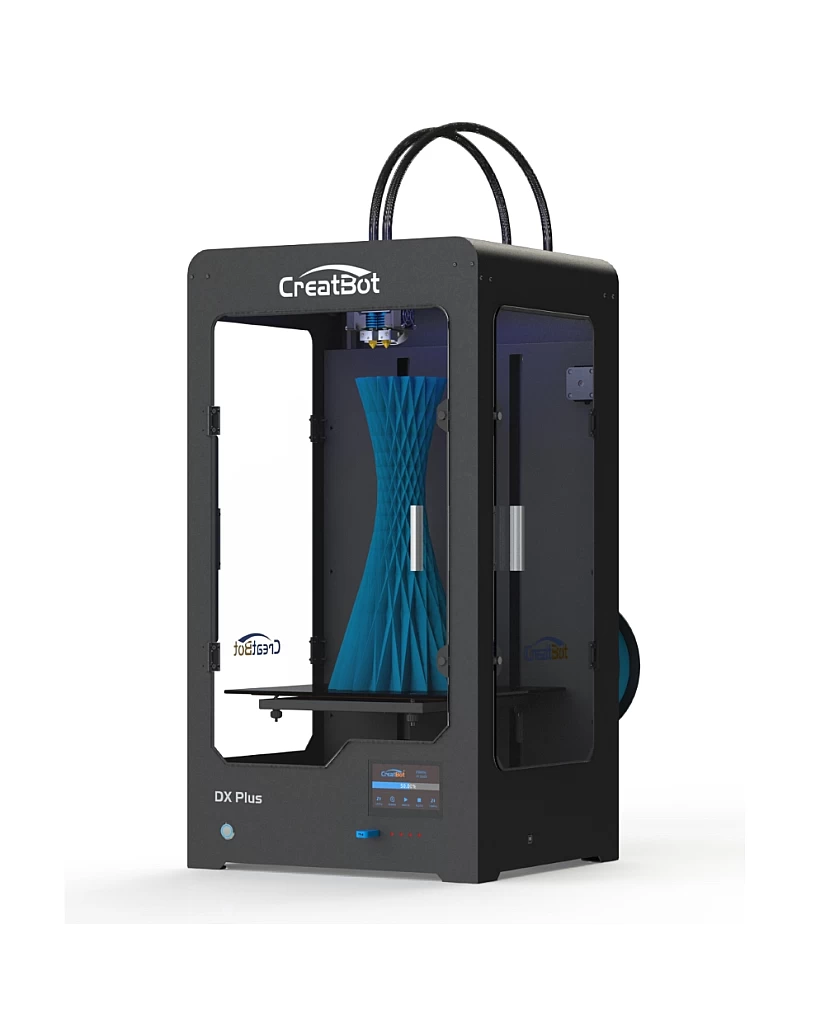

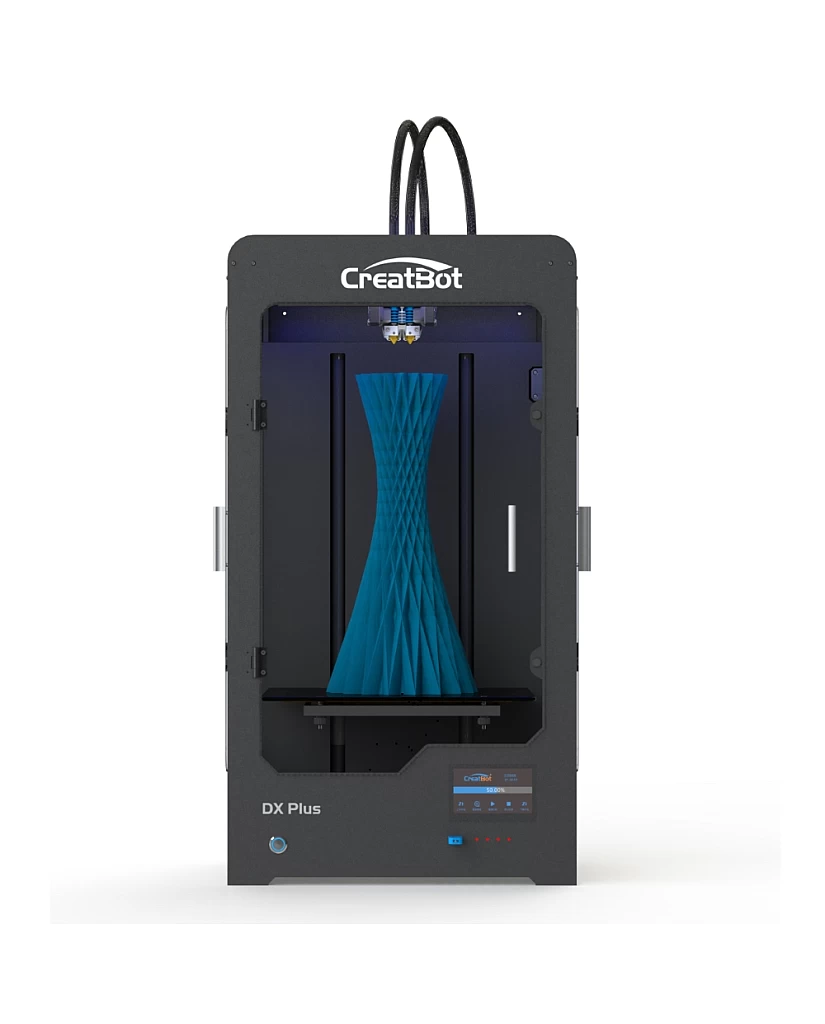

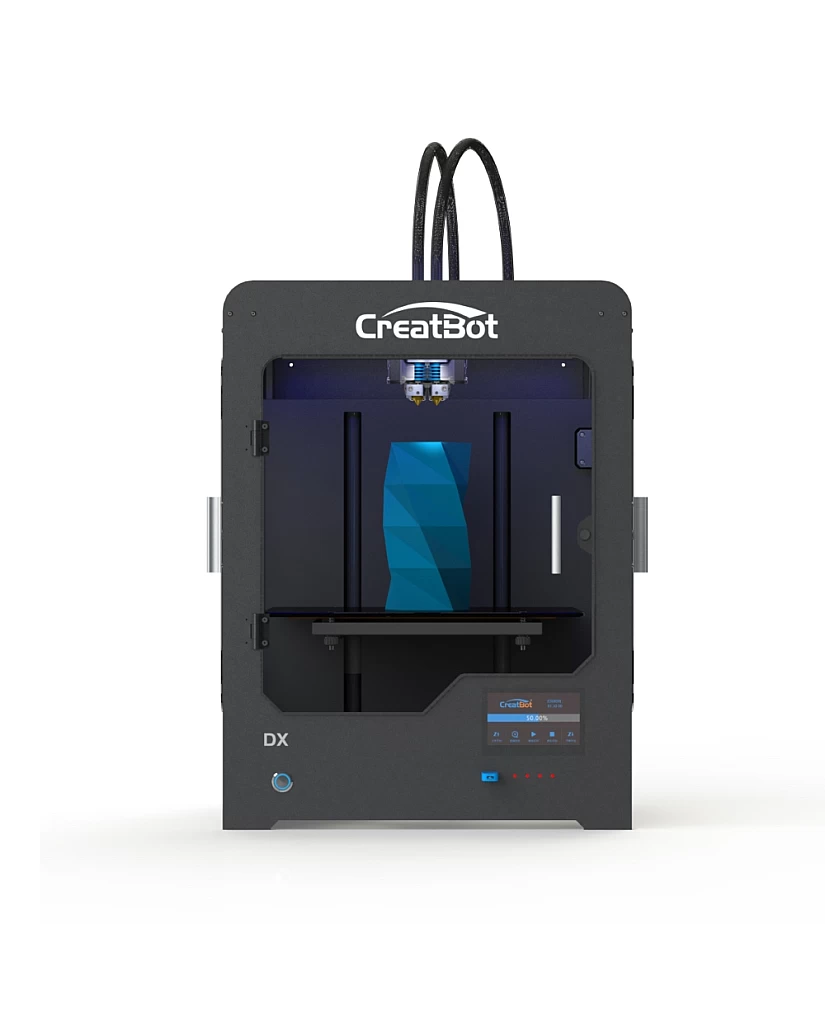

Creatbot DX / DX Plus is a professional series of 3D Printers with dual, triple extruders support and high-temperature printing (up to 350° C)
Main Features:

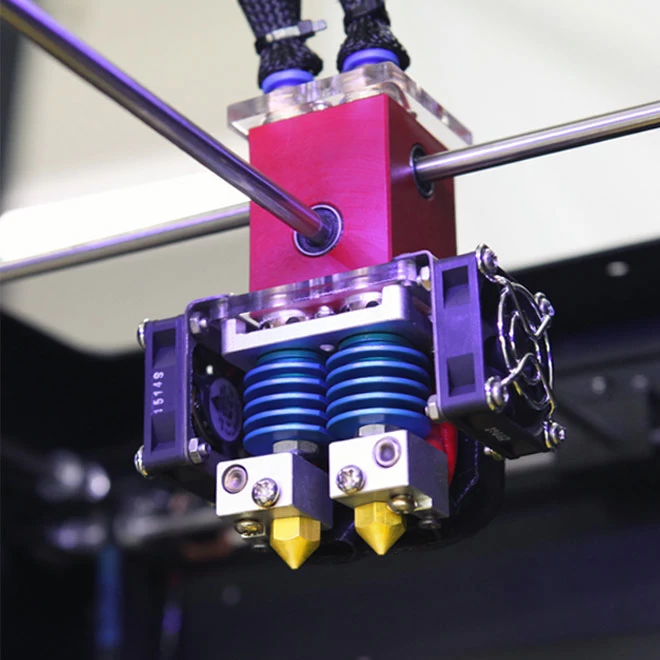

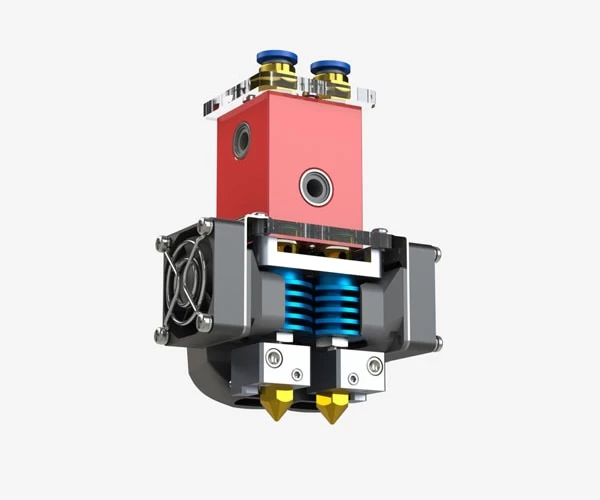

We are the first one to publish 350°C ultra-hight temperature nozzle to mass market and it possess exclusive patent. This kind of nozzle allow to print with a variety of filaments. And the fantasy blue metal cooling sink can efficiently cool down the heatbreak. The nozzle height can also be micro adjusted. And we accept customized for single/double/triple head.
We exclusively research and develop the extruder feeding system support high-speed printing, and accuracy can reach high to 0.05mm, it allows to extrude filament steady without block. Precision up to:0.05mm Speed up to: 200mm/s

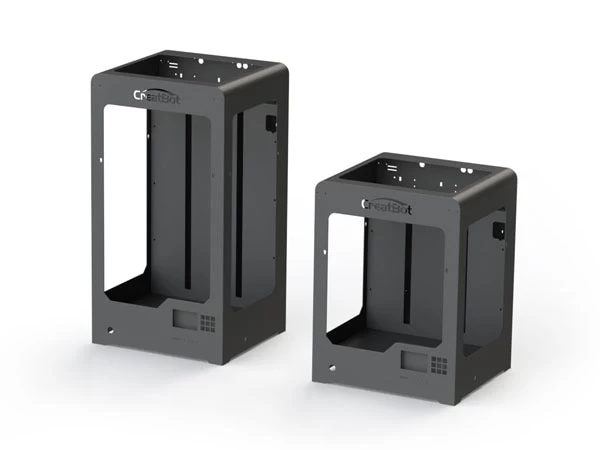

The whole-steel body not only ensure the stability when printing but also greatly extend the usage period. the optimization and cooperation of overall structure ensure the sustainable and efficient operation. The first batch of CreatBot 3D printers have been working for 5 years and more than 8000 hours.

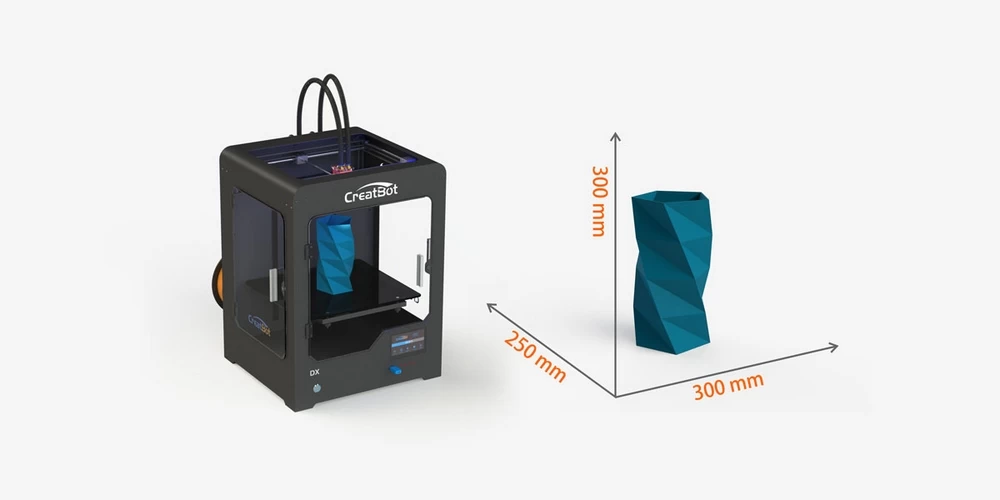

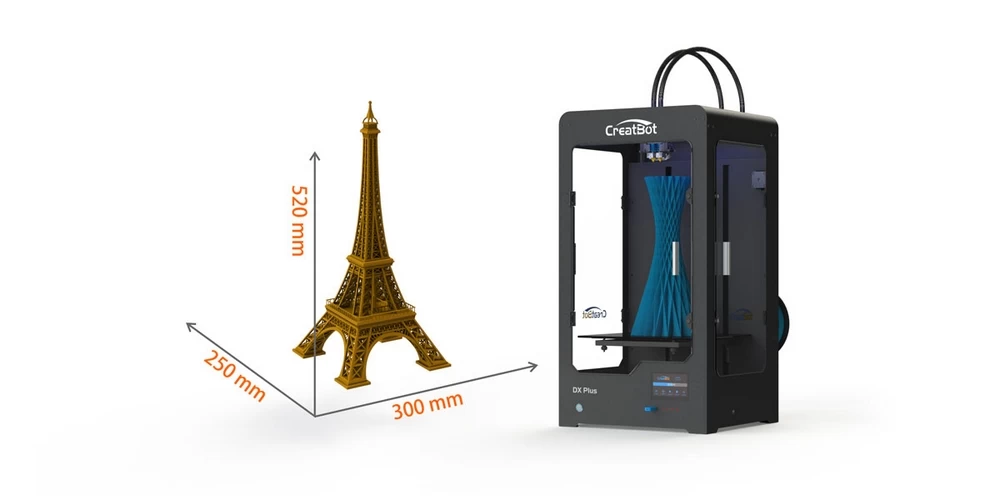

We provide variety of printing sizes for you reference. The largest build volume is 5 to 20 times bigger than it of other ordinary 3D printers in nowadays market. CreatBot DX build volume: 300*250*300mm and DX Plus Build Volume: 300*250*520mm

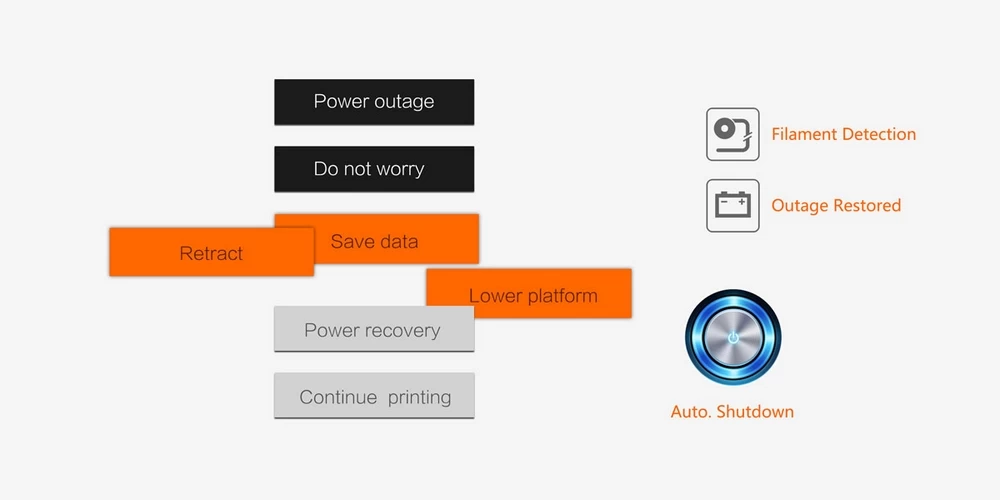

The printer will automatically memorize the current position and save the print data, lower the working platform and withdraw filament when the power off suddenly.

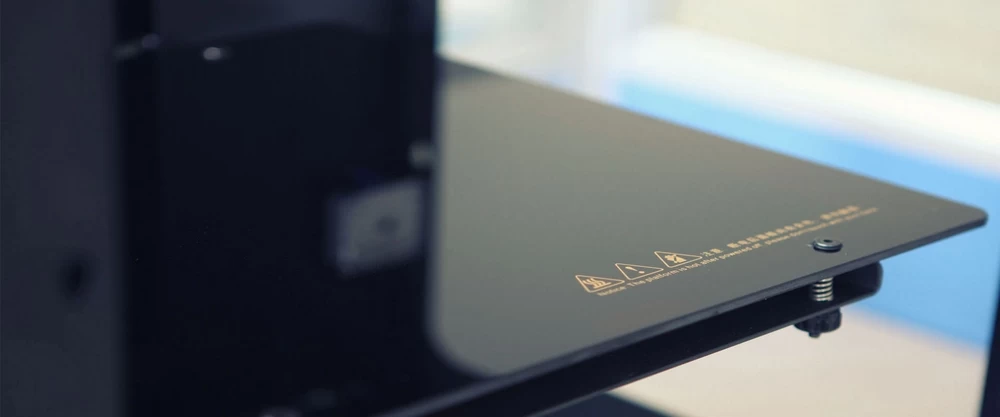

The printer has mico-crystal platform so that can support hight thermal efficiency, you can set the parameters to turn off the hot bed automatically after the specified number of layers.

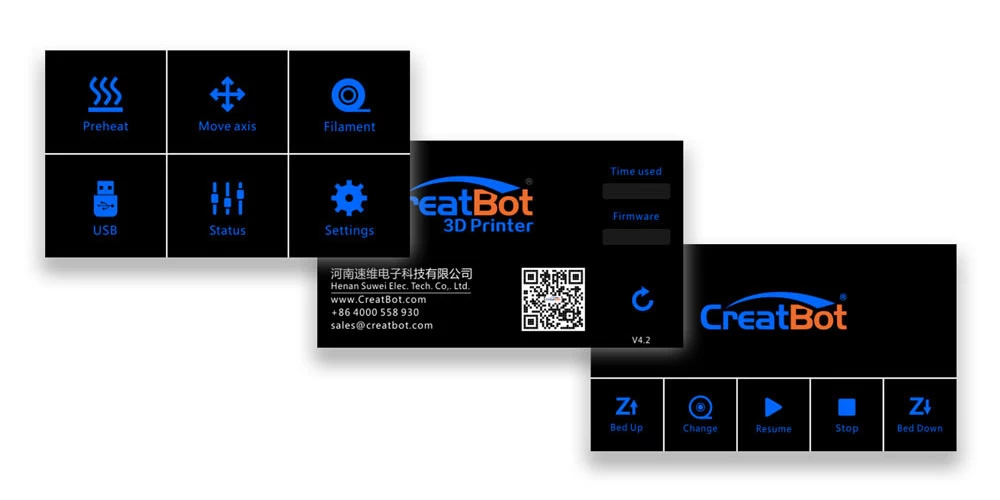

The printer has a 4.3" touch screen, more easy to operate. We also provide One-Key to preheat, print, home as well as other shortcut keys..
The stepper is separated with the hotend, so that the hotend is even lighter, smaller and will has less inertia of movement, also greater space utilization.

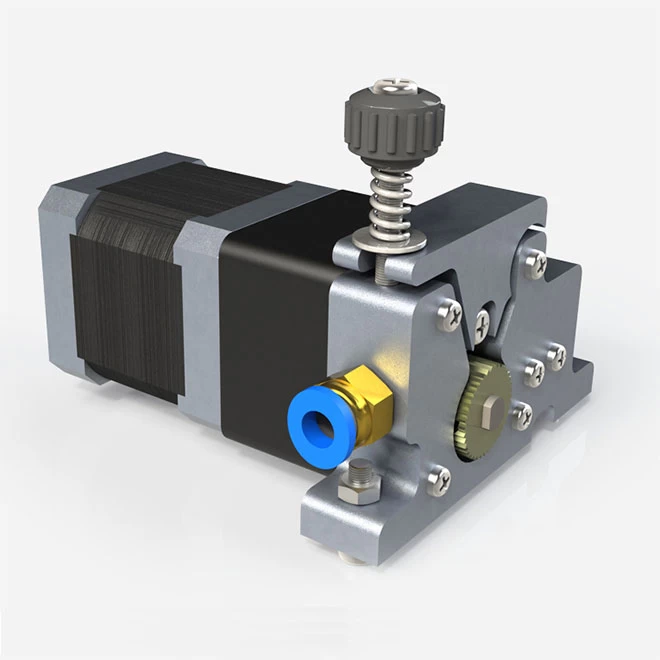

Geared motor can reduce speed intelligently and it support super torque so that it can feed filament in high precision without slipping and delay when withdrawing the filament.

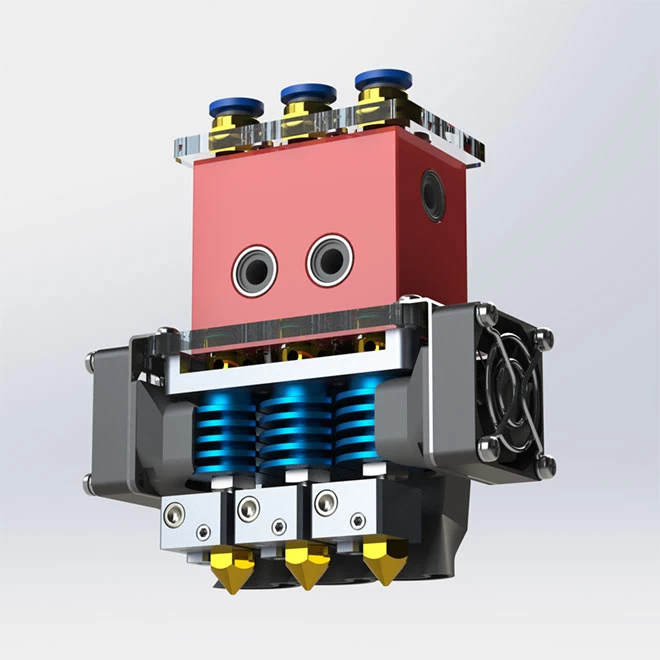

Support three color printing, support printing sort of materials using triple nozzles

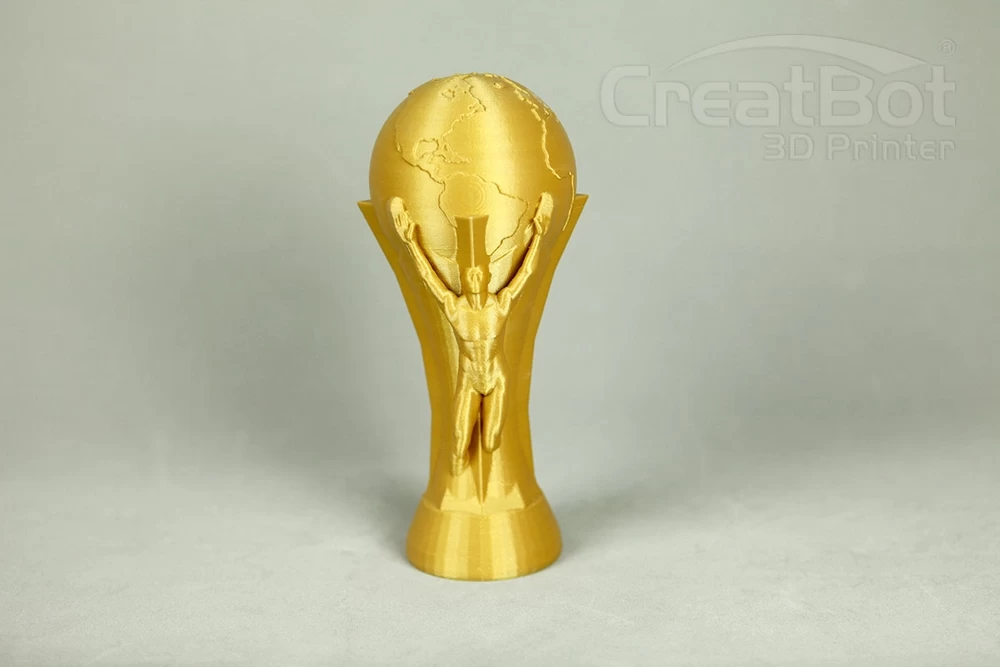

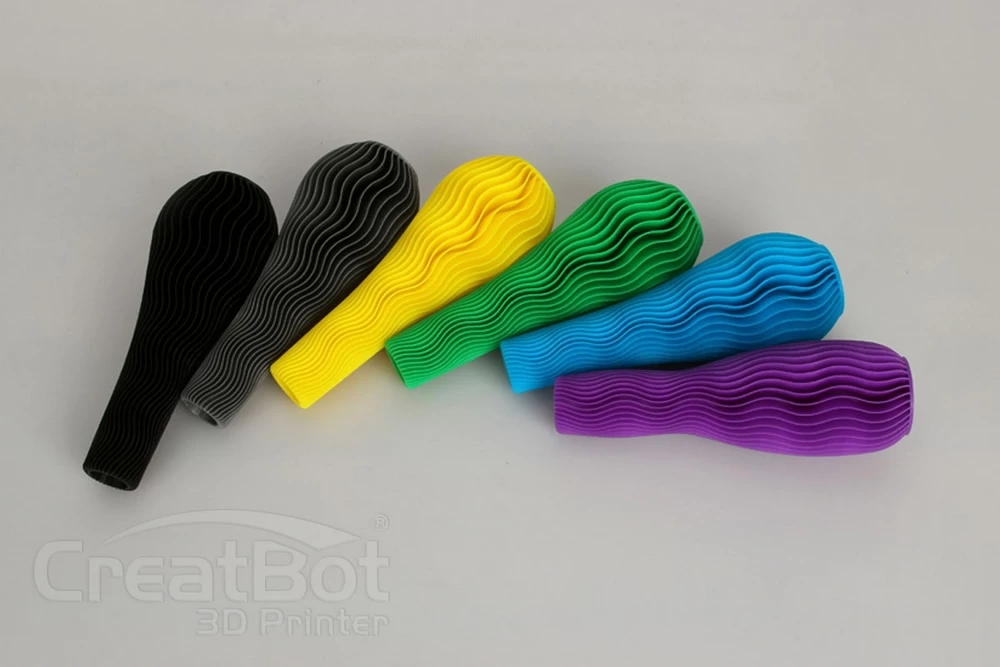

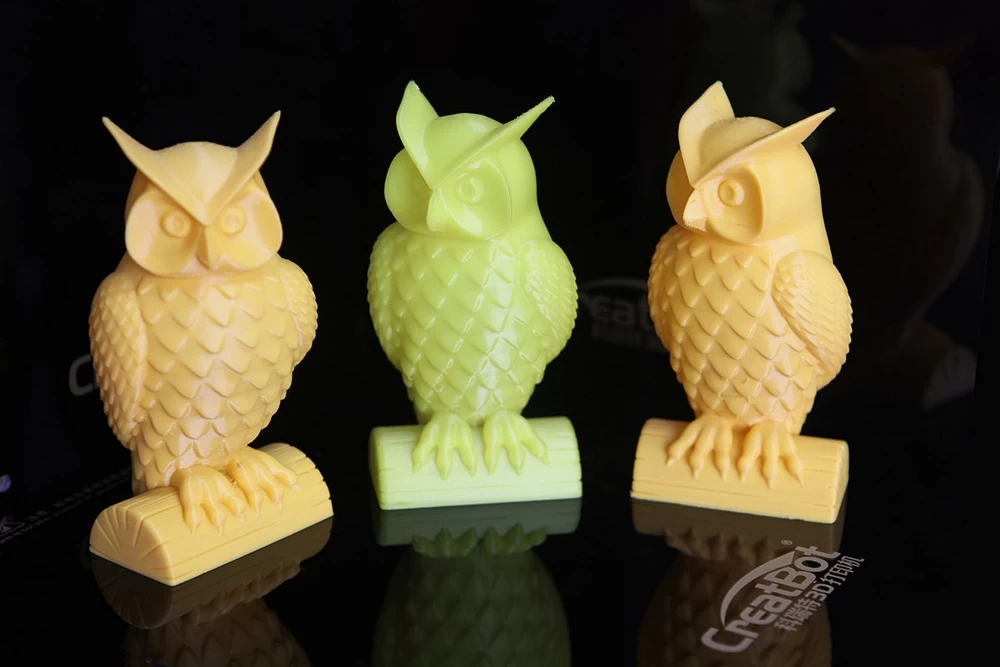

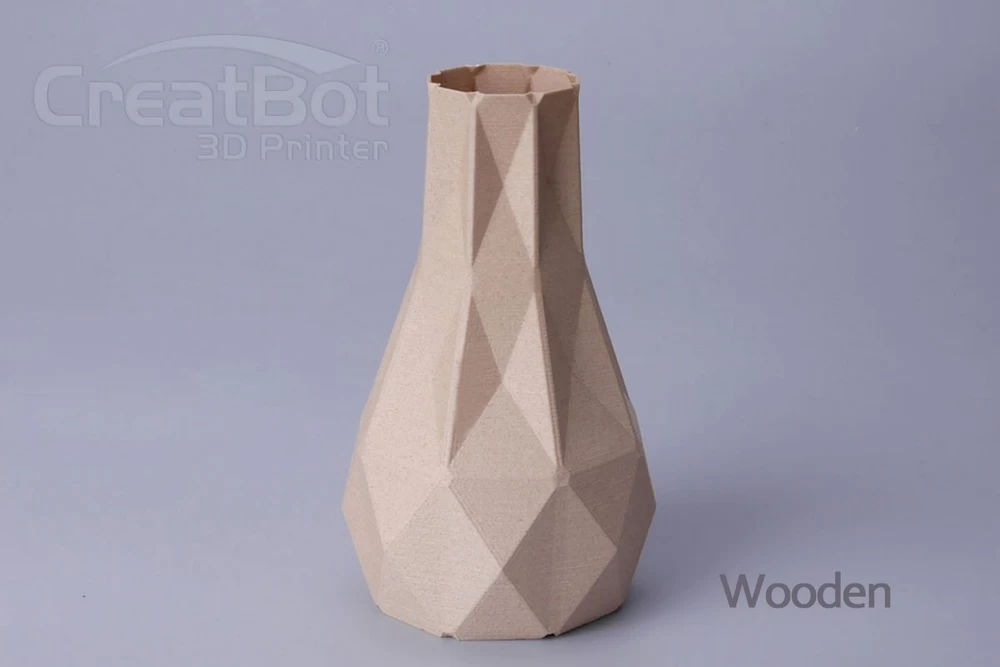

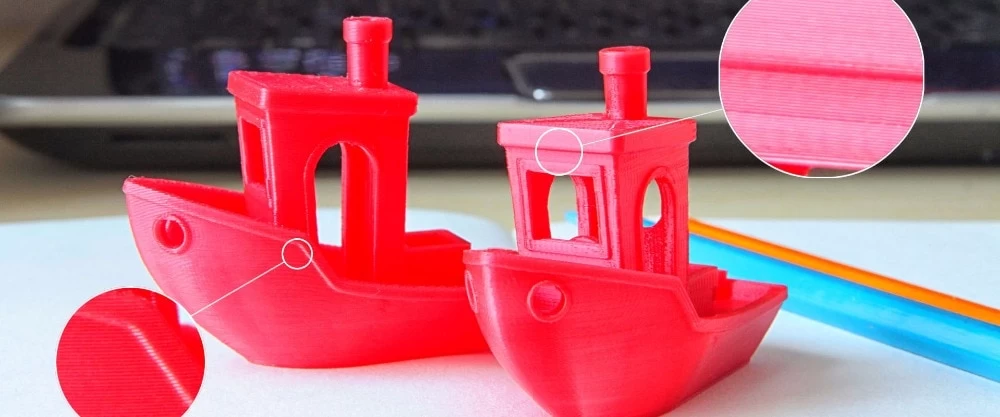

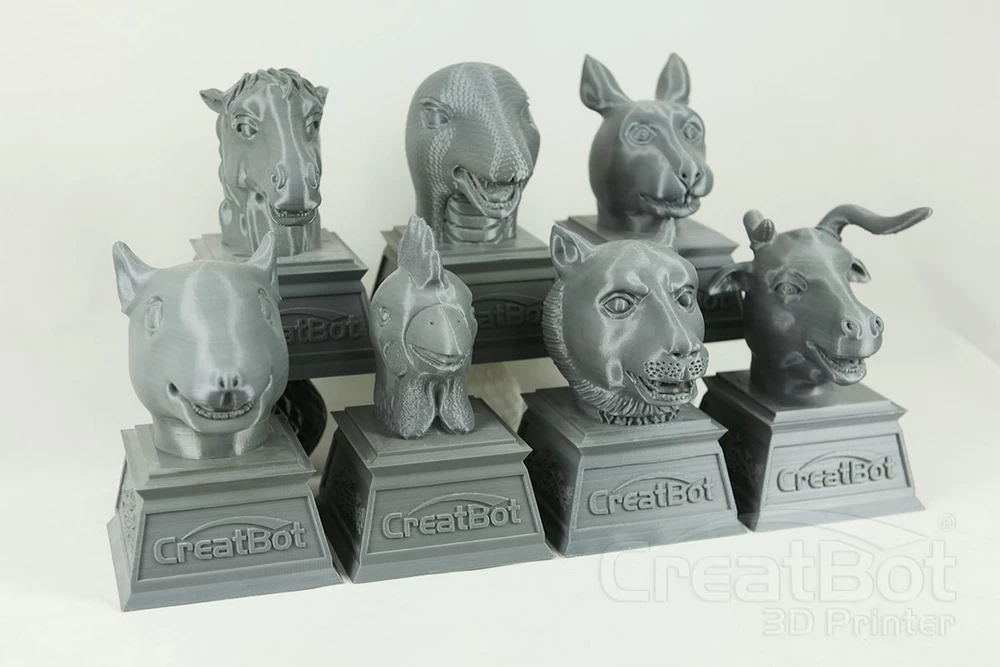

Some of the showcase printed parts from the machine
Fused Deposition Modeling
300*250*300mm (DX)
300*250*520mm (DX Plus)
* 3 nozzles build width: 280mm
Double (Max.3)
0.05mm
0.02mm
3.0mm (1.75mm optional)

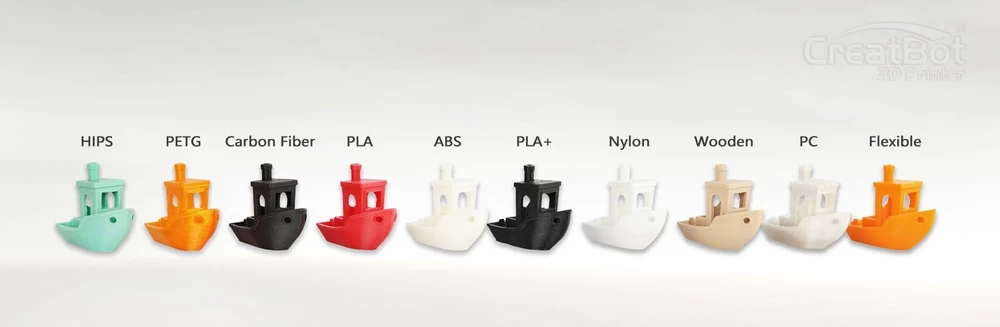

PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PTEG, HIPS, PP, Flexible, TPU, PVA, etc.
0.4mm (0.3, 0.5, 0.6, 0.8, 1.0mm)
GCO, GCODE
15-32°C
350°C
100°C
45mm/s
120mm/s
200mm/s
Power-Coated Steel, Aluminum Casting for Motion Components, POM
Glass Ceramic Panel
Factory Leveled, Adjust Manually
Geared motor (1:10 rate)
1.8° Step Angle with 1/16 Micro-stepping
12.7 Microns
1.25 Microns
100-240V, 50-60Hz
300W
128*64 LCD with Multi-language
ATmega 2560
USB Disk
USB
CreatWare Multi-language
STL, OBJ, AMF
Windows (7,8,10)
Mac OS X
Save data when power is off
Pause printing when filament run out
Turn off the power automatically when printing is complete
420*380*570mm 25Kg (DX)
420*380*790mm 30Kg (DX Plus)
550*500*670mm 35Kg (DX)
550*500*870mm 40Kg (DX Plus)

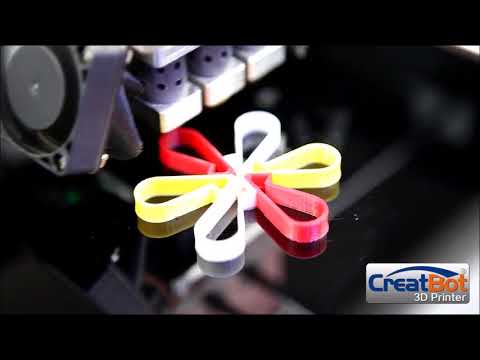

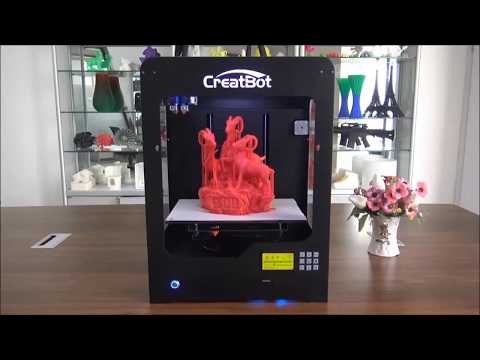

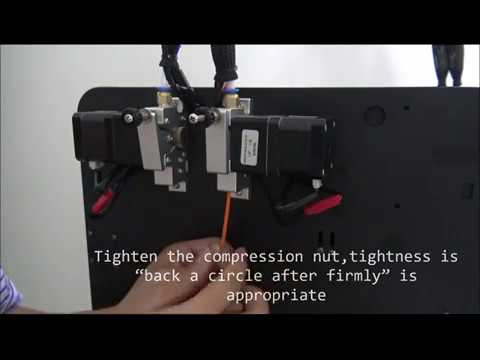

Watch more videos below about dx/dx plus in action
Warehouse | Estimated Shipping Time |
---|---|
China Warehouse: | 7 to 11 days |
Product Condition | |
Item Condition | New |
Manufacturer Warranty | 6 Months |
Printing Specifications | |
Print size ( X Y Z ) | DX: 300*250*300 mm DX Plus : 300*250*520 mm |
Print Speed | 30 to 200 mm/sec |
Layer Resolution | 30 to 100 microns |
Print Precision (Layer Thickness) | 0.04-0.3mm |
Filament Diameter | 3.00 mm (1.75 mm optional) |
Nozzle Diameter | 0.4 mm (Standard) 0.3, 0.5, 0.8, 1.0 mm (Optional) |
Filament Compatibility | PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PTEG, HIPS, PP, Flexible, TPU, PVA, etc. |
Print Plate Size | 310 x 290 mm |
Print in dual color | Yes |
Print in multi color | Yes |
Mechanical Specifications | |
Touch Screen | Color Touch Screen 128*64 LCD with Multi-language |
Chassis | Power-Coated Steel, Aluminum Casting for Motion Components, POM |
Extruder Type | Gear motor |
No.of Extruders | Single/Dual/Triple |
Print Plate (Build Platform) | Microcrystalline Ceramic Panel |
Software Specifications | |
3D Printing Software | CreatWare Multi-language |
Supported File Formats | STL, OBJ, AMF |
Operating System | Windows, Linux,Mac OS |
Temperature Specifications | |
Extruder Temperature | 400 degree C |
Electrical Specifications | |
AC Input | 110V or 220V |
Power Requirements | 50 Hz |
Connectivity (Interface) | USB, SD card Supported |
Electronics Specifications | |
Electronics (Motherboard) | ATmega 2560 |
Shipping specifications | |
Machine weight | DX: 30 kg DX Plus : 35 kg |
Shipping box weight | DX: 45 kg DX Plus : 52 kg |
Machine Dimensions | DX: 420*370*680mm DX Plus : 420*370*790mm |
Shipping box dimensions | DX: 550 x 510 x 650 mm DX Plus: 550 x 510 x 910 mm |
Shipping Location | China |
Lead Time (Processing/Handling Time) | 7 Business Days |
