Fysetc Venture XL Large Voron 2.4 Kit

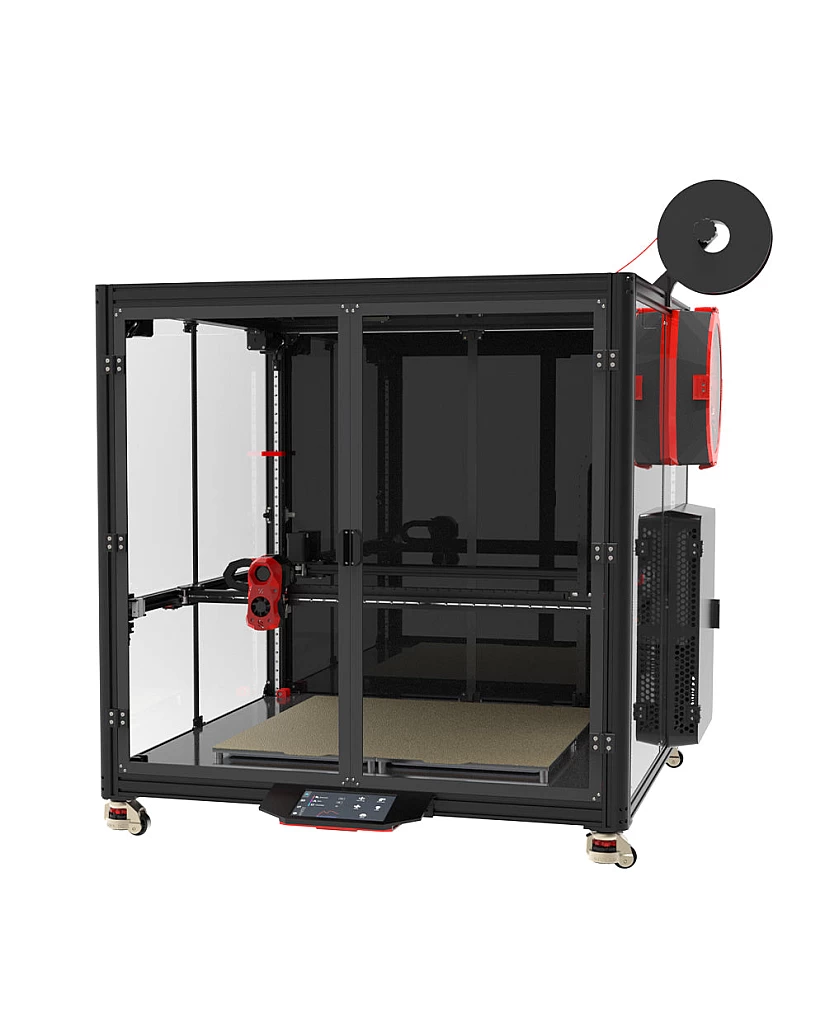

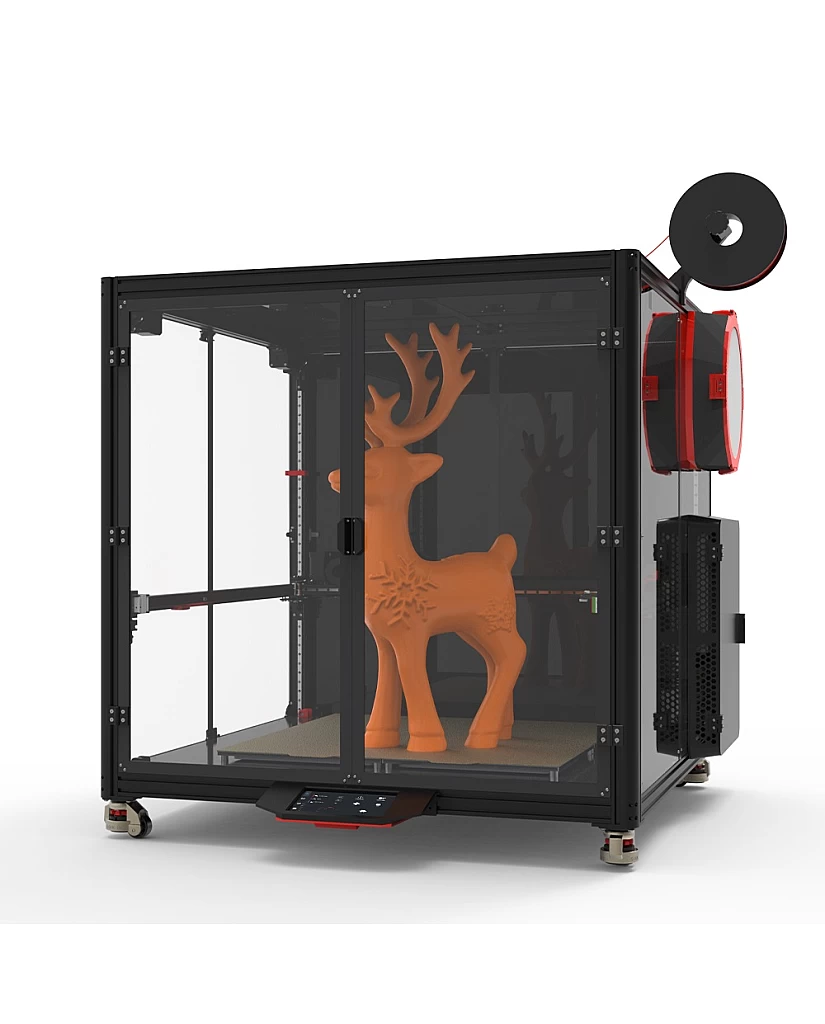

Fysetc Venture XL Large Voron 2.4 CoreXY 3D Printer Kit

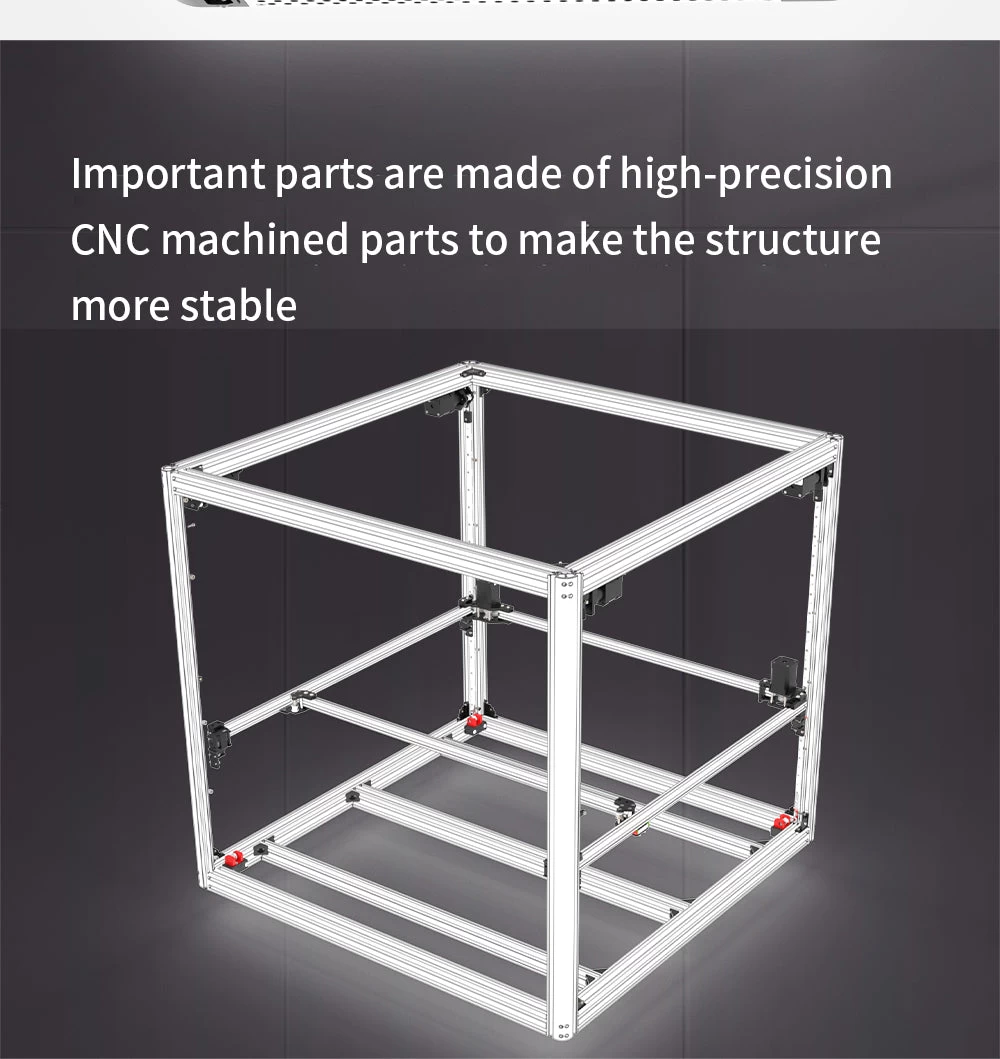

The Venture XL, a 600mm3 coreXY printer kit, is inspired by the classic VORON V2.4. The key components of this kit are high-precision CNC-machined parts, demonstrating outstanding quality. Meanwhile, it comes with the necessary printing components and tools considerately, and the print head and control box have been pre - assembled, enabling you to start the installation process effortlessly without the need to prepare additional parts. Once the installation is completed, you can immediately engage in the printing work and enjoy an efficient and convenient printing experience.

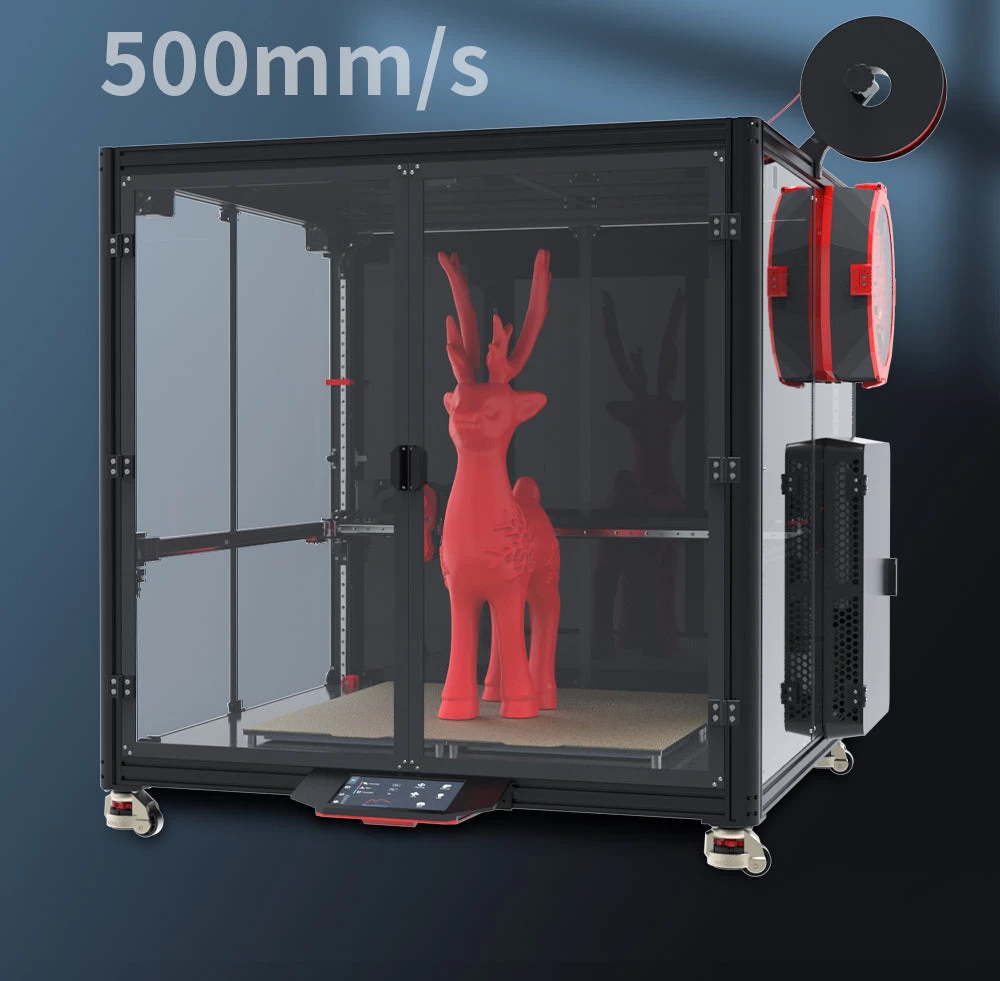

It is equipped with a 550Mhz H723 single - chip microcomputer, an RK3568 with 4 cores at 2.0GHz, 2GB + 32GB for the host computer, a TMC5160 high - performance stepper motor driver, and a 7 - inch high - definition capacitive touch screen. With a printing speed of up to 500m/s and an acceleration of 50000, it not only brings an extremely fast printing experience but also creates a comfortable operation feeling for you.

The size of the machine frame is designed with reserved installation spaces for IDEX and AWD, providing you with broad possibilities for upgrade and modification, which is highly playable. Whether you are pursuing higher performance or personalized customization, you can find satisfaction here.

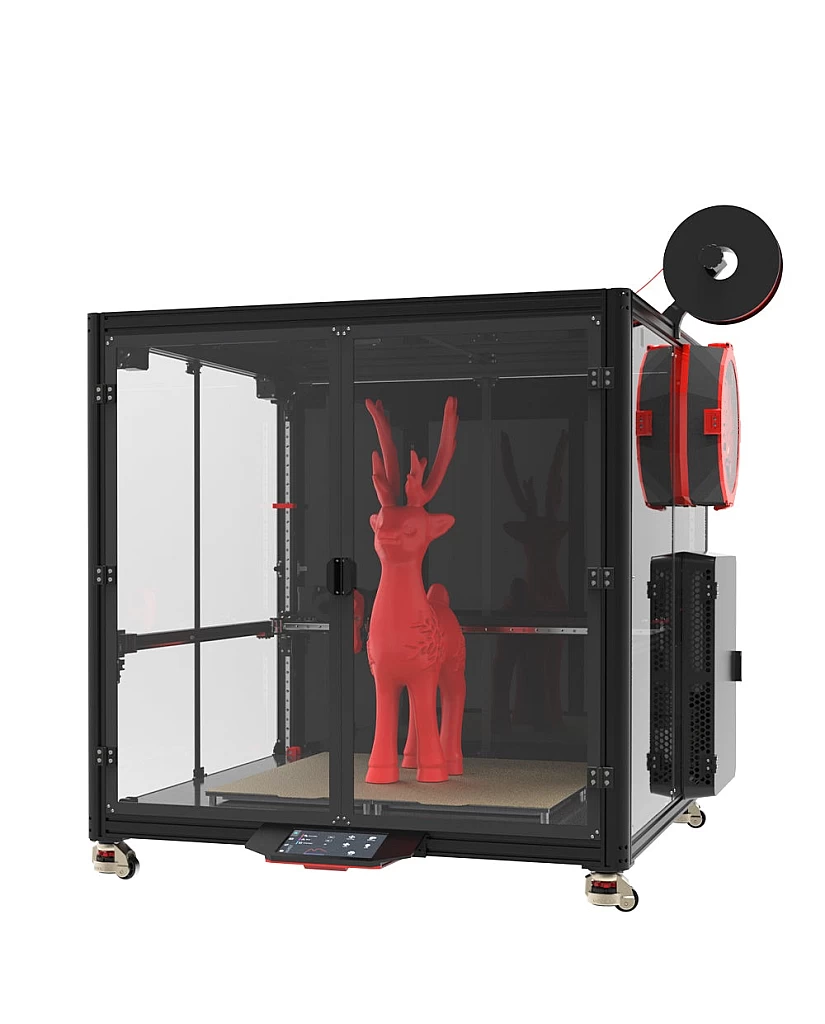

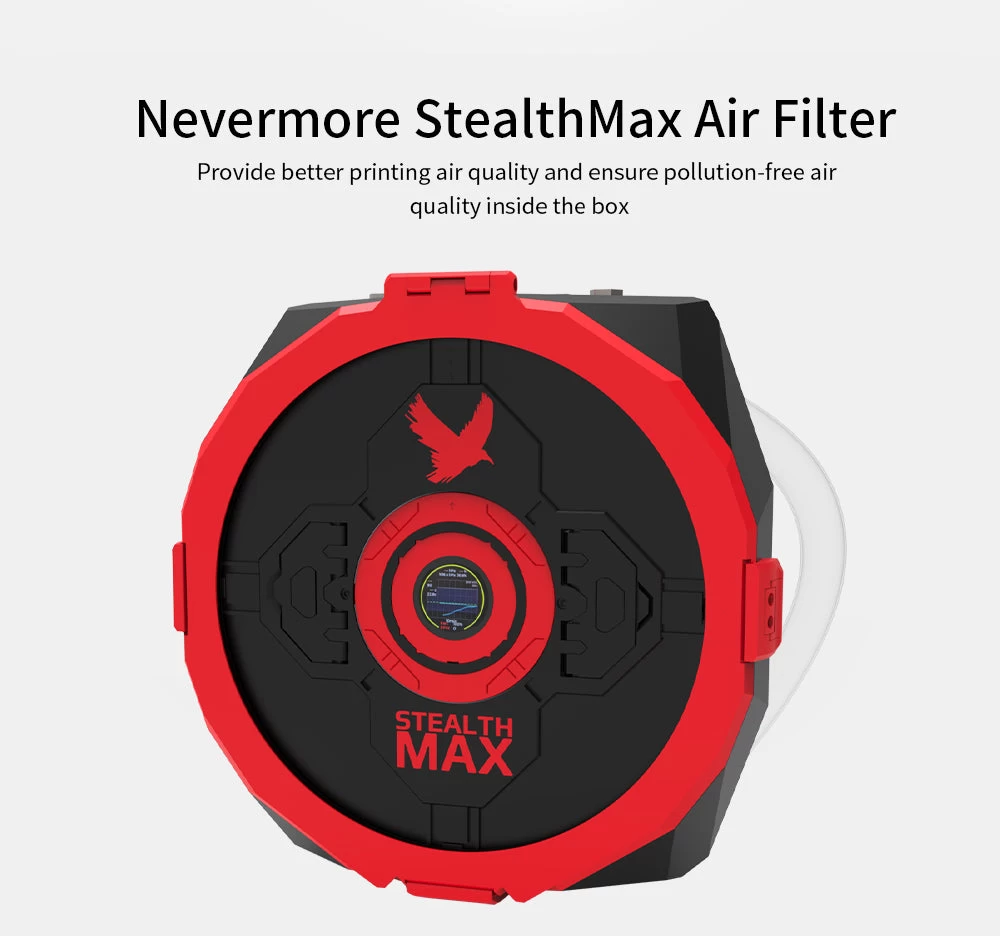

In addition, the complete enclosure design provides an insulated space for the printer, effectively maintaining the stability of the printing environment. At the same time, it also has powerful air - purification capabilities. It can support the printing of various consumables and, more importantly, minimize the potential threat of plastic particles to your health to the greatest extent, creating a safe and comfortable printing environment for you.

Main Features:

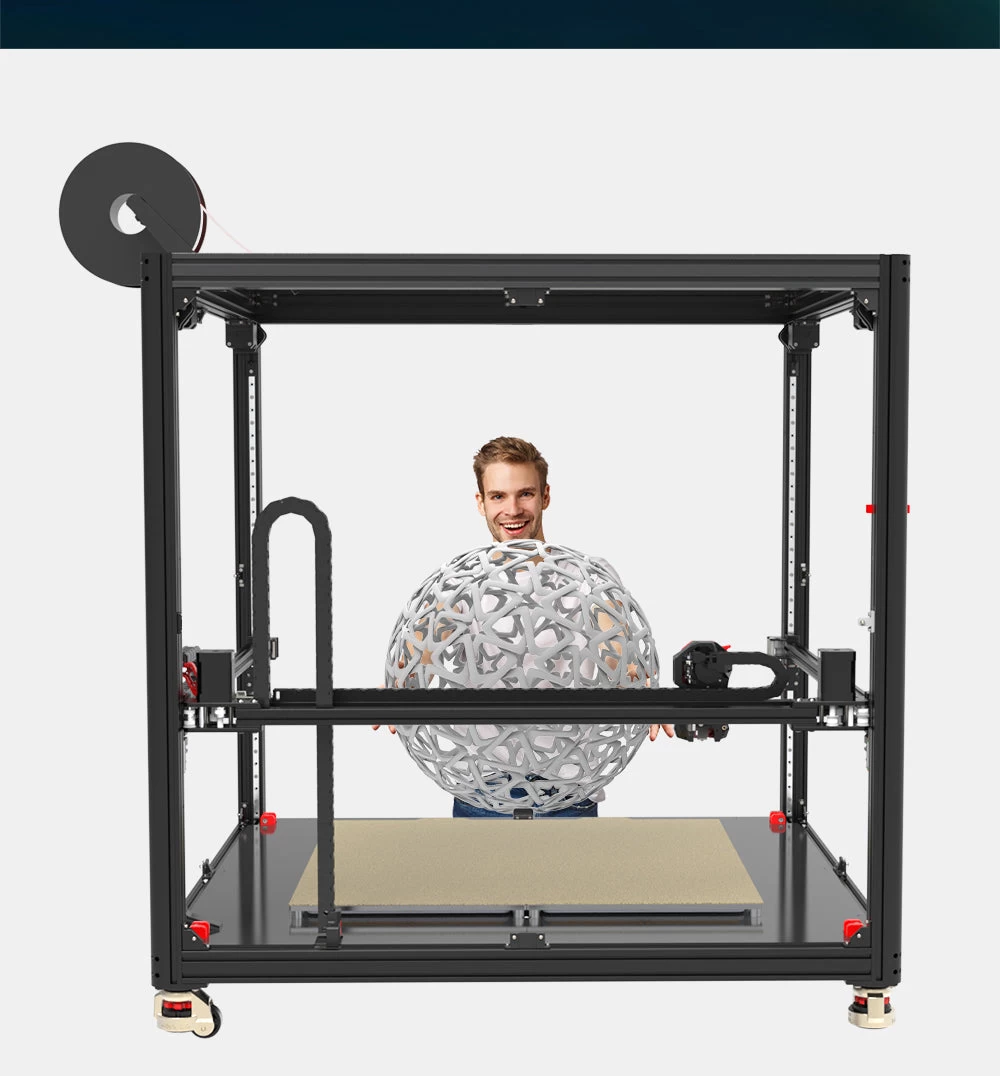

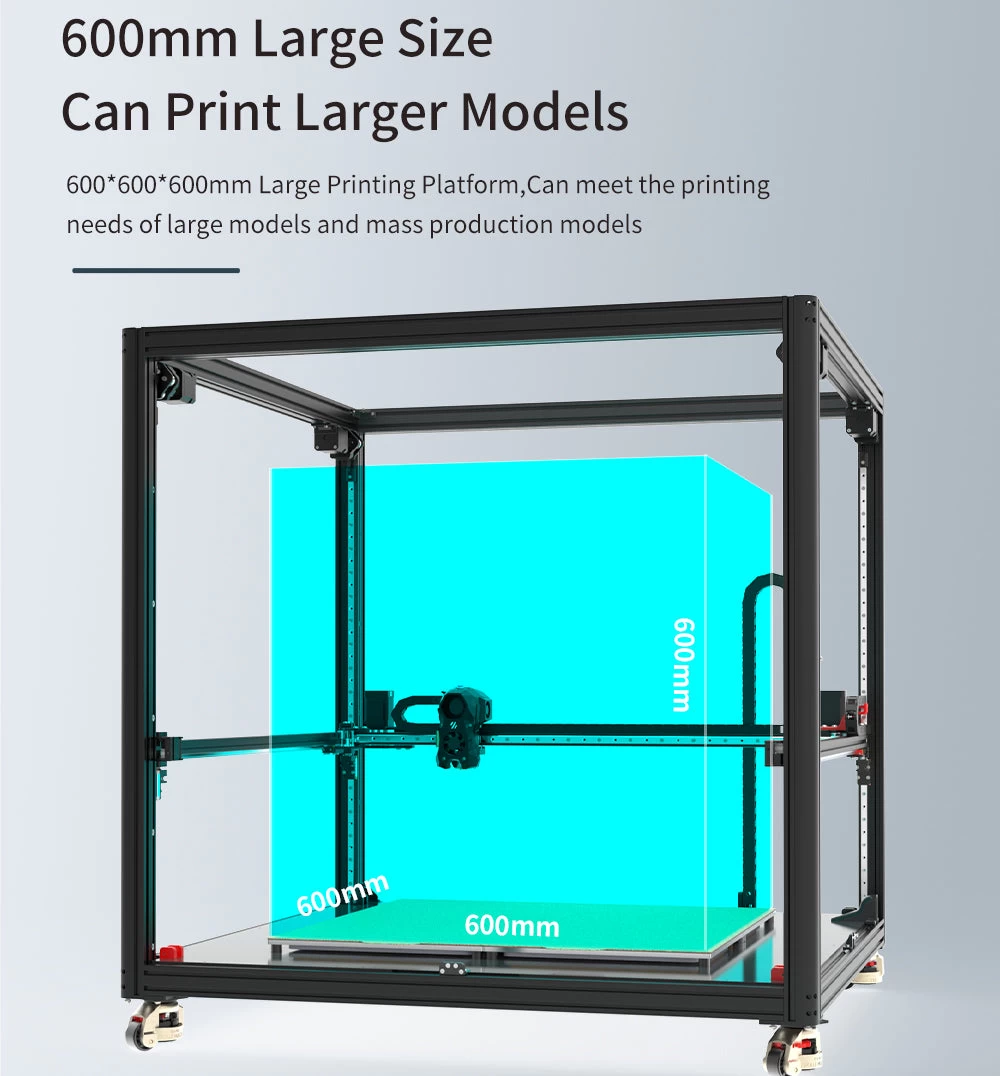

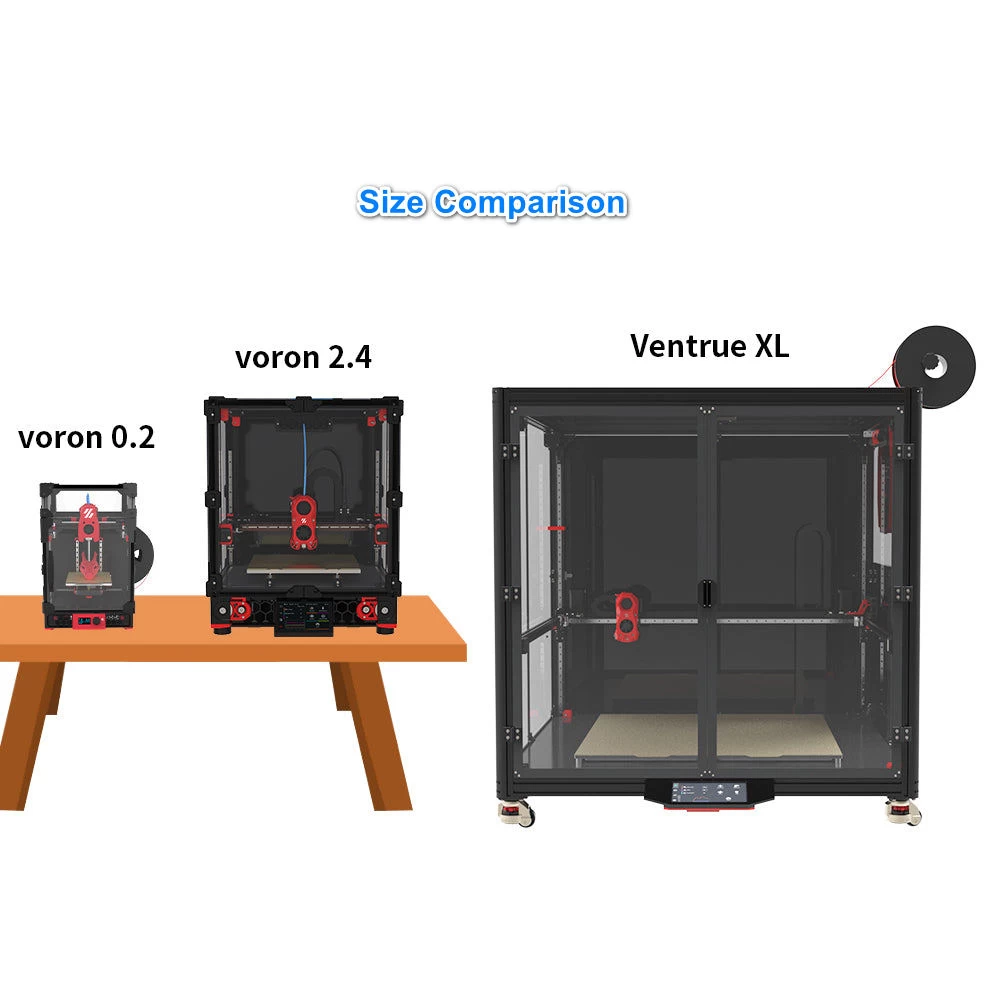

• Venture XL build volume: 600mm x 600mm x 600mm
• RK3568 (2+32GB) 4 core A55 2.0GHz Host
• Spider Pro 2.0 Controller, 550Hz H723
• SB Comobo V2 control board (Via CABUS)

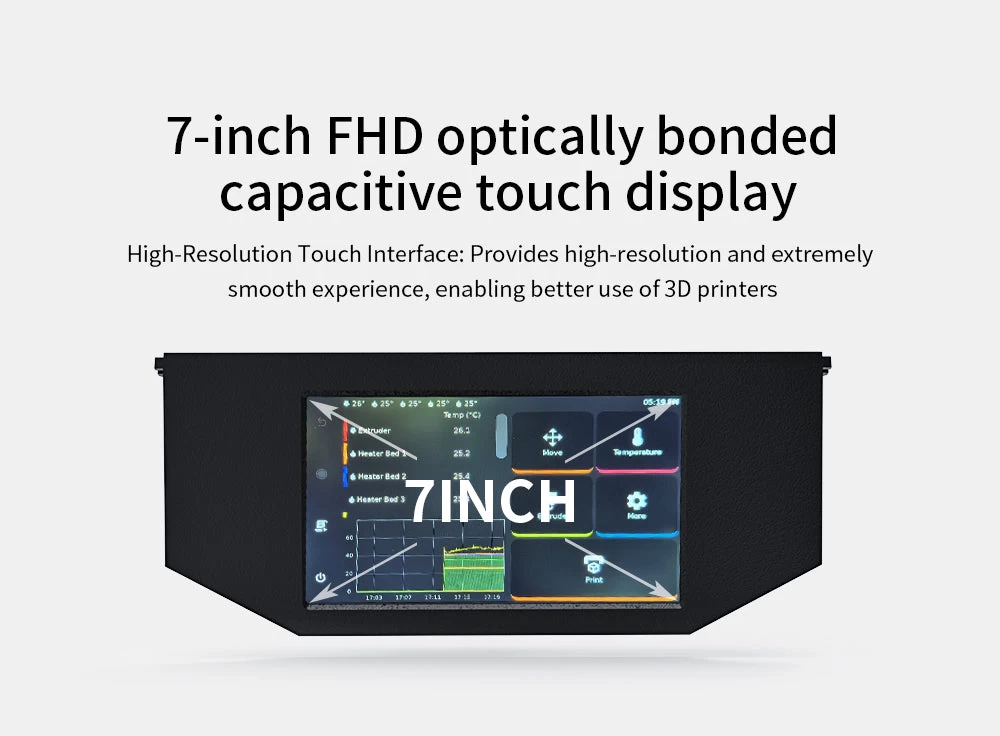

• 7-inch FHD optically bonded capacitive touch screen
• RGB lighting system , Horizontal RGB lighting (84 LEDs) & SB LOGO RGB (10 LEDs) & Vertical RGB lighting (2x84 LEDs)
• Dual 350W PSU, 48V+24V
• BIG5160+TMC2209 stepper motor driver
• High-power 63A/40A contactor

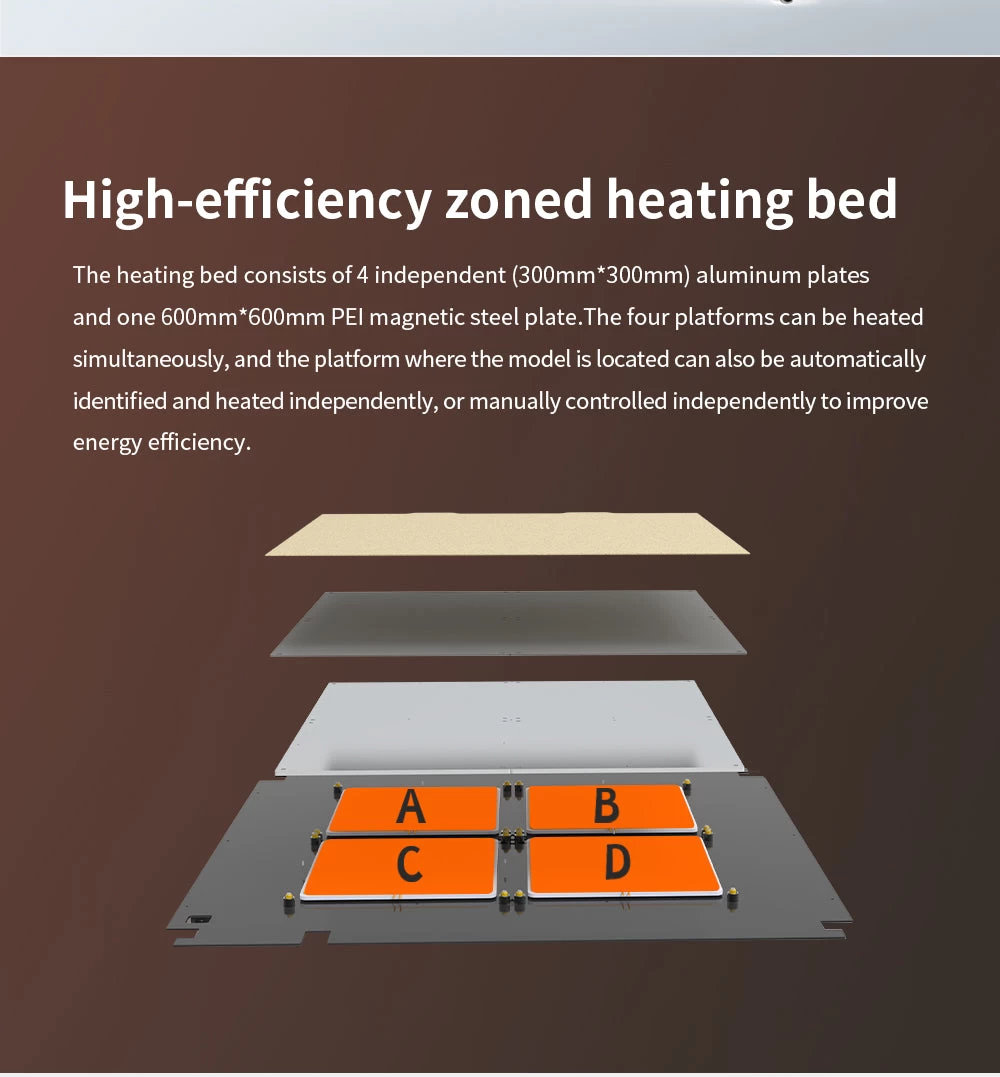

• Four-zone independent control hot bed

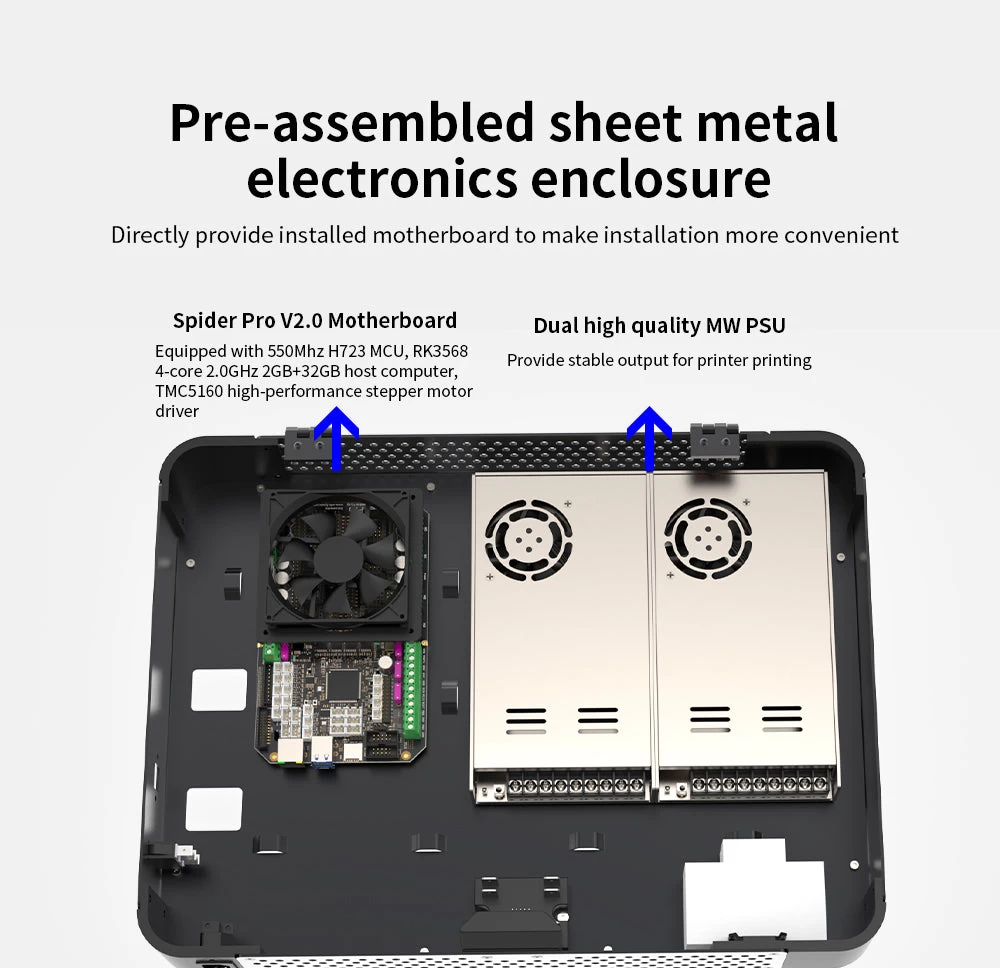

• Pre-assembled independent control box
• 4xZ reduction motor
• 2.5A high temperature, high torque XY motor

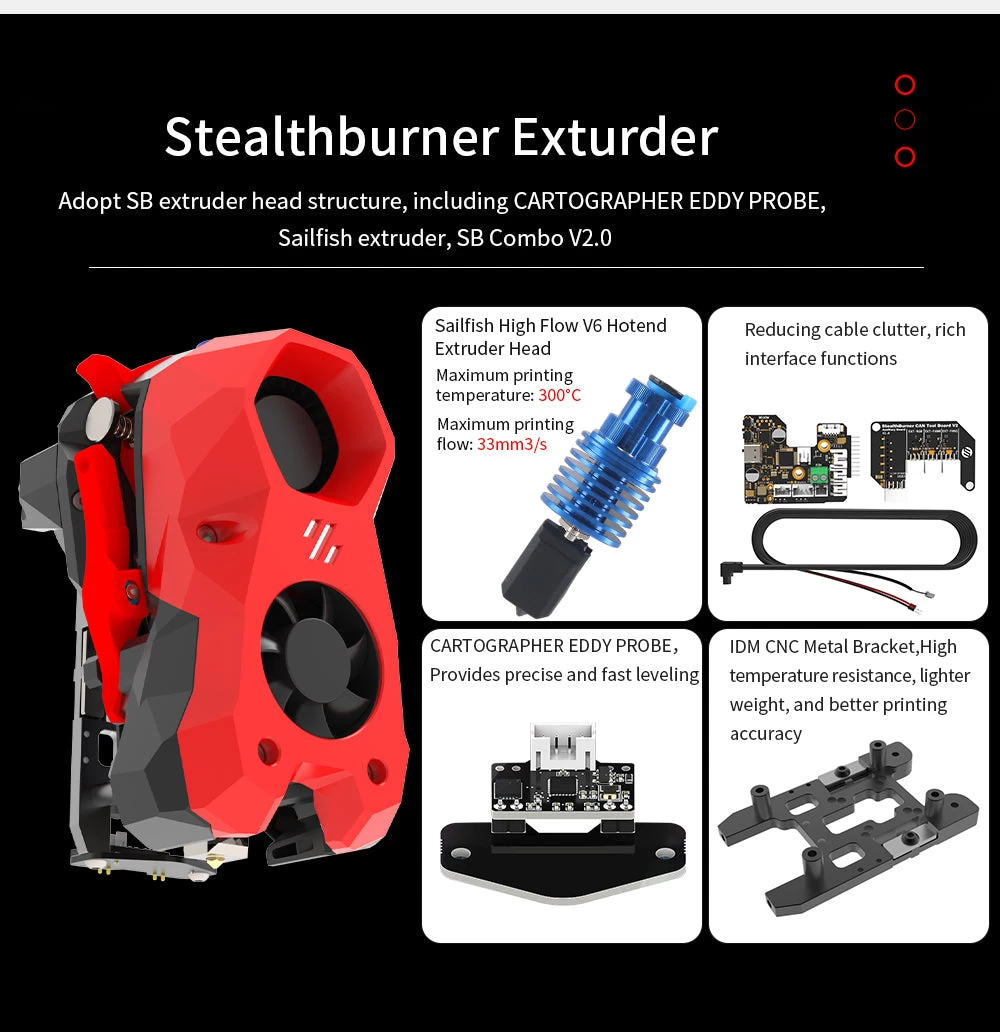

• Cartographer 3D Eddy Current Sensor
• Filament sensor
• Logitech C270 Camera

Bill of Materials:

https://github.com/FYSETC/Venture_XL/blob/main/BOM.md

Specifications:
