Fysetc Voron V0.2 Pro R1 CoreXY 3D Printer Kit

Fysetc Voron V0.2 Pro R1 V1.1 CoreXY 3D Printer Kit

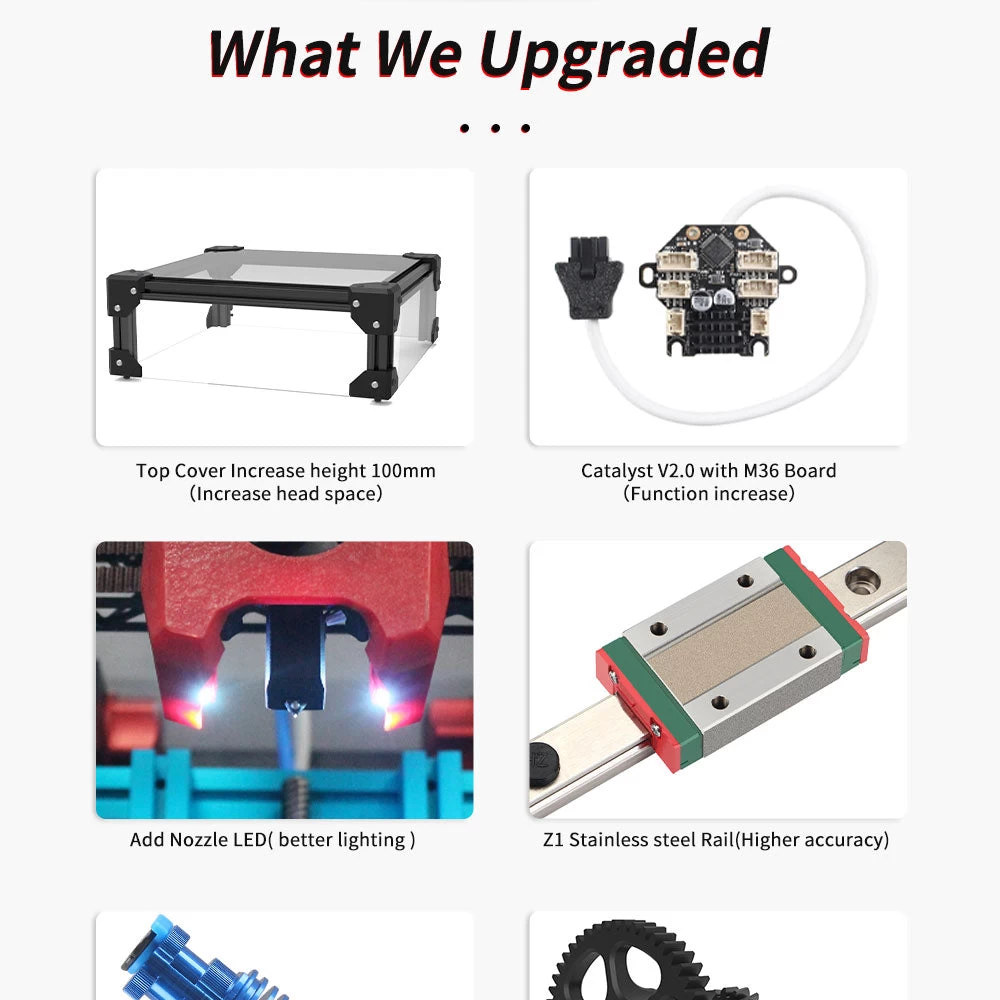

V0.2 R1 V1.1 updates w.e.f from March 2024:

• The top cover is raised to 100mm to increase the head space.2. The mainboard and tool board are upgraded to Catalyst_Kit_V2.0 and M36, with added functions and good performance.
• Add nozzle LED lights to provide better lighting for the box

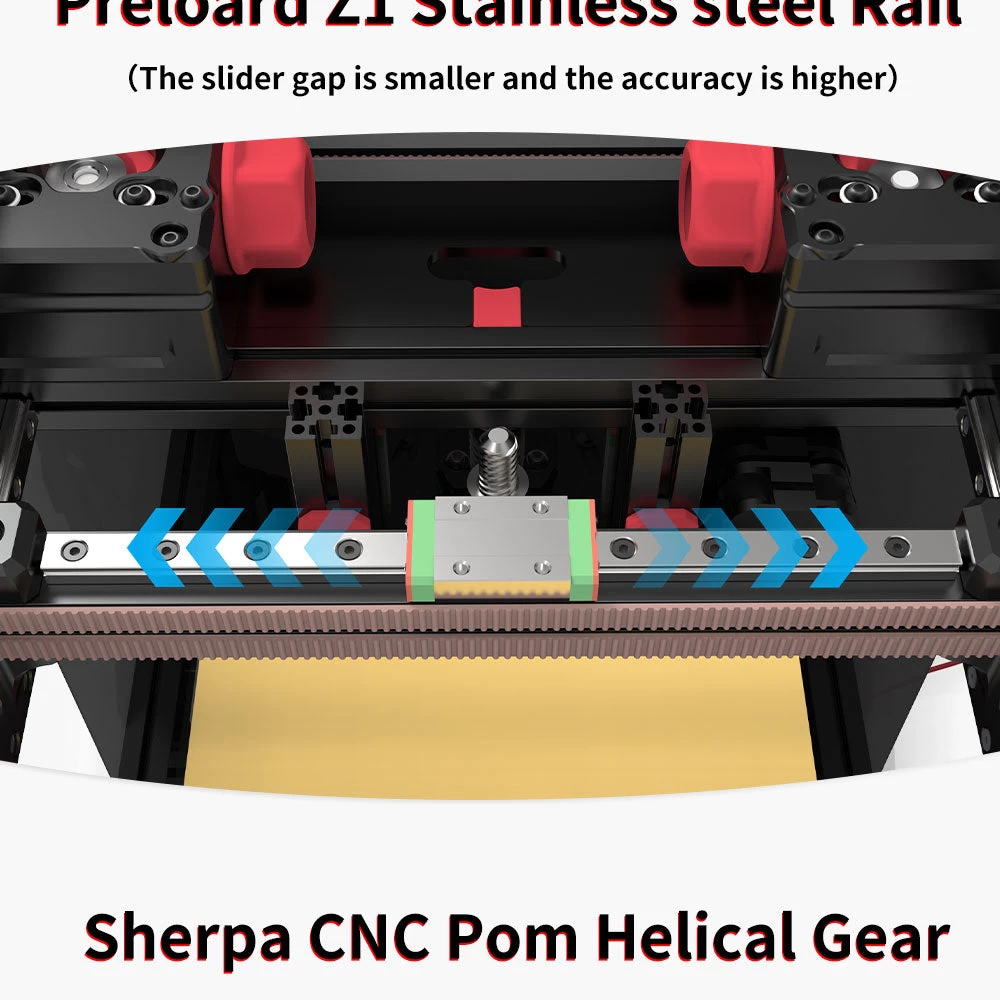

• The linear rail is made of lightly preloaded Z1 stainless steel, with smaller slider clearance and higher precision.

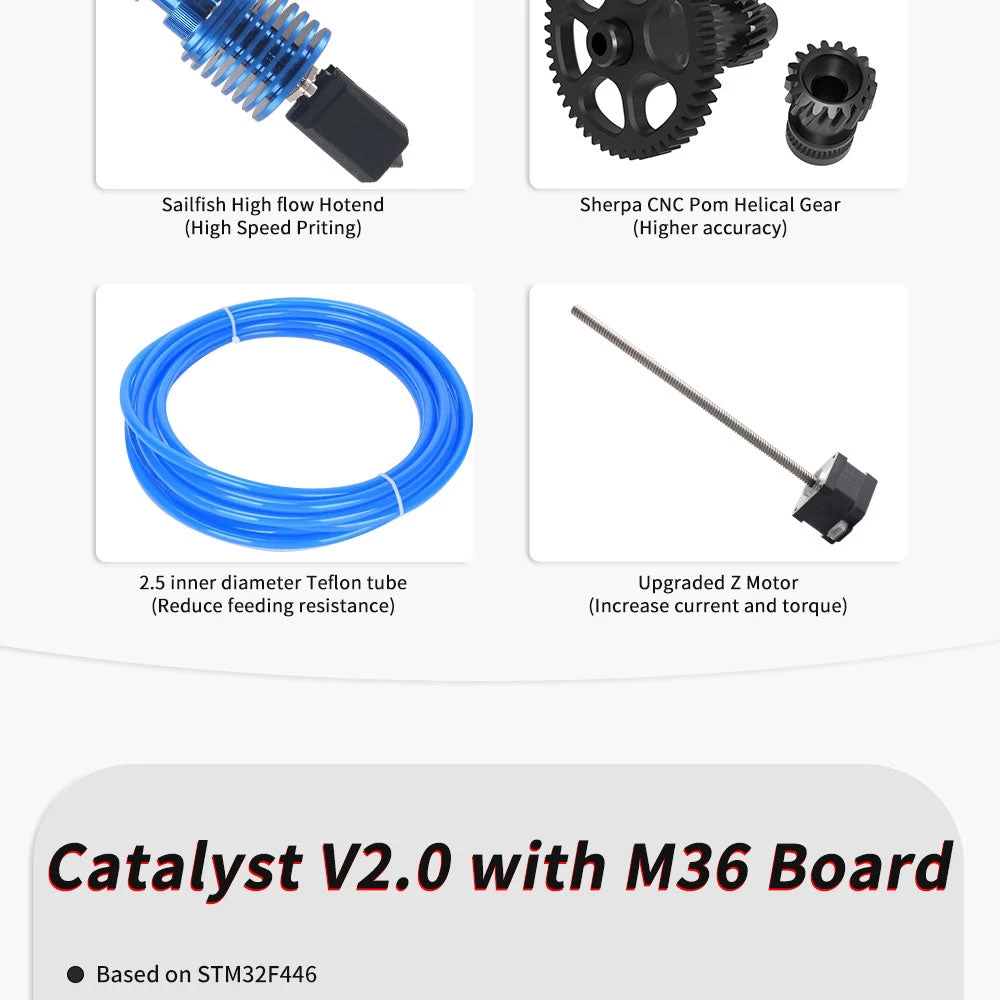

• The extrusion head is upgraded to the swordfish extrusion head, which has higher extrusion flow and improved printing speed.
• Upgrade Sherpa integrated nano-hardened steel gears with better concentricity, higher precision and more wear resistance
• Adding 2.5 inner diameter Teflon tube can reduce feeding resistance

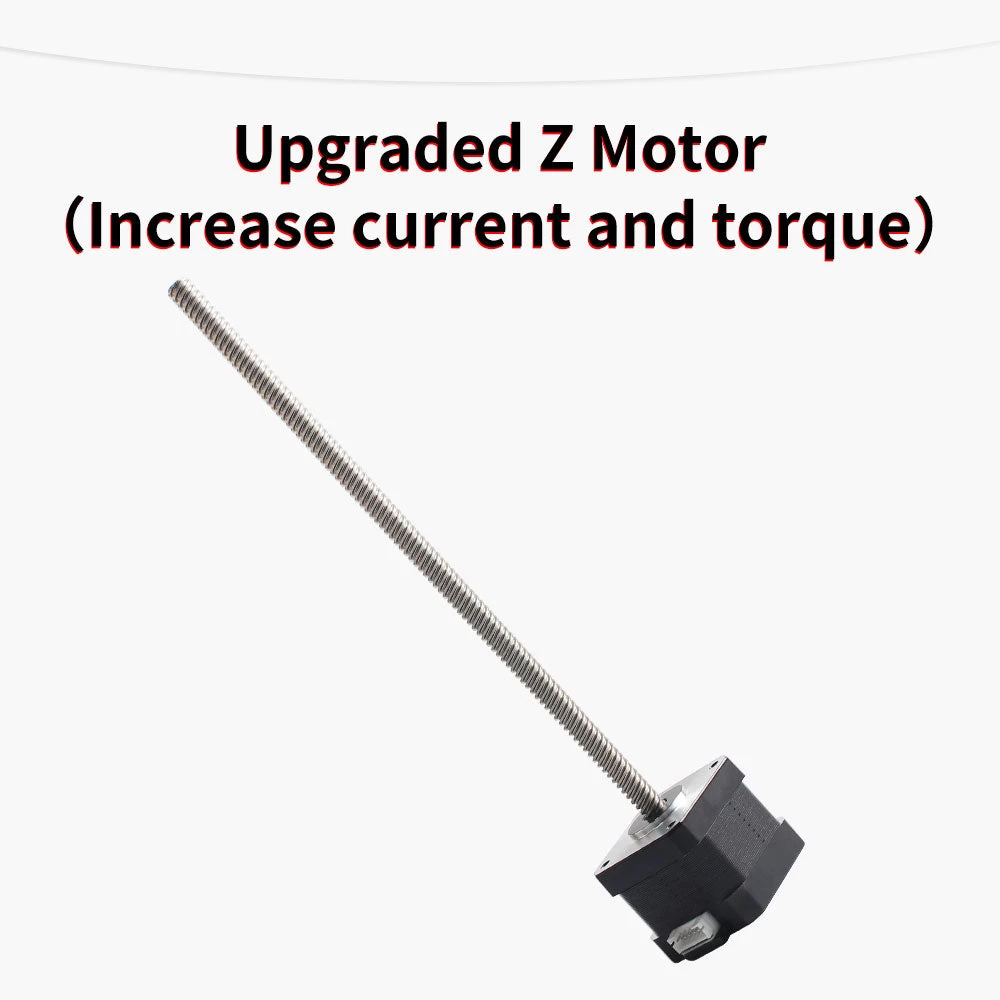

• Upgrade the Z-axis motor to increase current and torque.

V0.2 R1 Version Updates w.e.f from Aug 2023:

• A limit switch is added in the kit for material breaking detection
• A small bearing and Bowden joint are added in the screw box
• The printout is updated to the R1 version
• The air duct of the MINISB shell is enlarged
• Added broken material detection function to the right rear foot
• Reinforcement of Z limit fixing seat
• Change the child lock to an inner hexagonal style
• Use the wiring diagram of the latest version of R1.

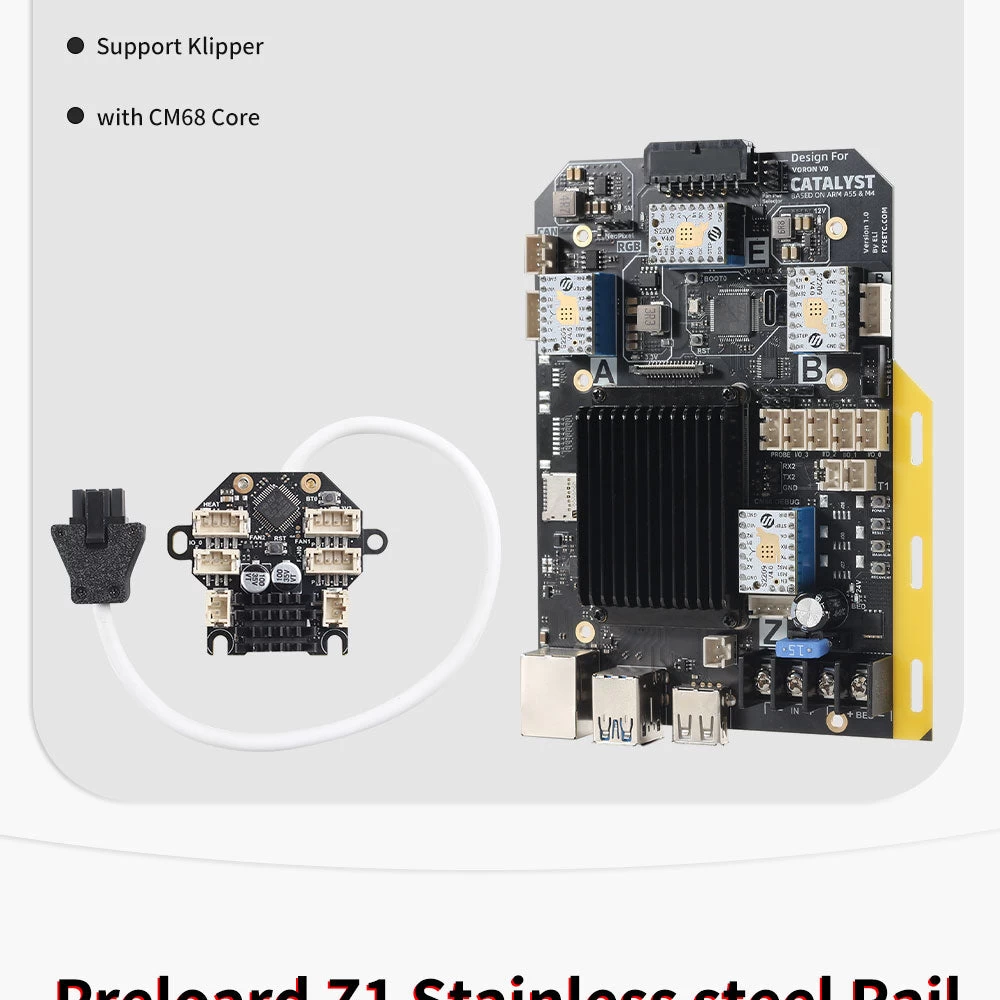

• The motherboard is now Catalyst motherboard, which is CM68 Linux core board (based on RK3568, 2GB+32GB), Raspberry Pi 4 replacement. So you don't need to buy a Raspberry Pi anymore.

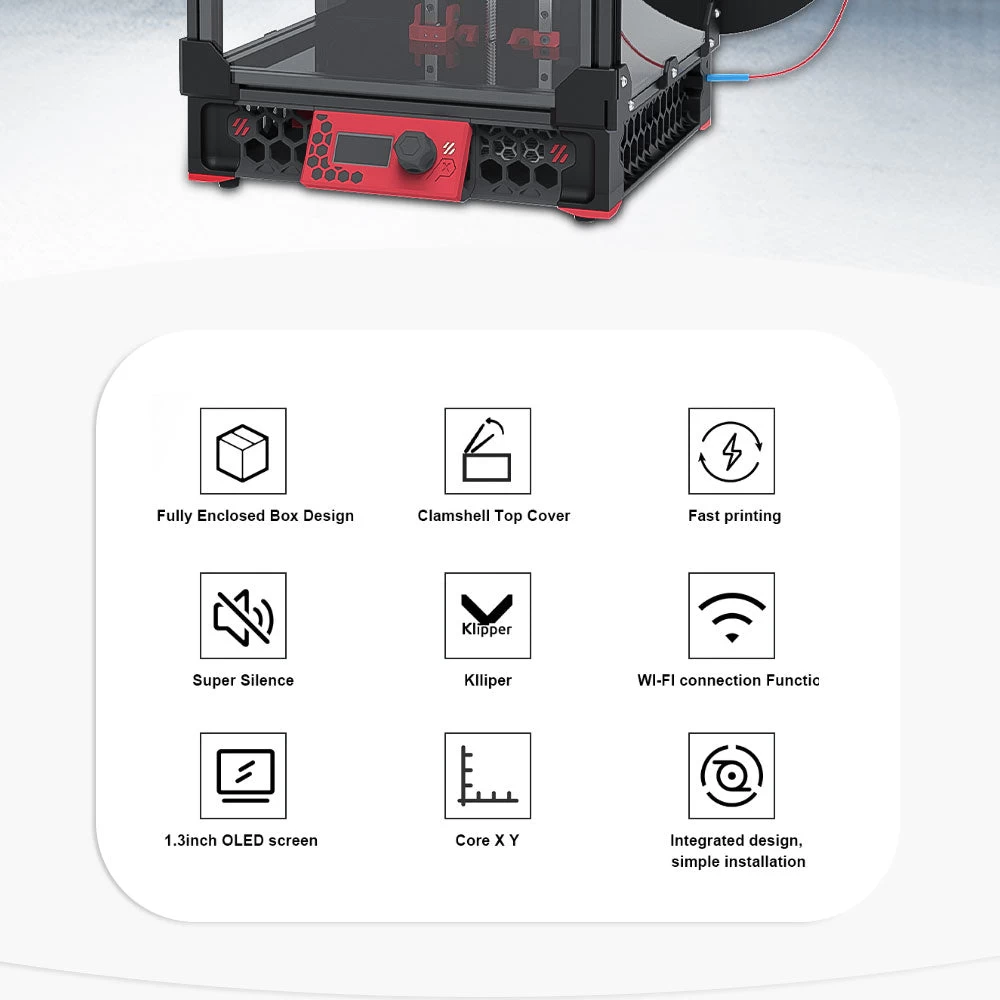

Main Features:

• Stock Open Source Voron V0.2 CoreXY design for stable, faster and better 3d printing.
• Small and exquisite appearance, high-precision finishing anodized custom profile frame, can support printing high-temperature consumables, such as: ABS, PC, etc.
• Clamshell top cover: The top cover can be opened at any time for more convenient maintenance

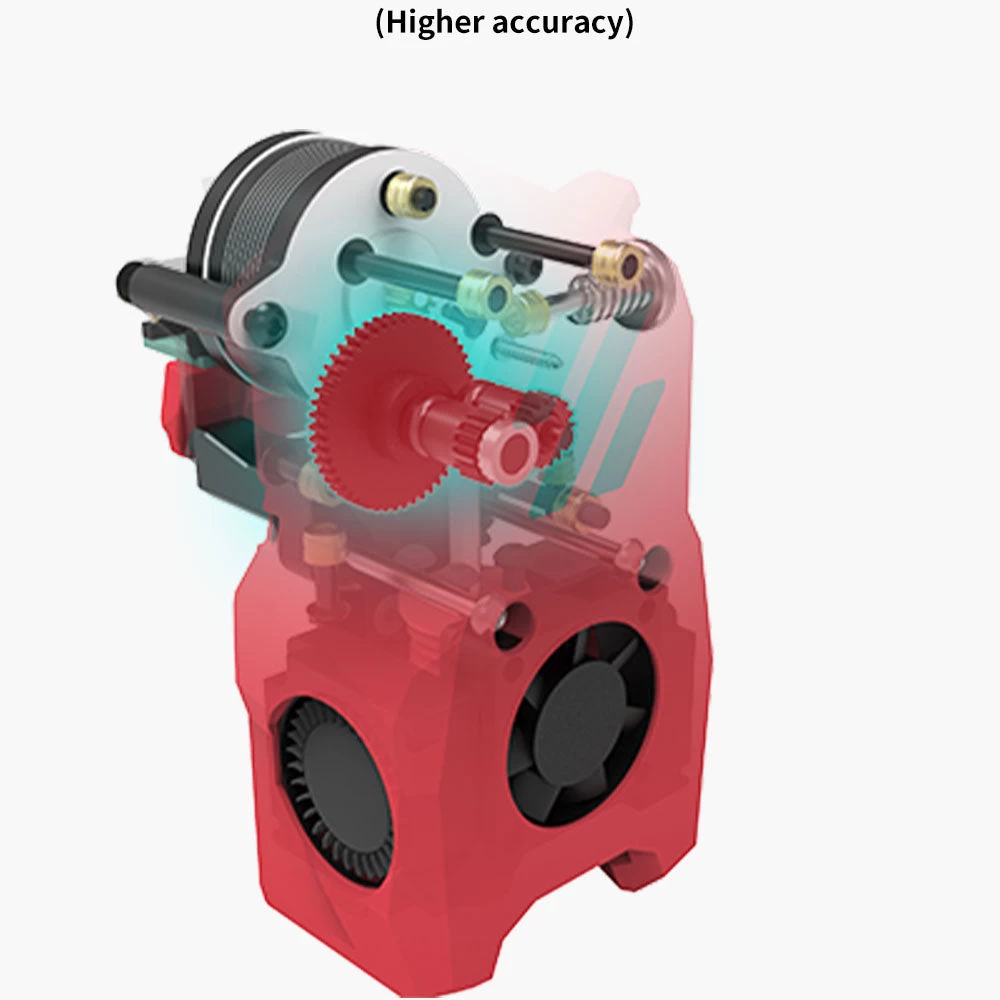

• The Newest Mini Stealthburner Extruder: Better Cooling improving the model surface printing quality. Upgraded Extruder More fast and stable extruder results.
• 1.3 inch OLED display
• Supports seamless wifi connectivity for faster file share.
• Full source details, BOM, User manual and software/hardware updates available in the github repository.


Basic parameters
1. Mechanical structure:
Frame: aluminum box structure
Printing platform: MIC6 thickened aluminum plate + elastic powder steel plate
2. Print parameters:
Printing technology: FDM
Forming size: 120x120x120mm
Print layer height: 0.05-0.3mm (use 0.4mm nozzle)
Maximum printing speed: 250mm/s (recommended printing speed 20-150mm/s)
Consumable Diameter: 1.75mm
Nozzle diameter: 0.4mm
Filament type: PLA, ABS, PETG, PLA-CF carbon fiber, PETG-CF carbon fiber, TPU, HIPS, Wood, fluorescent Filaments, transparent Filaments, etc. Provide default print parameters)
3. Temperature:
Maximum extruder temperature: 260°C (higher if using the all-metal version)
Maximum temperature of hot bed: 120℃
4. Software parameters:
Supported formats: STL, G-Code, AMF, OBJ
Input method: WiFi, ETH
Operating software: Simplify3D, PrusaSlicer, Cura, Repetier-Host
Operating system: WINDOWS/MAC OS/LINUX
Wi-Fi: support
5. Motherboard
Motherboard: Catalyst Motherboard
Display: Voron 1.3-inch OLED display
6. Power supply (MEAN WELL LRS-150-24):
Input: 110/220V, 150W
Output: 24V 6.5A
7. Dimensions & weight
Machine size: 240x242x382mm
Package size: 465x305x175mm
Machine net weight: 6KG
