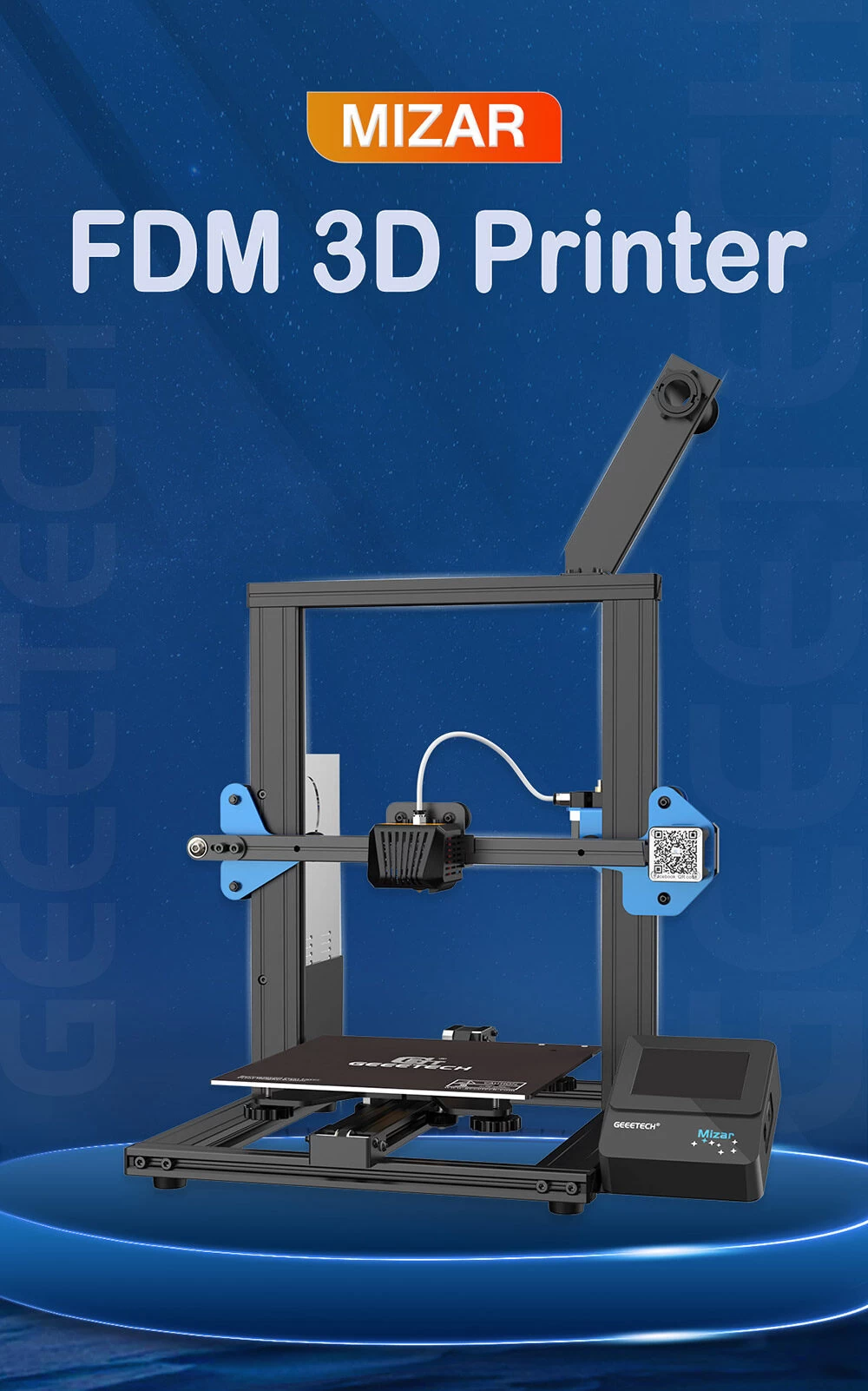

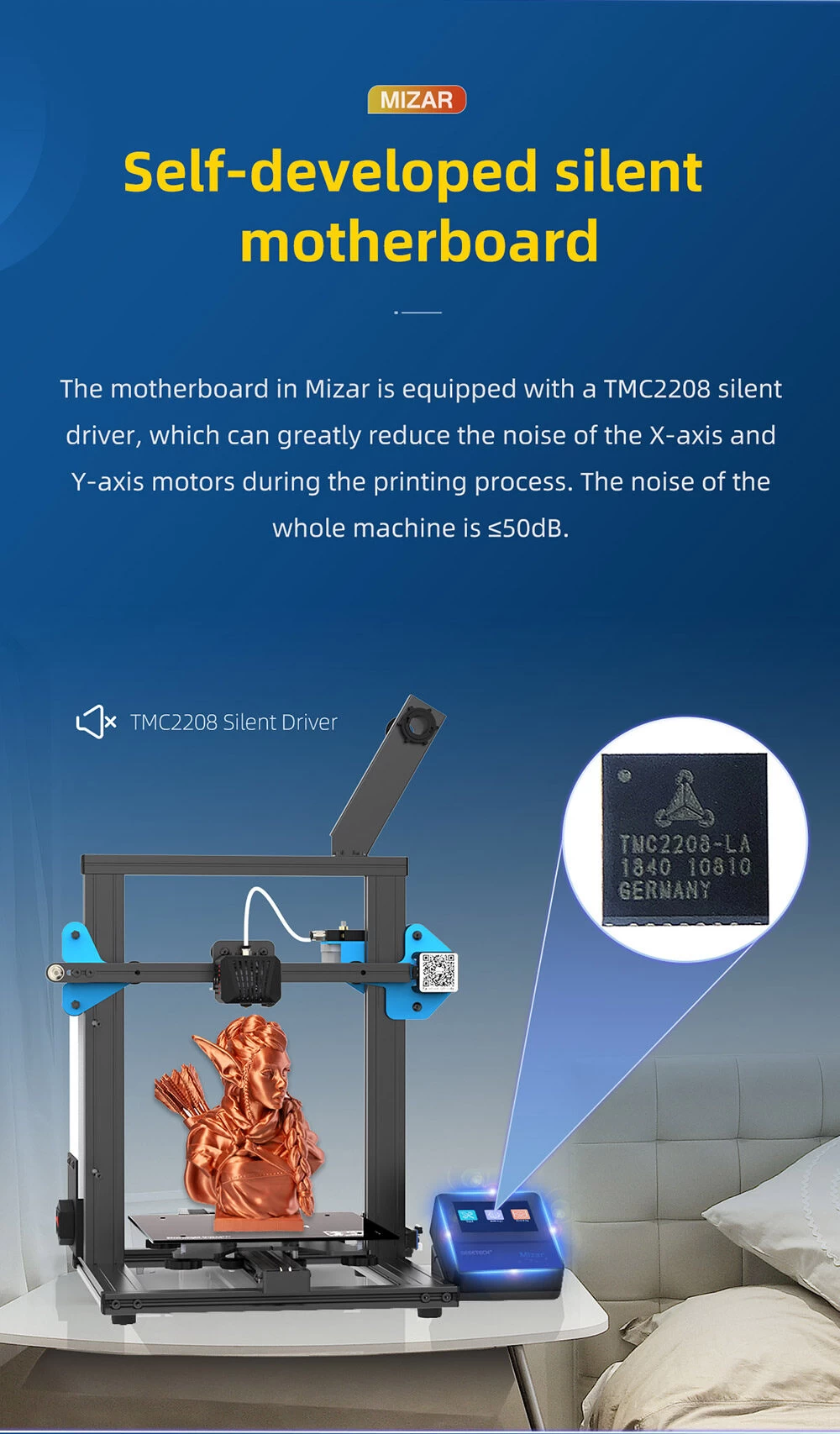

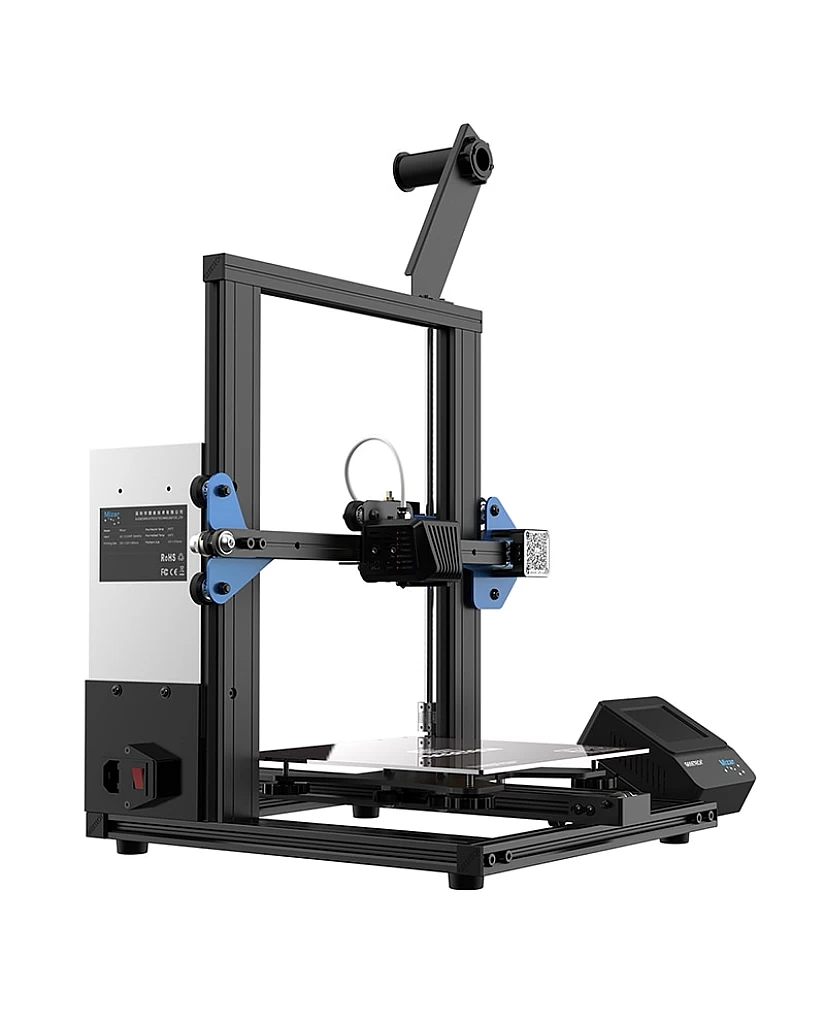

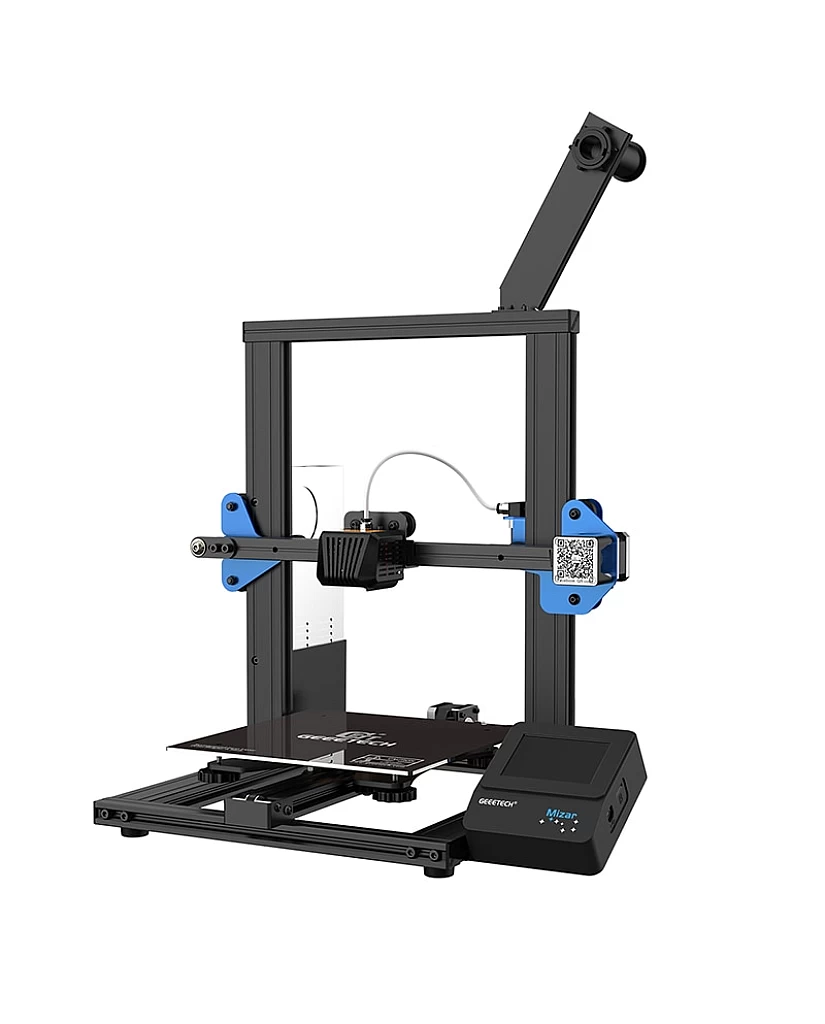

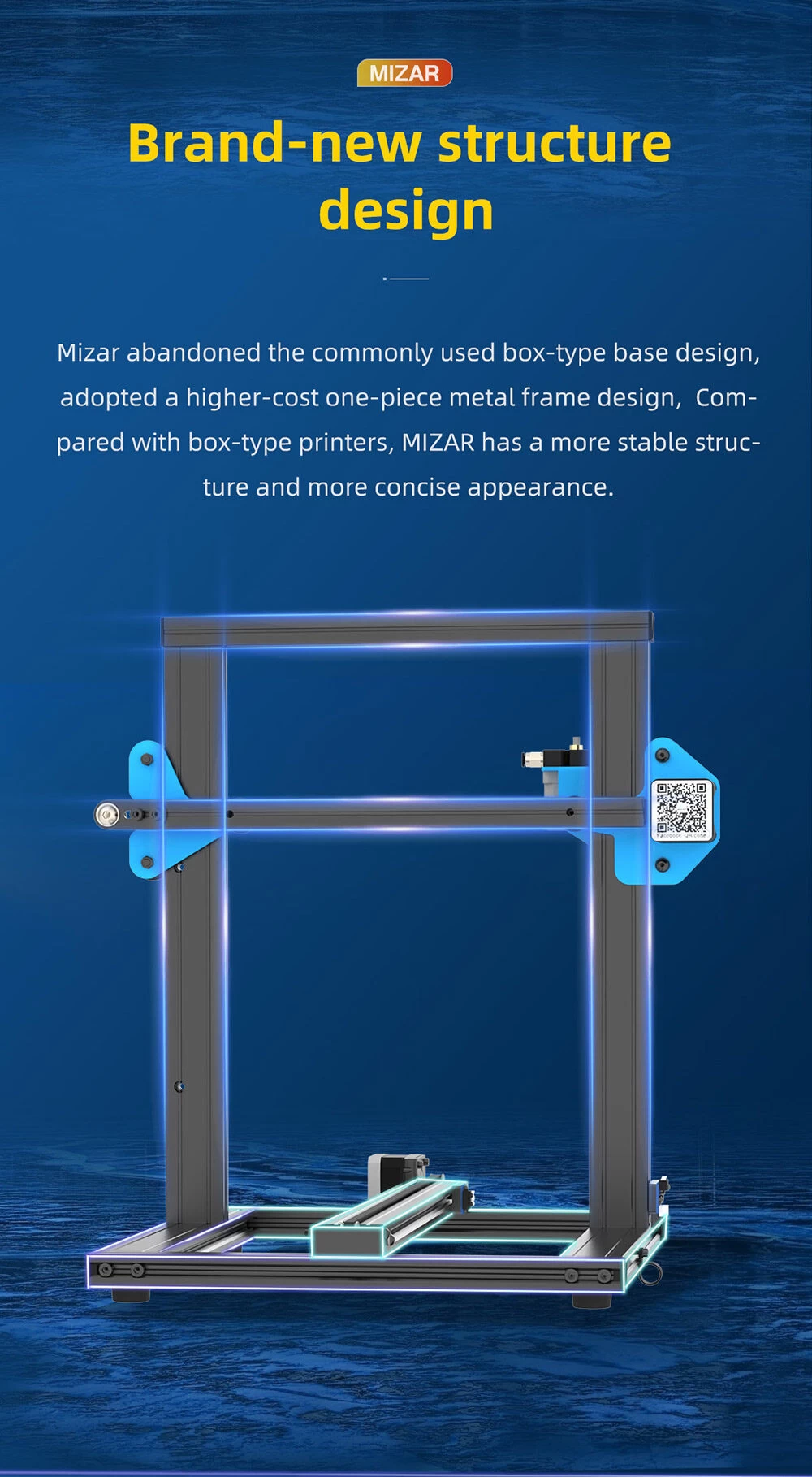

Mizar is the latest FDM 3D printer developed by GEEETECH. It adopts a new self-developed 32-bit MCU and TMC2208 silent driver, which has a higher basic frequency and stronger processing capability than Atmega 2560, largely reduced the noise during printing work. The main body adopts a new structure design, which is more stable than the box-type base. Centralized design of the motherboard and screen makes the machine more concise and sports higher reliability. Mizar carries a 3.5-inch color touch screen, re-designed a new user-friendly UI interface,aiming to provide amateurs and beginners pleasant and high quality 3D printing experience.
Geeetech Mizar is high precision DIY 3d printer with structure frame design, providing more possibility for your great ideas and designs. It is cost-effective and very easy to operate, highly recommended for amatures and beginners, ideal for education training , personalized customization, architectural design, cartoon toys , art culture etc.
Main features:
Warehouse | Estimated Shipping Time |
---|---|
US Warehouse: | 3 to 6 days |
EU Warehouse: | 3 to 6 days |
China Warehouse: | 8 to 15 days |
Warehouse | Deliverable Zones/Countries |
---|---|
US Warehouse: | United States lower 48 States |
EU Warehouse: | UK and EU Union Countries: Austria, Belgium, Bulgaria, Croatia, Republic of Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain and Sweden. |
China Warehouse: | United States(all states), Mexico, South America, Puerto Rico, Canada, Europe, Australia, Newzealand, Middle East, South East Asia, Africa, Russia, etc., |
AU Warehouse: | Australia |
Note: We ship the compatible plug based on your location. Please check the correct plug and voltage applicable to your country in the below chart. If you have specific plug type request, please contact us before placing an order.
Disclaimer:
Product Condition | |
Item Condition | New |
Manufacturer Warranty | 1 year |

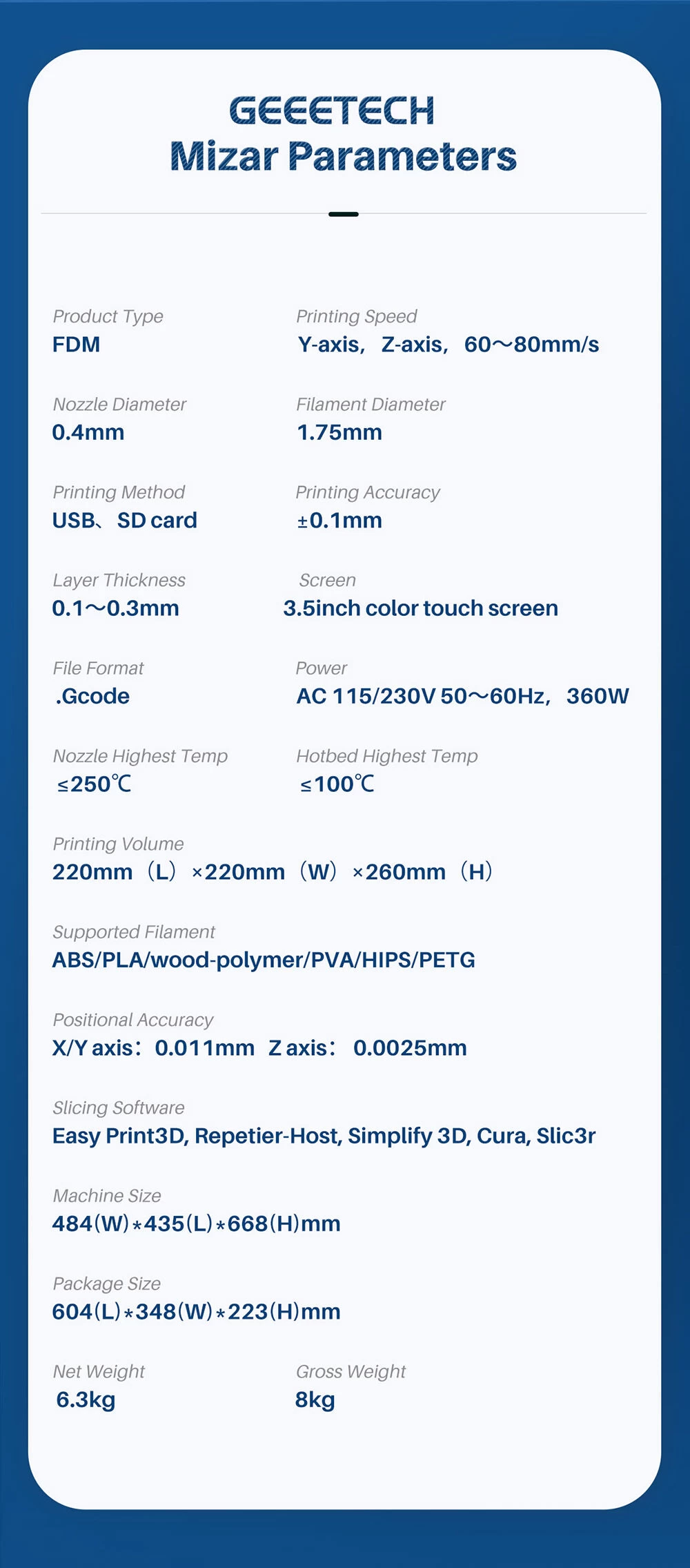

Printing Specifications | |
X Y Axis Position Accuracy | 0.011mm |
Z Axis Position Accuracy | 0.0025mm |
Print size ( X Y Z ) | 220*220*260mm |
Print Speed | 20~100mm/s,suggested: 50~60mm/s |
Layer Resolution | 50 microns |
Print Precision (Layer Thickness) | 0.05-0.4mm |
Filament Diameter | 1.75 mm |
Nozzle Diameter | 0.4 mm |
Filament Compatibility | PLA /ABS / PETG/wood-polymer/PVA/HIPS |
Mechanical Specifications | |
No.of Extruders | One |
Software Specifications | |
3D Printing Software | EasyPrint 3D, Repetier-Host, Simplify 3D, Cura, Slic3r, etc. |
Supported File Formats | STL, Gcode |
Operating System | Windows/Mac/Linux |
Temperature Specifications | |
Extruder Temperature | 250 Deg C |
Heating Bed Temperature | 100 Deg C |
Electrical Specifications | |
Power Requirements | Power supply: Input: 115V/230V Output: DC 24V, 360W |
Connectivity (Interface) | USB, Online, SD Card , Wifi (Optional) |
Electronics Specifications | |

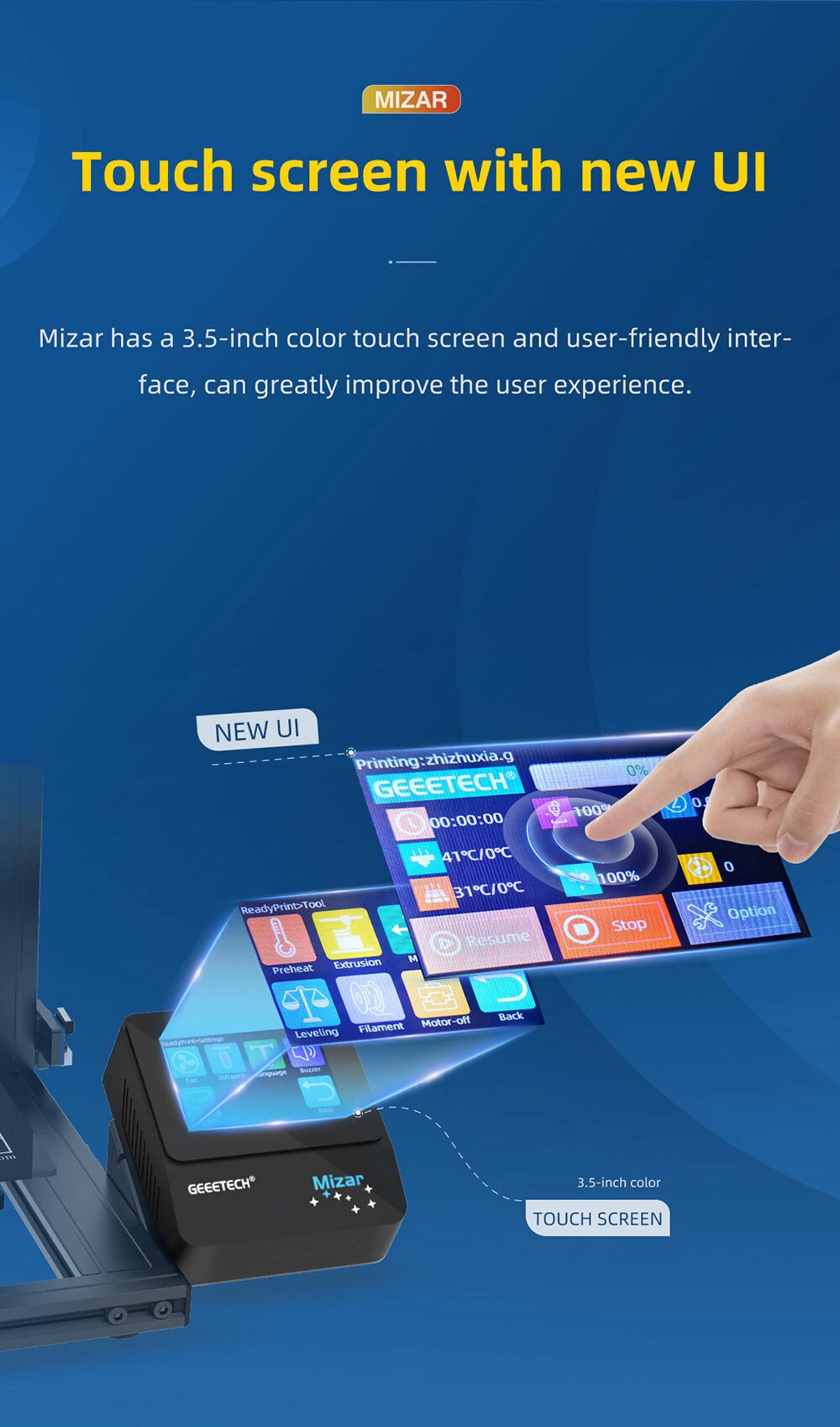

Display | 3.5 Inch Color Touch |
Shipping specifications | |
Machine weight | 6.3 kg |
Shipping box weight | 8 kg |
Shipping box dimensions | 604(L)*348(W)*223(H)mm |
