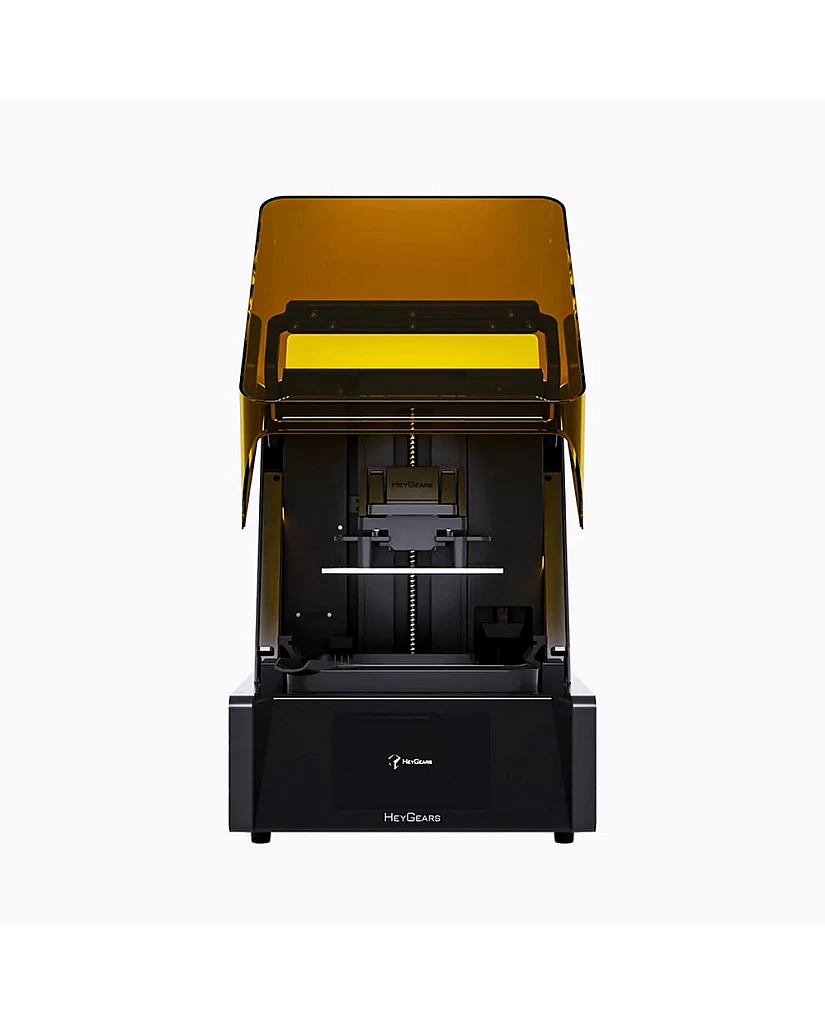

HeyGears UltraCraft Reflex 3D Printer

HeyGears UltraCraft Reflex 3D Printer

HeyGears UltraCraft Reflex Resin Printer – Precision Redefined

The HeyGears UltraCraft Reflex resin printer is a comprehensive solution designed for high-precision manufacturing. With an outstanding 33 μm XY resolution and intelligent printing strategies, it consistently delivers high-quality results. Its smart assistance system optimizes the printing workflow, while a range of high-performance materials supports even the most demanding applications. Engineered for efficiency and quality, this printer is ideal for professional environments.

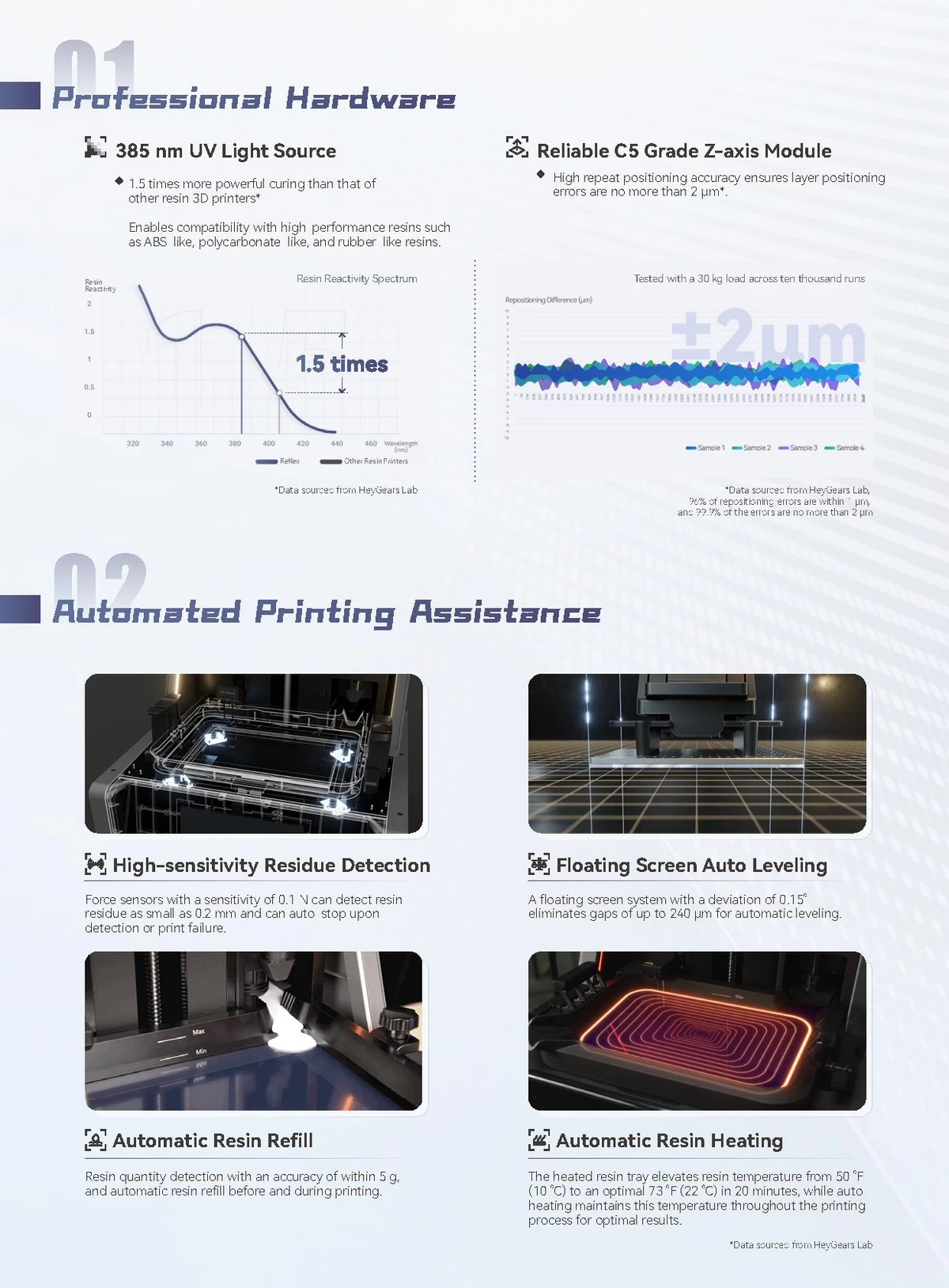

TrueUV Light Source
The UltraCraft Reflex features a variable UV wavelength light source, which automatically adjusts based on the resin type to deliver superior final results. With a cross-linking rate exceeding 60%, the system enhances polymerization, significantly boosting material performance.

Robust Hardware Design

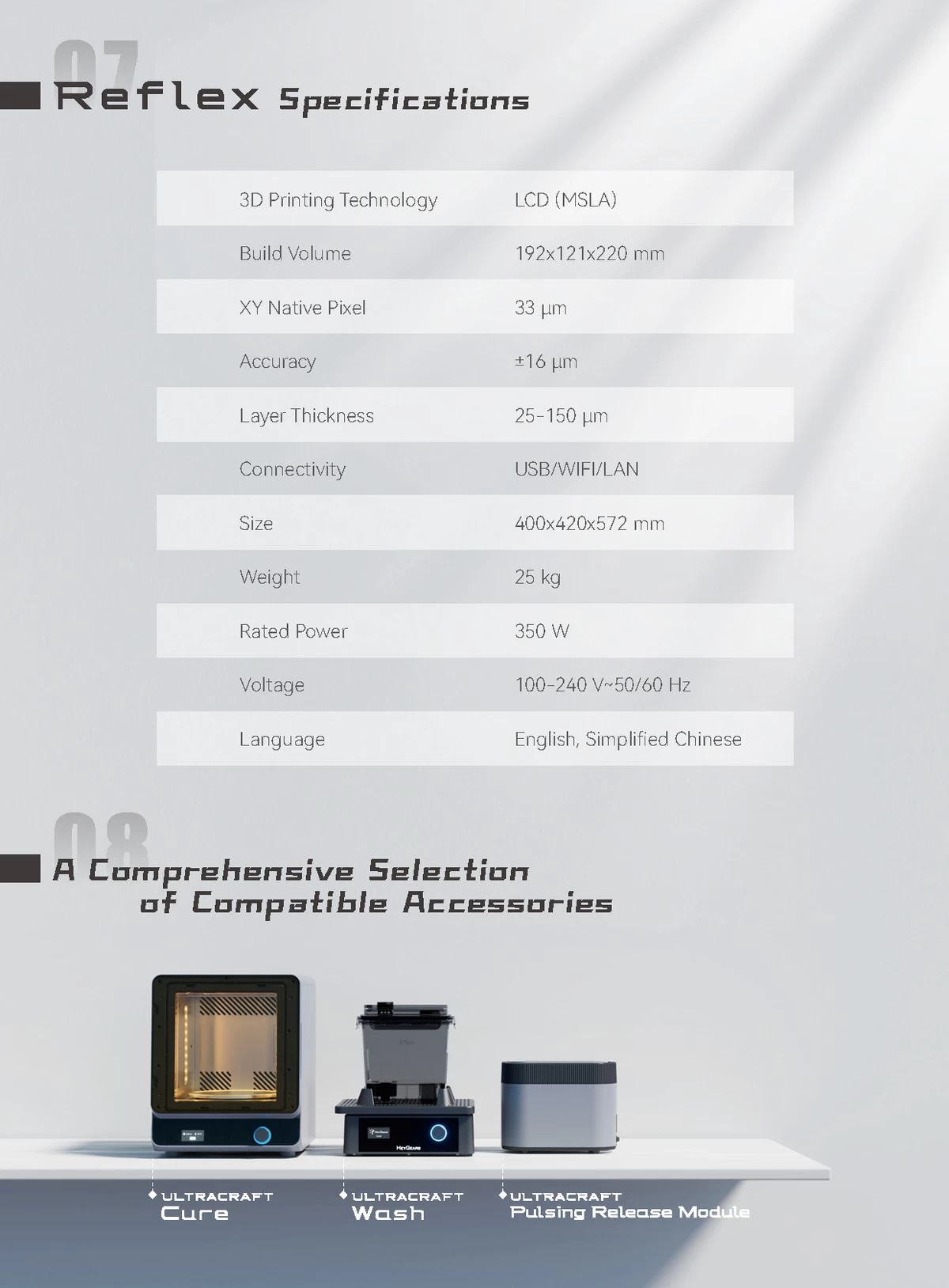

Equipped with a perforated steel build platform, the Reflex ensures durability and excellent adhesion. An industrial-grade Z-axis ball screw enables ±2 μm positioning accuracy with smooth, low-friction movements. The release film is rated for over 45,000 layers and is easily replaceable. A 6K monochrome screen (192 × 121 mm) with a resolution of 5760 × 3600 pixels ensures detailed printing. The printer utilizes a COB light source with a freeform lens, offering over 94% light uniformity and a draft angle under 2° for precise results.

Automatic Resin Refill System & Heated Tray
The Reflex is equipped with an automatic resin refill system and a heated tray. The system intelligently identifies the resin type, monitors fill levels, and automatically refills when necessary. It also maintains an optimal resin temperature, ensuring consistent and reliable print quality.

Advanced Intelligent Algorithms

The HeyGears UltraCraft Reflex integrates advanced algorithms to enhance print quality:

• 3D Anti-Aliasing: Smooths edges and layer transitions for a refined surface texture.
• WDR Fusion+: Optimizes exposure across layers for sharper details.
• PICK Intelligent Recognition: Separates the model from supports during exposure, simplifying removal and enhancing surface finish.

Consistent Excellence, Every Time
The printer ensures consistent results through a light uniformity calibration system and precise control of curing energy (±1%). This guarantees high-quality prints even during extended production runs.

Additional Features

• Real-time Peeling Force Management: Dynamically adjusts the peeling force per print to reduce part detachment, breakage, and layer visibility.
• User-Friendly Workflows: Designed for both beginners and professionals.
• Automatic Bed Leveling & Auto-Zeroing: Ensures precise setup every time.
• Release Film Lifespan Monitoring: Alerts users when the film needs replacement.
• Live Printing Status Monitoring: Continuously tracks the print process and notifies users of any potential issues.

What's In the Box（Overview）

1. Printer X1
2. Power Cord X1
3. Resin Tank X1
4. Build Platform X1
5. LCD Screen Tape X1
6. Spare Release Film X1
7. Spare Screws for Release Film X2
8. Rubber Gloves X2
9. Allen Wrench X3
10. Part Removal Tool X1
11. Scraper X10
12. Pliers X1
13. Simple Cleaning Box X1
14. Filter Paper X5
15. Residue Remover X1
16. Multifunctional Handle X1
