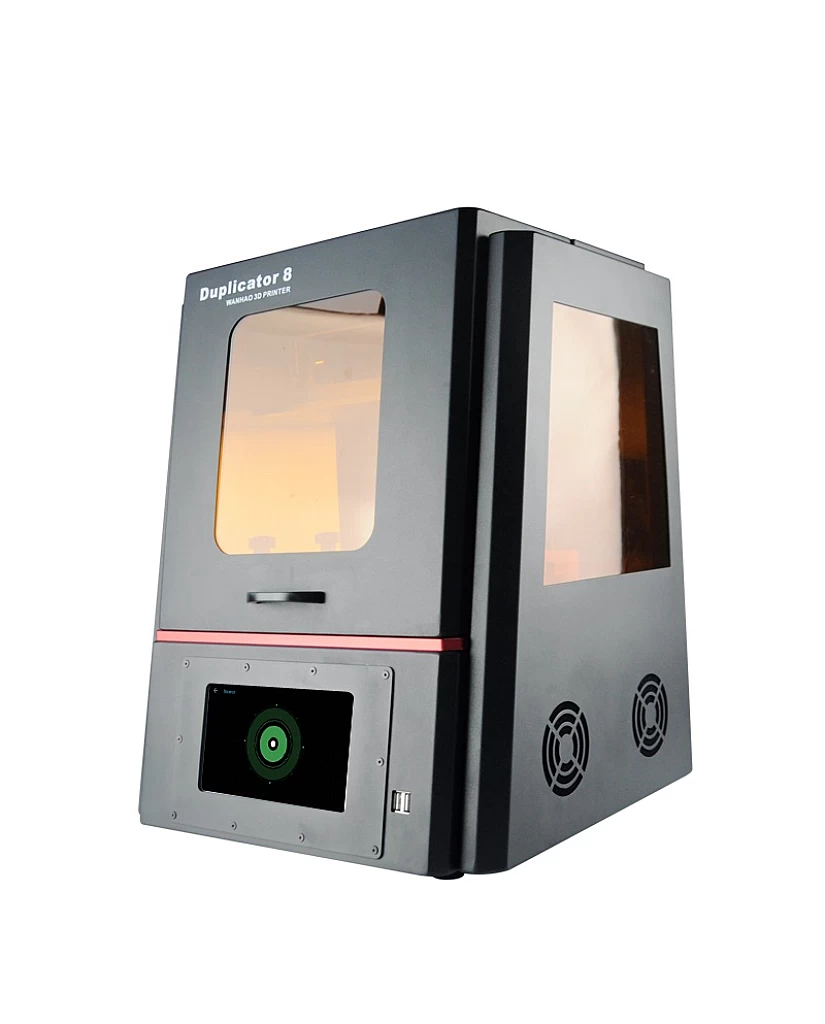

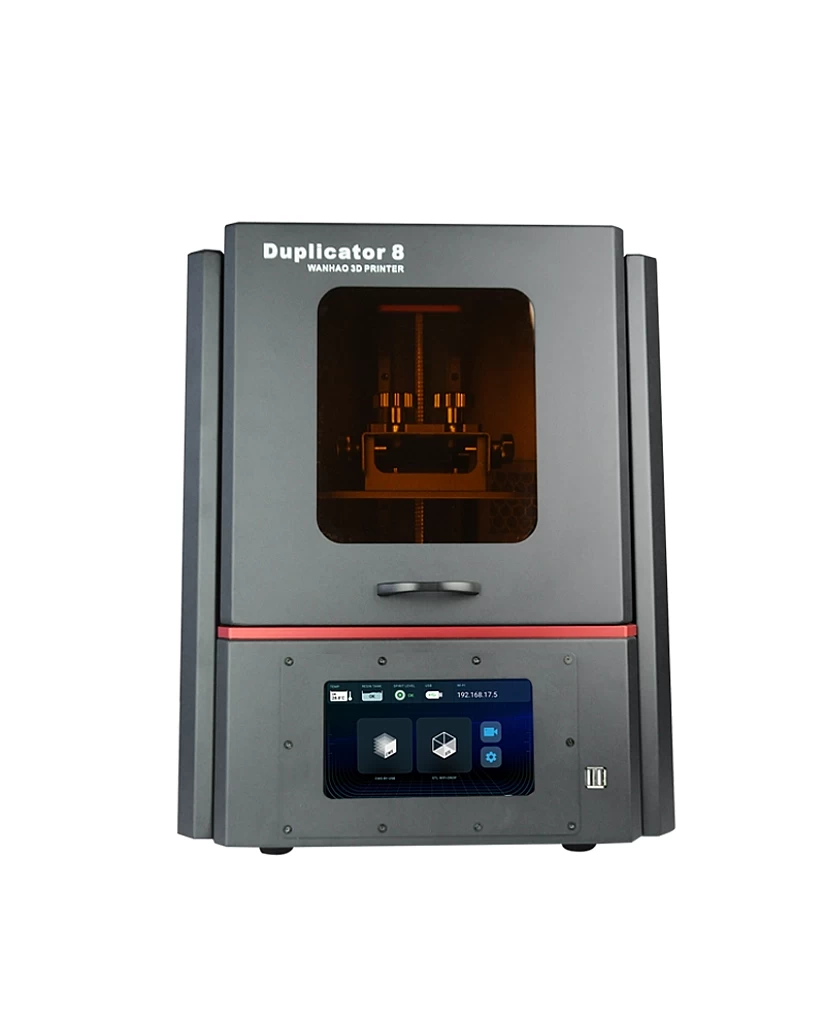

Wanhao Duplicator 8 DLP Resin 3D Printer
Product Code: 3DPO-426
Availability: In Stock
$925 USD
$1,999 USD
5
3
FREE Shipping on lower 48 US States and EU Union Orders above $100!
Main Features:
Technical Specifications | |
Machine Type | DLP (Digital Light Processing) LCD 3D Printer |
Hardware | |
Max printable area | 192*120*180mm |
Accuracy | X 0.075mm(75um) Y 0.075mm(75um) Z 0.010mm(10um) |
Printing speed | 10-40mm/hr |

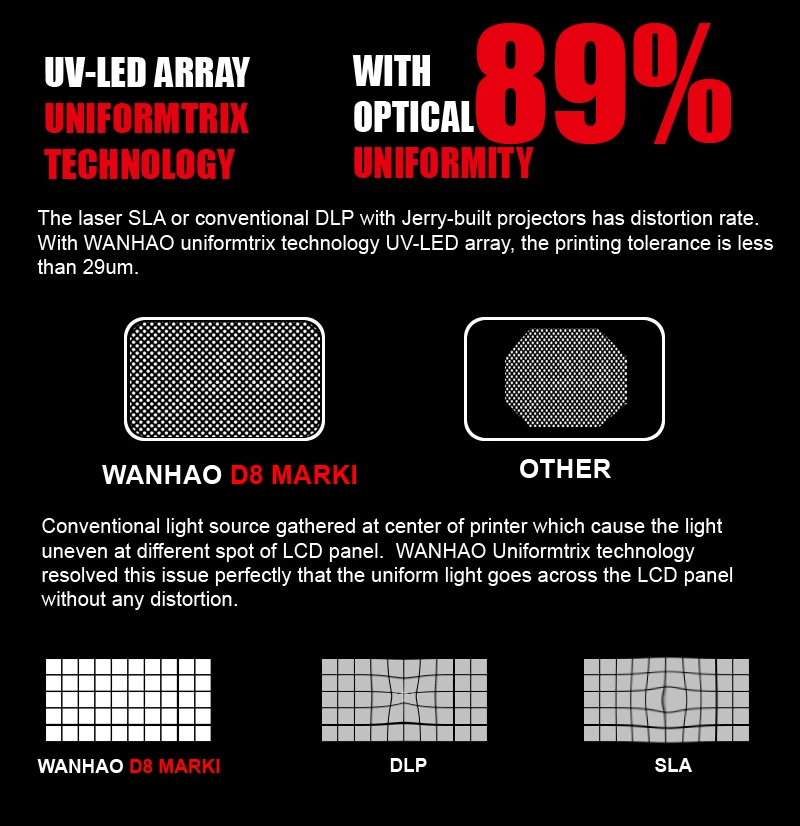

Optical Uniformity | UV LED array( Maxim) Design with 90% Optical Uniformity |
UV Type | 405 nm UV lamp, |
Packing size(cm) | 470*460*575mm |

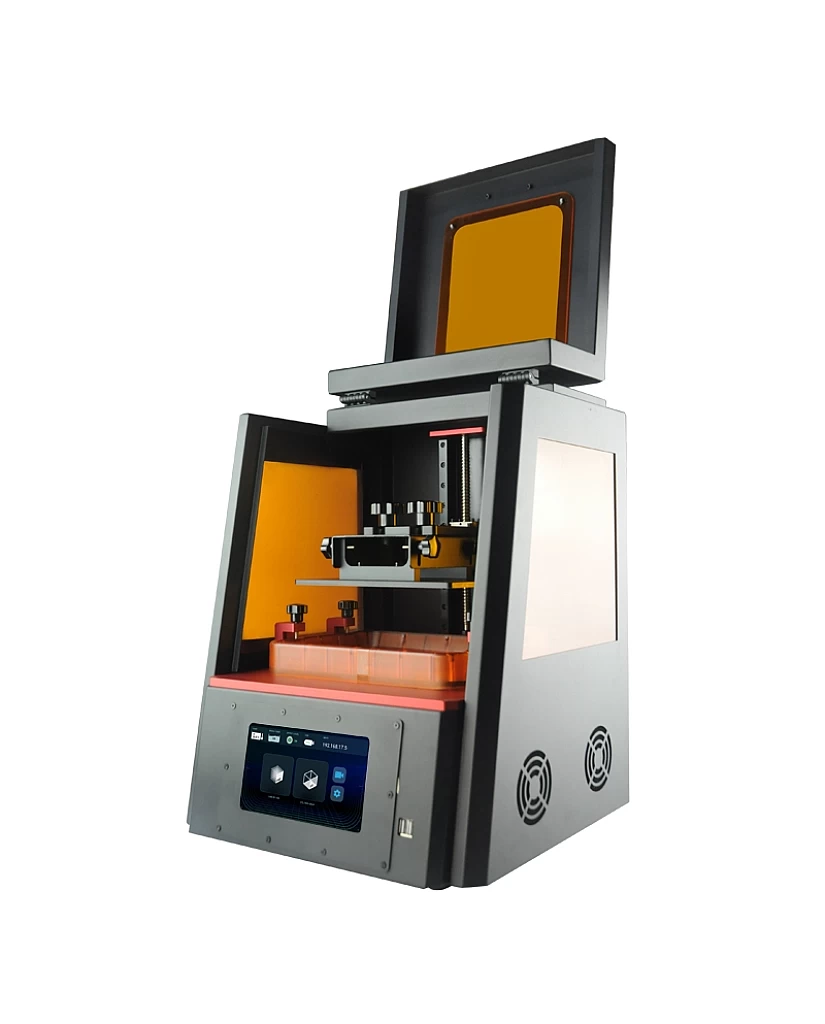

Enclosure Type | Tilt Hood with UV safe glass |
Net Weight(kg) | 22kg |
Gross Weight(kg) | 28kg |
Z axis movement | Reinforced double linear guide with Gap eliminated ball screw |

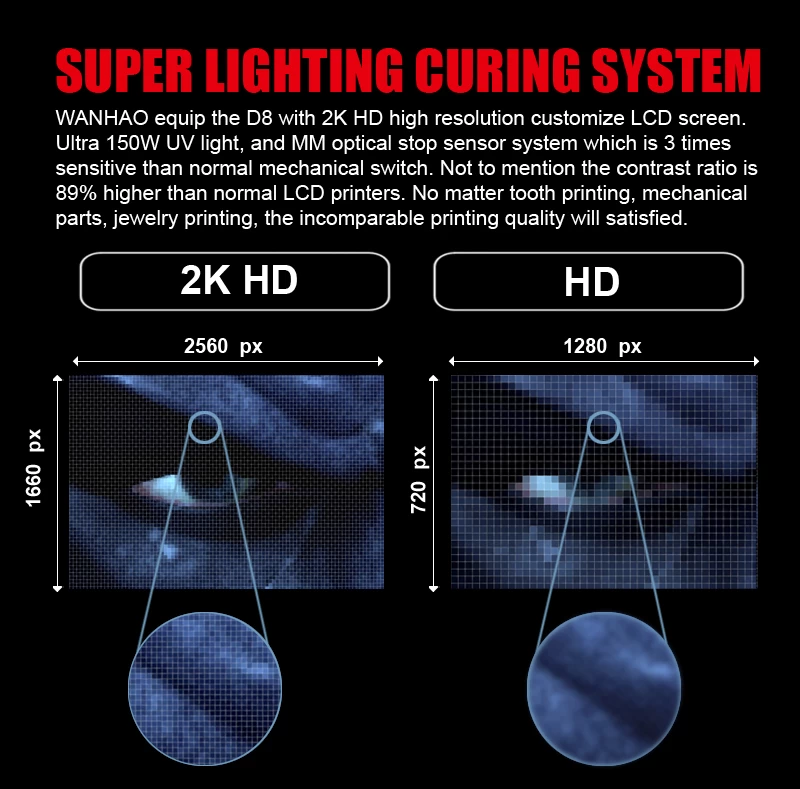

Screen | Customize 2K HD screen(Contrast Ratio increased by 80%. Peneration Rate increased by 10%) |
Light | UV LED Array design(150W, 405nm) |
End stop sensor | Optical Endstop(sensitive to 2um) |

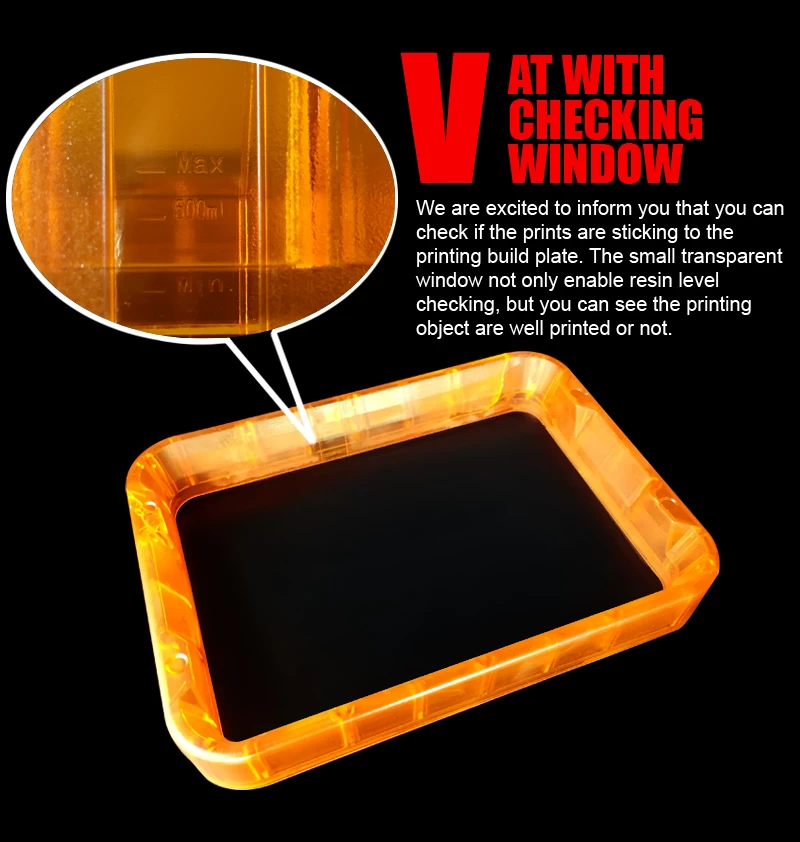

Vat | Teflon vat( 10 times life span than traditional PDMS) |
Software | Internal Wanhao Slicer |
Workmanship | Build with CNC machining parts and Aviation Grade aluminum alloy. |
Cooling system | Build in 6 silent super cooling fan |

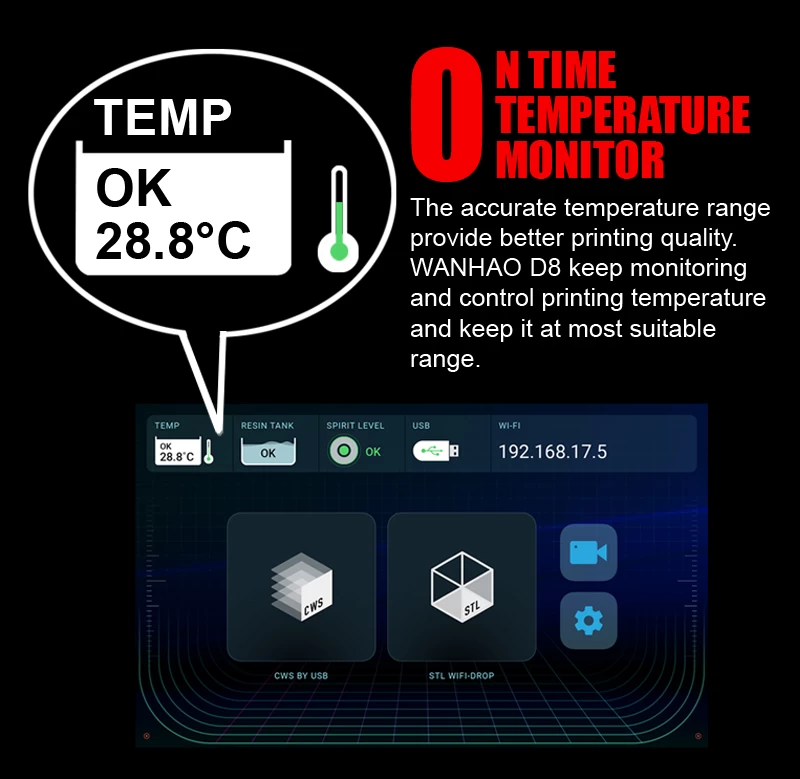

Temperature monitor | Build in temperature monitor system provide on time monitoring and warning notice. |

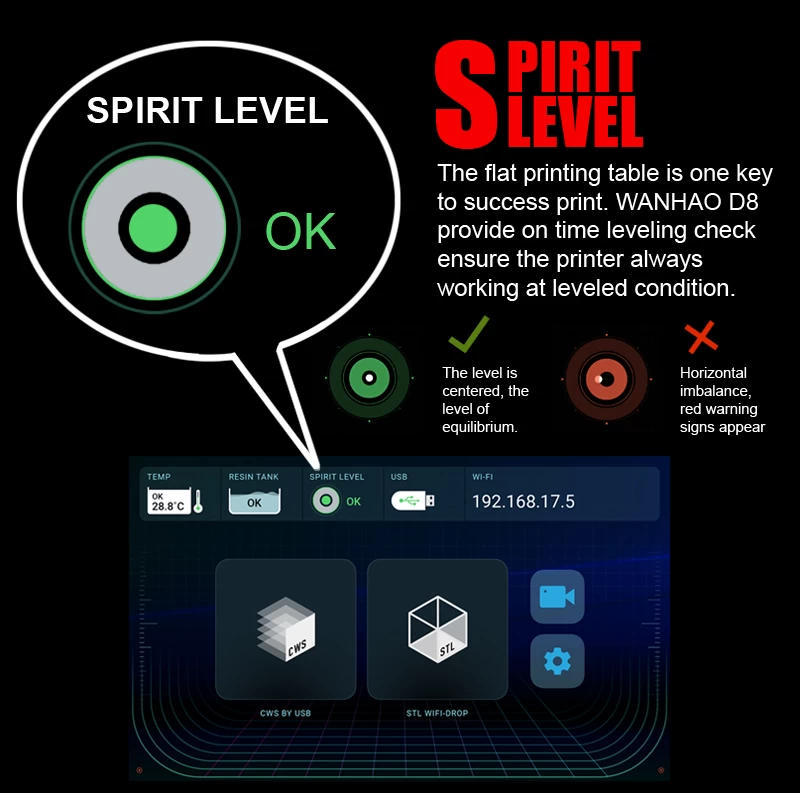

Leveling monitor system | Build in leveling monitor, leveling before you print |
Material supported | 405nm Resin |
Max printing speed | Up to 30mm/hour |
Software | |
Printing method | Wifi STL transfer file and print, Flash disk print |
Software | Build in WANHAO silcer, WANHAO D8 WORKSHOP, 3rd party software( Chitu, CW) |
Operation system | Windows/ Mac, WANHAO build in workshop |

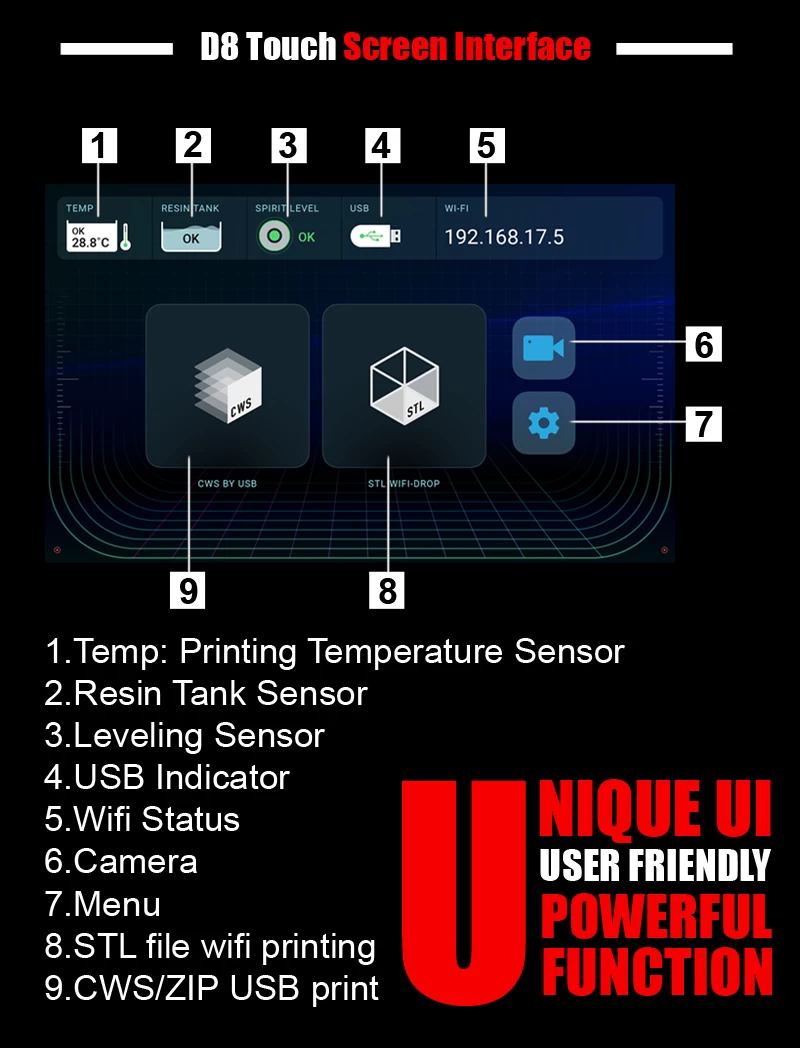

Printing status | 3D display at front LCD display. |
Camera | NO. |
Full video playlist here : https://www.youtube.com/watch?v=nU7kBFdhEY8&list=PLHt7X0sqT3MdZHcp6q9JbHmJMf1gpRf_r
Warehouse | Estimated Shipping Time |
---|---|
China Warehouse: | 7 to 14 days |
Product Condition | |
Item Condition | New |
Manufacturer Warranty | One Year |
Technical Specifications | |
Technology | SLA DLP 3D Printer |
Accuracy | X 0.075mm Y 0.075mm Z 0.035-0.1mm |
Printing Specifications | |
Layer Thickness | 35-100 micron |
Print size ( X Y Z ) | 192*120*180mm |
Filament Compatibility | 405nm Resin |
Software Specifications | |
3D Printing Software | Internal Wanhao Slicer |
Supported File Formats | .STL |
Electrical Specifications | |
Light Source | 405 nm UV lamp, DLP |
Power Requirements | 110 AND 250V(Auto Switch), 50/60Hz, 4.0A (input) |
Shipping specifications | |
Machine weight | 22 kg |
Shipping box weight | 28 kg |
Shipping box dimensions | 470*460*575mm |
Shipping Location | China |
Lead Time (Processing/Handling Time) | 5 to 7 Business days |
