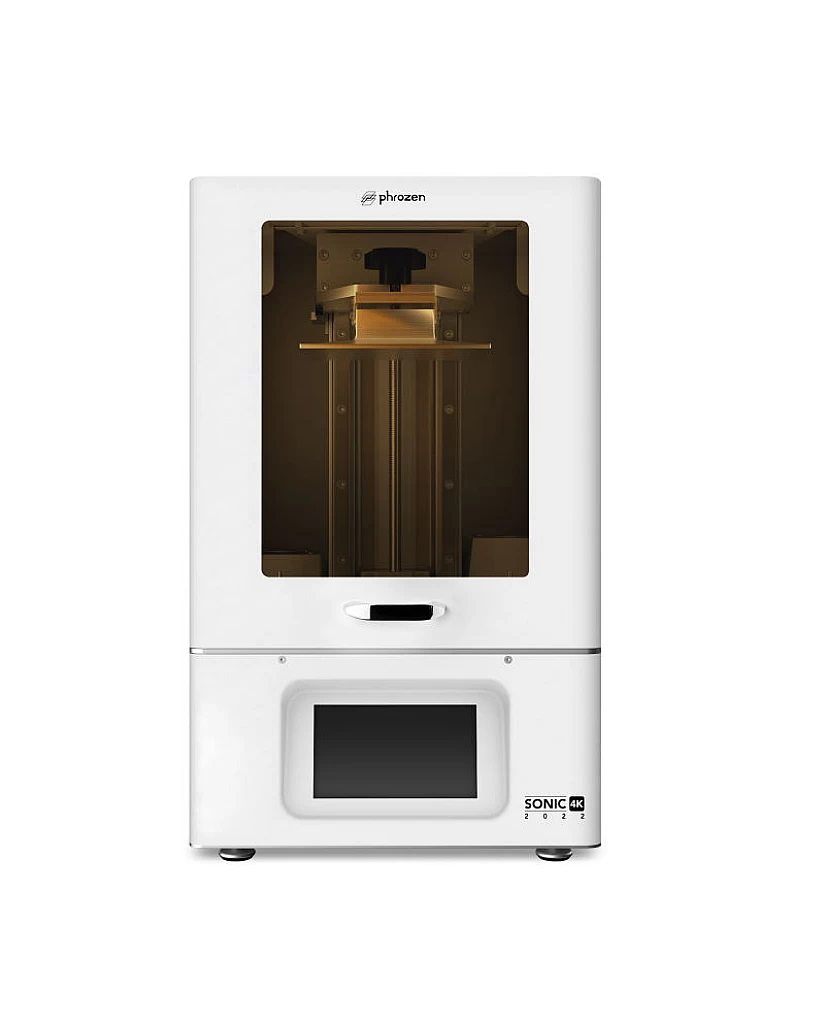

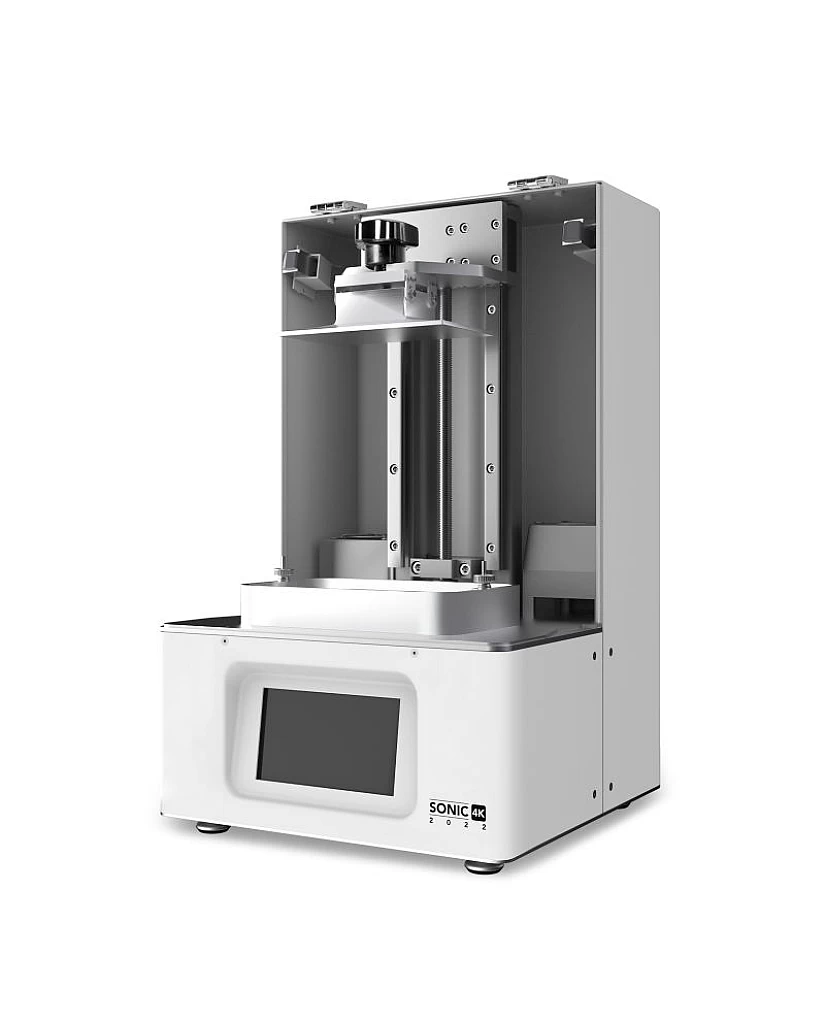

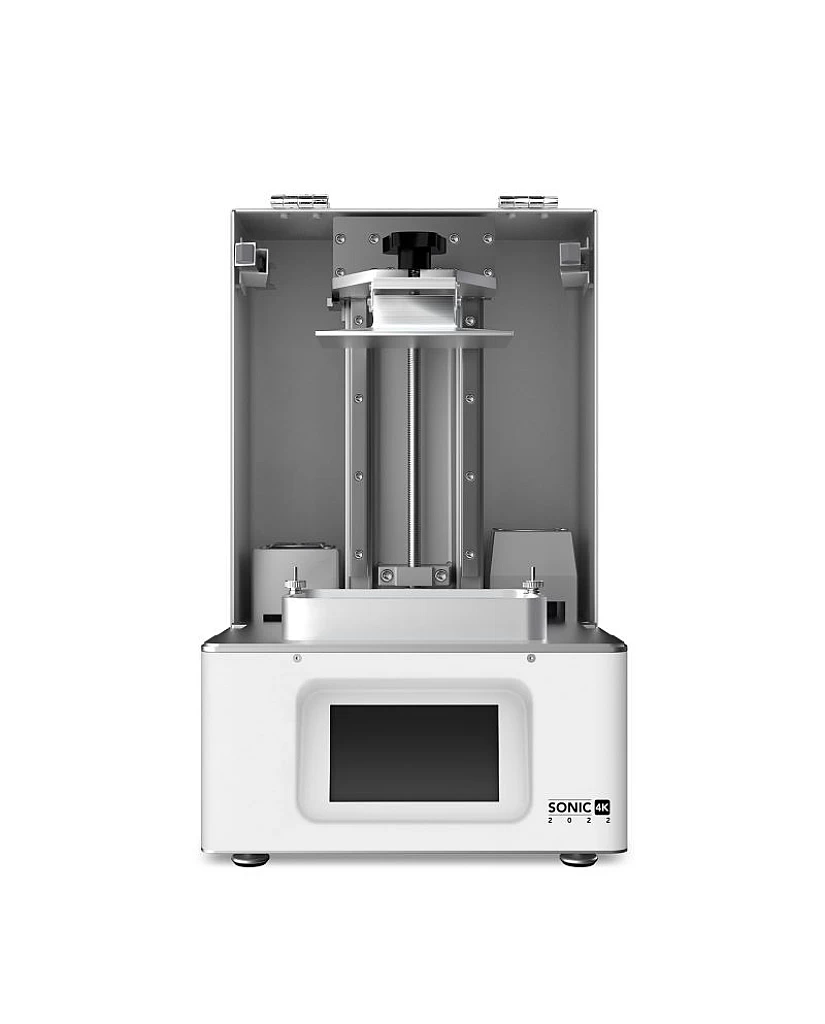

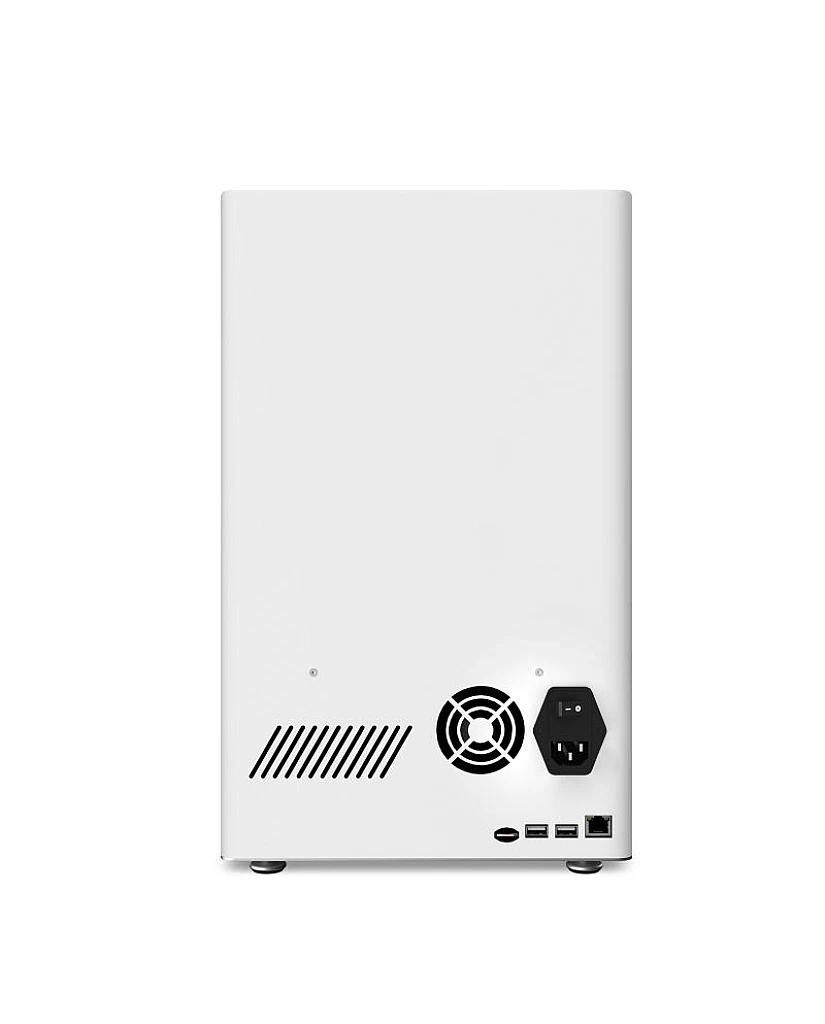

Phrozen Sonic 4K LCD Resin 3D Printer
Specially designed for the dental industry, the Sonic 4K offers built-in parameters for dental applications that work to print out all the dental models you need with high precision and accuracy.
With a super-high resolution of 722 PPI, this printer prints at 35µm, and offers an ample printing space of 6.1,”. You’ll also be able to print one layer in only one second, which is twice as fast as the Sonic Mini 4K!
The printer comes with built-in software to assist you with premium support & editing, which helps to process 3D printing files efficiently. The Sonic 4K also uses a super-stable Z-axis to ensure that users have a quiet and smooth printing experience.
- 4K with 6.1” Printing Area: 3840 x 2160 ultra-high-definition. Prints at 35µm with 722 PPI, the highest PPI ever, with a large printing area of 6.1”
- Monochrome LCD Screen: Prints up to 5 times faster than traditional 3D printers, taking only one second to print a layer, twice as fast as the Sonic Mini 4K. 2000 working hours guaranteed for all LCD screens; we offer a free 3-month warranty for all LCDs.
- Solid Design: made with Aluminum & designed to ensure a quiet and smooth printing process
- Supports Remote File Transmissions: Connects to your router directly via the ethernet, allowing you to send over your file remotely and start printing immediately
- FormWare Phrozen Edition: Sonic 4K comes with 3D printing processing software that empowers designers to work efficiently by providing automatic error detection and printing multi-floor structures to maximize print output. Premium support and editing also provided
- Built-In Printing Parameters for Dental Application: Works with resin print settings from NextDent, Dreve, KeyStone, HarzLab, Enlighten & Dentona. Also compatible with resins of 385nm & 405nm
- System: Phrozen OS
- Operation: 5in Touch Panel
- Slicer Software: ChiTu Box V1.6.5
- Connectivity: USB | Ethernet
- Technology: Resin 3D Printer - LCD Type
- Light Source: 405nm ParaLED Matrix 3.0
- XY Resolution: 35 µm
- Layer Thickness: 0.01-0.30mm
- Printing Speed: 90mm/ hour
- Power Requirement: AC100-240V~50/60Hz
- Printer Size: L9 x W10.2 x H18.1 in
- Print Volume: L5.2 x W2.9 x H7.8 in
- Printer Weight: 14.5kg
Phrozen 3D Pro Slicer
- Includes a free license of Phrozen 3D Pro Slicer by FormWare.
- 1 year warranty
- Excluded from warranty are consumable parts: LCD display, Buildplate, FEP Film, SD Card and ParaLED
Note: opening the machine without authorization voids warranty
About Estimated Lead/Shipping Time
||Estimated Shipping Time
||4 to 6 days
About Prices and Import Taxes
Our prices do not include Import Duty/Tariff and GST/VAT applicable in your country. This item ships from Taiwan where you may subject to pay additional ship costs and import taxes. Please contact your local customs office to know about your import taxes tariffs.If your import taxes are high, please contact us
. We will help you.
|X Y Axis Position Accuracy
|Z Axis Position Accuracy
||10 – 100 µm
|Print size ( X Y Z )
||130 * 73 * 198 mm
||405nm ParaLED Matrix 3.0
||LED Power: 60W
Power Input :100-240 VAC – 50/60 HZ
||5in Touch Panel
|Z Axis Drive
||Dual Linear Rail with Ball Screw
||22 * 26 * 45 cm
