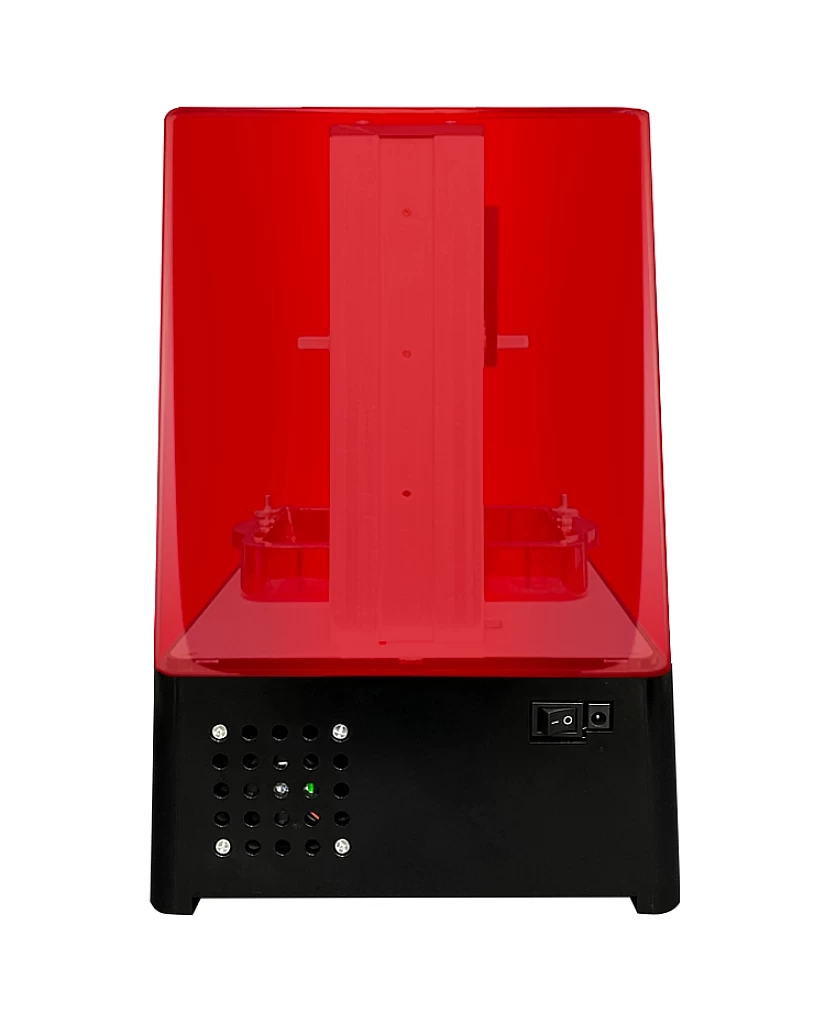

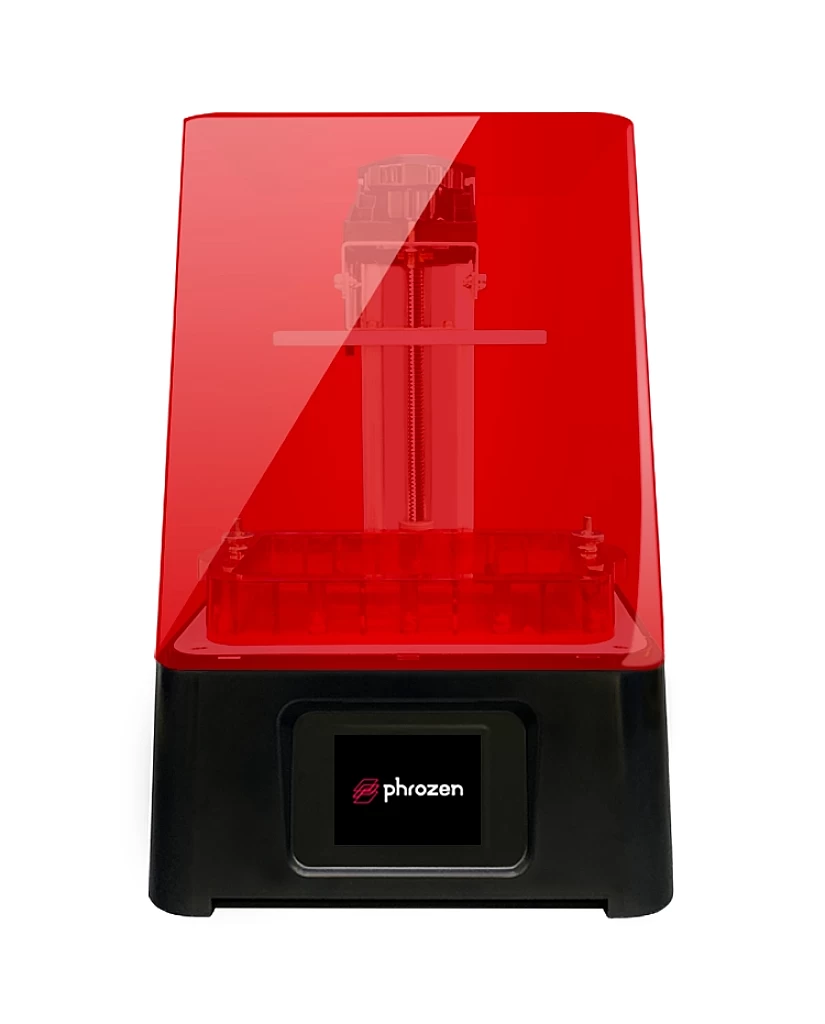

Phrozen Sonic Mini 5.5” Starter LCD Resin 3D Printer
Main Features:
- Upgraded metal VATNew!
- Upto four times faster 3D printing
- The Phrozen Sonic mini is equipped with a monochrome LCD, tailor made for 3D printing.
- Monochrome LCD’s have a much longer expected life time then RGB LCD’s you find in competitors 3D printers. (upto 2000 hour)
- Monochrome LCD’s are stronger and more pressure and heat resistant then RGB LCD’s. Meaning less downtime, costs replacing LCDs and better reliability
- Monochrome LCD’s are much more transparent. More UV light passes resulting in faster exposure times. (Upto 1s layer for 50 micron)
- The ParaLED module is a perfect design for mono-LCD. Featuring higher efficiency and better thermal dissipation.
- The Phrozen Sonic is compatible with most 405nm LCD, DLP and even SLA UV resins. Making this machine extremely flexible and opening up many more interesting applications with this printer.
- The perfect machine for starters, hobbyist and experimenting.
- UV Engine Paraled Lite with best optical uniformity, much better than conventional singel COB LED
Open resin system compatible with most of commercially available LCD, DLP and SLA UV resins (405nm)
- Touchscreen control and print from USB. No need to connect to computer all the time
- High-speed printing
Technical Specification:
- Buildsize: 120 * 68 * 130 mm
- LCD: Monochrome 5.5″ HD
- XY Pixels: 1920*1080 pixels
- XY Resolution: 62 µm
- LED Array: ParaLED V2 Lite
- Print Speed: Upto 50mm/hour
- Ports: USB, microSD
- Printer OS: Phrozen OS
- Touchscreen: 2.8″ colour
- Slicer: Chitubox
- Z Resolution: 10 – 100 µm
- Z-axis: Single Linear Rail with Lead Screw
- Power Input :100-240 VAC – 50/60 HZ
- Max power consumption: 40W
- Printer size: 25 * 25 * 33cm
- Printer weight: 4.5Kg
Packing List:
- Phrozen Sonic Mini 3D Printer
- Metal vat with fep film pre-mounted
- Buildplate
- AC Power cord
- Printing Kit (Gloves, Wiper/Scraper, Funnel, Etc.)
Note:
- No UV resin included. Don’t forget to add UV resin to your order to get started immediately.
- This bundle doesn’t include cleaning, curing, safety and post-processing equipment. Please check accessoires to get all needed items to start 3D printing.
Warranty:
- 1 year direct manufacturer warranty
- Excluded from warranty are consumable parts: LCD display, Buildplate, FEP Film, SD Card and ParaLED
Note: opening the machine without authorization voids warranty

About Estimated Lead/Shipping Time
Warehouse |
Estimated Shipping Time |
US Warehouse: |
4 to 6 days |
Taiwan Warehouse: |
8 to 15 days |
About import taxes and Warehouse stock availability
Please note that our prices do not include Import Duty/Tariff and GST/VAT applicable in your country. If your item ships from overseas warehouses, you may get free import tax benefits or else you have to pay your local import taxes as per your import law.
Warehouse |
Deliverable Countries |
US Warehouse: |
United States lower 48 States |
Taiwan Warehouse: |
United States(all states including Alaska), Puerto Rico, Canada, Australia, Mexico, South America, Newzealand, Middle East, South East Asia, Africa, Russia, Norway, Serbia, etc., |
Product Condition |
Item Condition |
New |
Technical Specifications |
Detail Resolution |
62 µm |
Printing Specifications |
X Y Axis Position Accuracy |
62 µm |
Z Axis Position Accuracy |
10 – 100 µm |
Print size ( X Y Z ) |
120 * 68 * 130 mm |
Print Speed |
Upto 60mm/hour |
Software Specifications |
Operating System |
Phrozen OS |
Electrical Specifications |
Light Source |
ParaLed V2.0 |
Power Requirements |
LED Power: 40W
Power Input :100-240 VAC – 50/60 HZ |
Connectivity (Interface) |
Ethernet, WiFi |
Electronics Specifications |
Display |
5.5″ Full HD 1920*1080 pixels |
Z Axis Drive |
Dual Linear Rail with Ball Screw |
Shipping specifications |
Machine weight |
4.5 Kg |
Machine Dimensions |
25 * 25 * 33 cm |
Shipping Location |
Taiwan |
Lead Time (Processing/Handling Time) |
4 to 6 weeks. |
